Name: Inlet Manifold (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)
Rating: 4.8 (1 reviews)

Inlet Manifold (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V)...

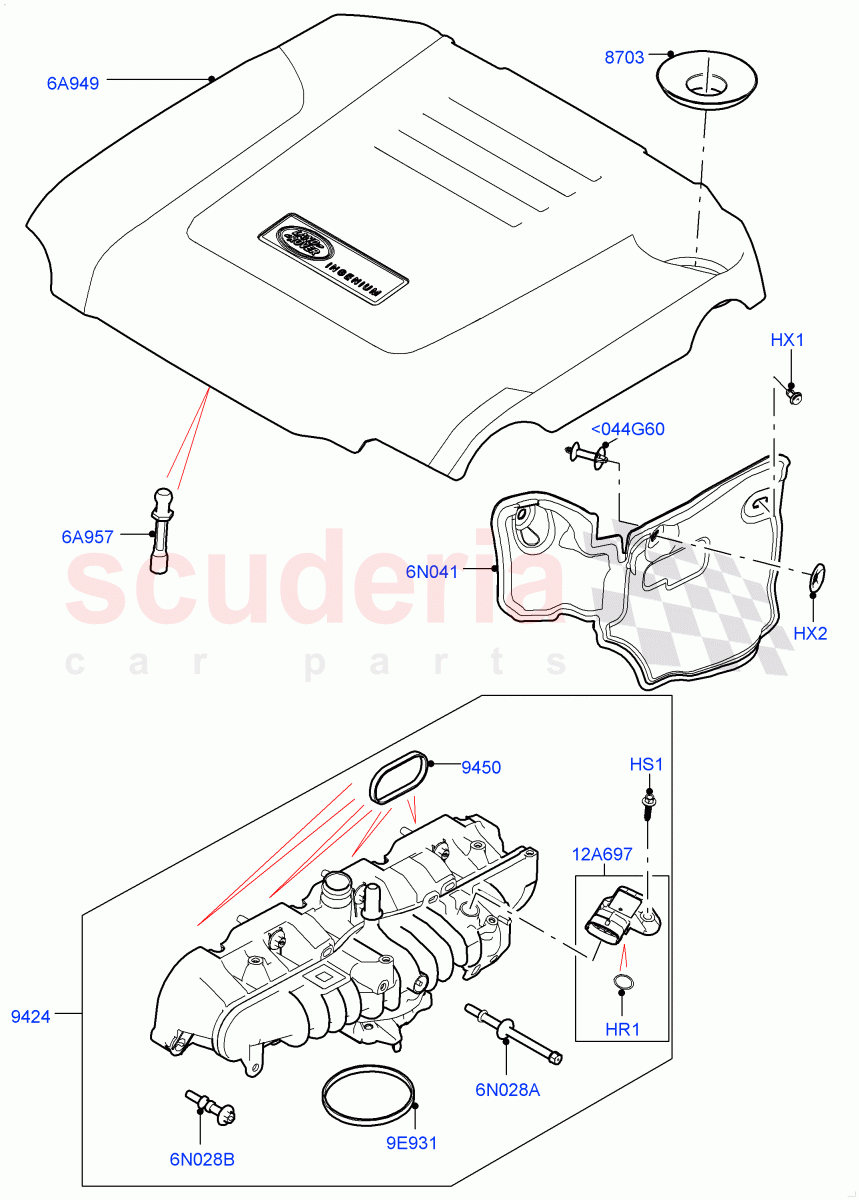

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132382	WASHER - DRAIN PLUG	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$12.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106371	INLET MANIFOLD WITH INTERCOOLER	$729.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	$11.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100469	COVER - ENGINE TOP	$307.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082528	STUD - BALL	$7.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100360	INSULATOR - CYLINDER HEAD	$55.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	$134.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091773	BOLT - SPECIAL	$6.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$4.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106169	PIN - TRIM	$1.07	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<044G60	LR106169	PIN - TRIM	LR106169 PIN - TRIM Insulator, Pin 6.5 X 0.8 - 2 + 5 X 0.8 / From: JA000001	$1.07	1
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor / From: JA000001 IN STOCK	$4.47	1
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor / From: JA000001	$0.59	1
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: JA000001	$2.92	2
HX2	LR132382	WASHER - DRAIN PLUG	LR132382 WASHER - DRAIN PLUG 25 x 7, Push On / From: JA000001	$1.24	1
6A949	LR100469	COVER - ENGINE TOP	LR100469 COVER - ENGINE TOP Engine / From: JA000001	$307.48	1
6A957	LR082528	STUD - BALL IN STOCK	LR082528 STUD - BALL Ball Stud, Engine Cover / From: JA000001 IN STOCK	$7.97	3
6N028A	LR091773	BOLT - SPECIAL	LR091773 BOLT - SPECIAL M6 x 97MM, Manifold To Cylinder Head, Special Bolt / From: JA000001	$6.65	1
6N028B	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: JA000001	$4.84	6
6N041	LR100360	INSULATOR - CYLINDER HEAD	LR100360 INSULATOR - CYLINDER HEAD LH Side / From: JA000001	$55.67	1
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake / From: JA000001	$15.25	1
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE Pressure / From: JA000001	$134.03	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: JA000001	$12.79	1
9424	LR106371	INLET MANIFOLD WITH INTERCOOLER	LR106371 INLET MANIFOLD WITH INTERCOOLER From: JA000001	$729.24	1
9450	LR091766	GASKET - INTAKE MANIFOLD IN STOCK	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold / From: JA000001 IN STOCK	$11.79	4
