Air Suspension Controls/Electrics ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Air Suspension Controls/Electrics ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR020475 PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR020477 PIN Enquire To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP500190 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP501010 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR141774 SENSOR - ACCELERATION Enquire To Order
Photo Part No Description Price (each) Stock
LR144905 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR090686 PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR141768 SENSOR - AIR SUSPENSION Enquire To Order
Photo Part No Description Price (each) Stock
LR141762 SENSOR - AIR SUSPENSION Enquire To Order
Photo Part No Description Price (each) Stock
LR141766 SENSOR - AIR SUSPENSION Enquire To Order
Photo Part No Description Price (each) Stock
LR141761 SENSOR - AIR SUSPENSION Enquire To Order
View All

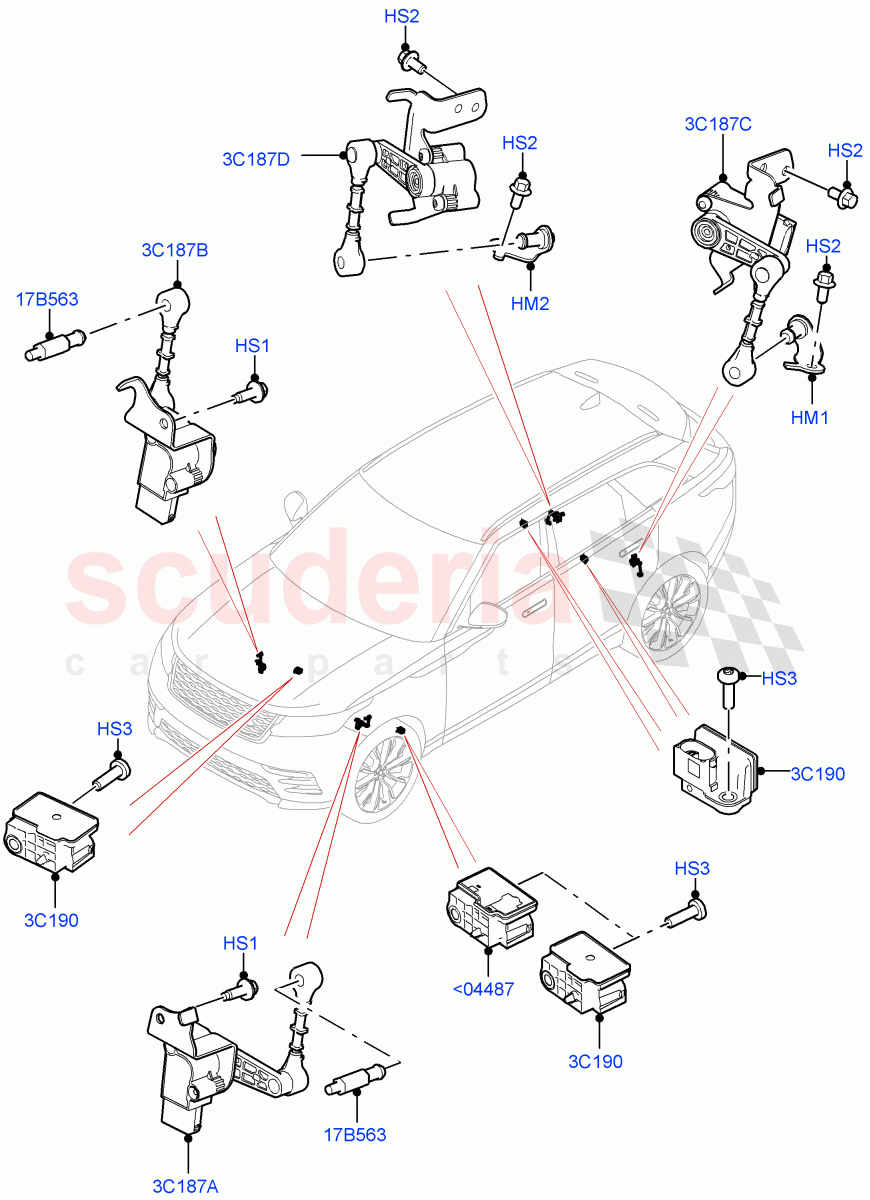

Air Suspension Controls/Electrics ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<04487 LR144905
PLUG - BLANKING
Less Active Road Noise Cancellation / From: MA000001 		- 1 Enquire
HM1 LR020475
PIN
With Continuous Variable Damping / LH, Rear / From: MA000001 		- 1 Enquire
HM2 LR020477
PIN
RH, Rear / From: MA000001 		- 1 Enquire
HS1 RYG500190
SCREW
Hexagonal Head, M6 X 16MM / From: MA000001 		- 2 Enquire
HS2 RYP500190
SCREW
Hexagonal Head, M6 x 12MM / From: MA000001 		- 6 Enquire
HS3 RYP501010
SCREW
M6 X 20MM, Torx / From: MA000001 		- 4 Enquire
3C187A LR141768
SENSOR - AIR SUSPENSION
With Continuous Variable Damping / LH, Front / From: MA000001 		- 1 Enquire
3C187B LR141762
SENSOR - AIR SUSPENSION
RH, Front / From: MA000001 		- 1 Enquire
3C187C LR141766
SENSOR - AIR SUSPENSION
With Continuous Variable Damping / LH, Rear / From: MA000001 		- 1 Enquire
3C187D LR141761
SENSOR - AIR SUSPENSION
RH, Rear / From: MA000001 		- 1 Enquire
3C190 LR141774
SENSOR - ACCELERATION
ARNC GEN 1 / From: MA000001 		- 4 Enquire
17B563 LR090686
PIN
From: MA000001 		- 2 Enquire
