Name: Fuel Lines (5.0L P AJ133 DOHC CDA S/C Enhanced, Pet Tank W/O Leak Det - Std Filter) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

View All

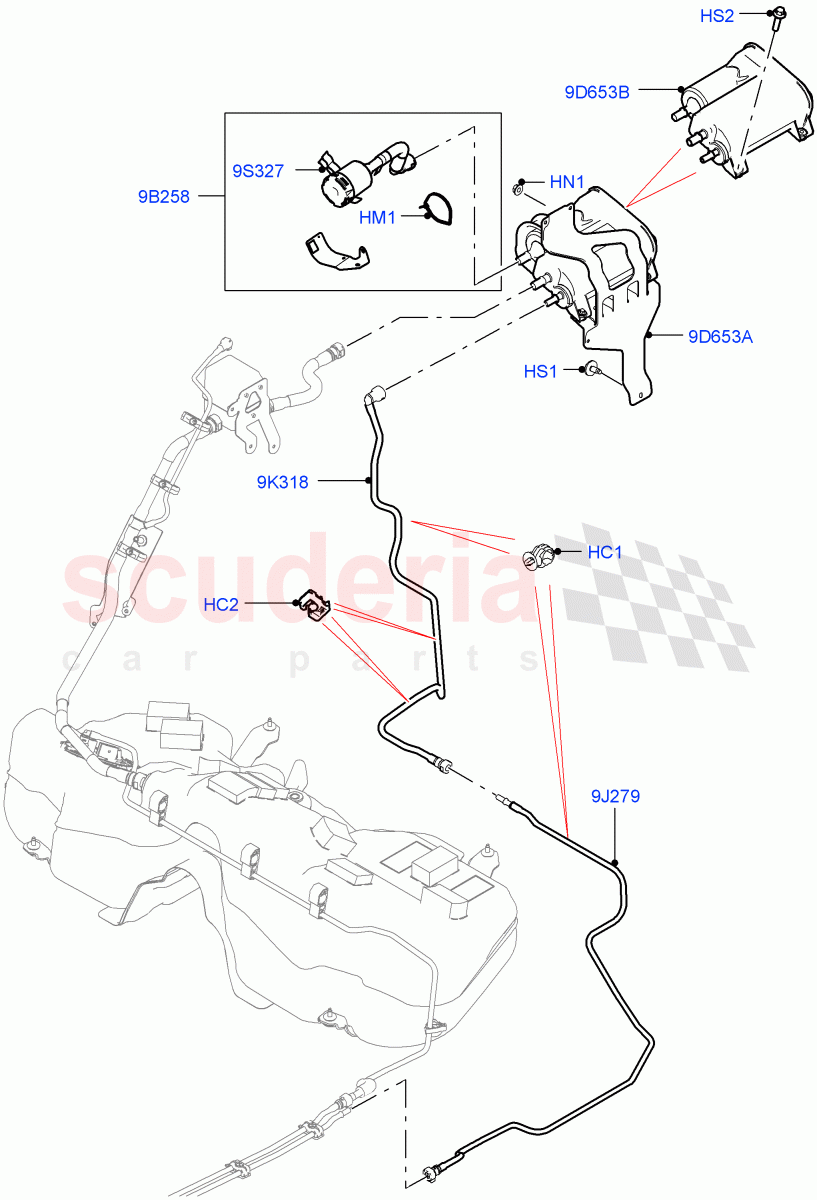

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091651	CLIP - PIPE	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093728	CLIP - HOSE	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	YYD500050	STRAP - CABLE	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	$2.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR112138	HOSE - FUEL VAPOUR	$83.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092367	TUBE - FUEL VAPOUR	$60.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092388	TUBE - FUEL VAPOUR	$57.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112854	TUBE - FUEL VAPOUR	$95.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092386	RESERVOIR - FUEL VAPOUR SYSTEM	$160.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	$243.00	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR091651	CLIP - PIPE	LR091651 CLIP - PIPE From: KA000001	$2.53	10
HC2	LR093728	CLIP - HOSE	LR093728 CLIP - HOSE From: KA000001	$2.97	2
HM1	YYD500050	STRAP - CABLE	YYD500050 STRAP - CABLE Cable Tie With Holder / From: KA000001	$0.45	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$1.45	2
HS1	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM / From: KA000001 IN STOCK	$0.35	1
HS2	4378449	SCREW IN STOCK	4378449 SCREW M6 x 25MM / From: KA000001 IN STOCK	$2.11	2
9B258	LR112138	HOSE - FUEL VAPOUR	LR112138 HOSE - FUEL VAPOUR From: KA000001	$83.74	1
9D653A	LR092386	RESERVOIR - FUEL VAPOUR SYSTEM	LR092386 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: KA000001	$160.37	1
9D653B	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	LR027061 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister / From: KA000001	$243.00	1
9J279	LR092367	TUBE - FUEL VAPOUR	LR092367 TUBE - FUEL VAPOUR From: KA000001	$60.60	1
9K318	LR092388	TUBE - FUEL VAPOUR	LR092388 TUBE - FUEL VAPOUR From: KA000001	$57.85	1
9S327	LR112854	TUBE - FUEL VAPOUR	LR112854 TUBE - FUEL VAPOUR From: KA000001	$95.63	1

Fuel Lines (5.0L P Aj133 Dohc Cda S/C Enhanced, Pet Tank W/O Leak Det - Std Filter) ((V)...

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]
