Vacuum Control And Air Injection (5.0L P Aj133 Dohc Cda S/C Enhanced, Rhd) ((V) Fromka000001)

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Vacuum Control And Air Injection (5.0L P AJ133 DOHC CDA S/C Enhanced, RHD) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000395 CLIP - DOUBLE $1.05 To Order
Photo Part No Description Price (each) Stock
LR060479 SCREW $4.15 To Order
Photo Part No Description Price (each) Stock
LR082226 PUMP - VACUUM $448.18 To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP $19.94 To Order
Photo Part No Description Price (each) Stock
LR090847 GROMMET $4.63 To Order
Photo Part No Description Price (each) Stock
LR093608 SENSOR - VACUUM $72.50 To Order
Photo Part No Description Price (each) Stock
LR090853 HOSE - VACUUM $54.42 To Order
Photo Part No Description Price (each) Stock
LR090854 HOSE - VACUUM $51.69 To Order
Photo Part No Description Price (each) Stock
LR105216 HOSE - VACUUM $81.57 To Order
Photo Part No Description Price (each) Stock
LR105292 HOSE - VACUUM $61.90 To Order
View All

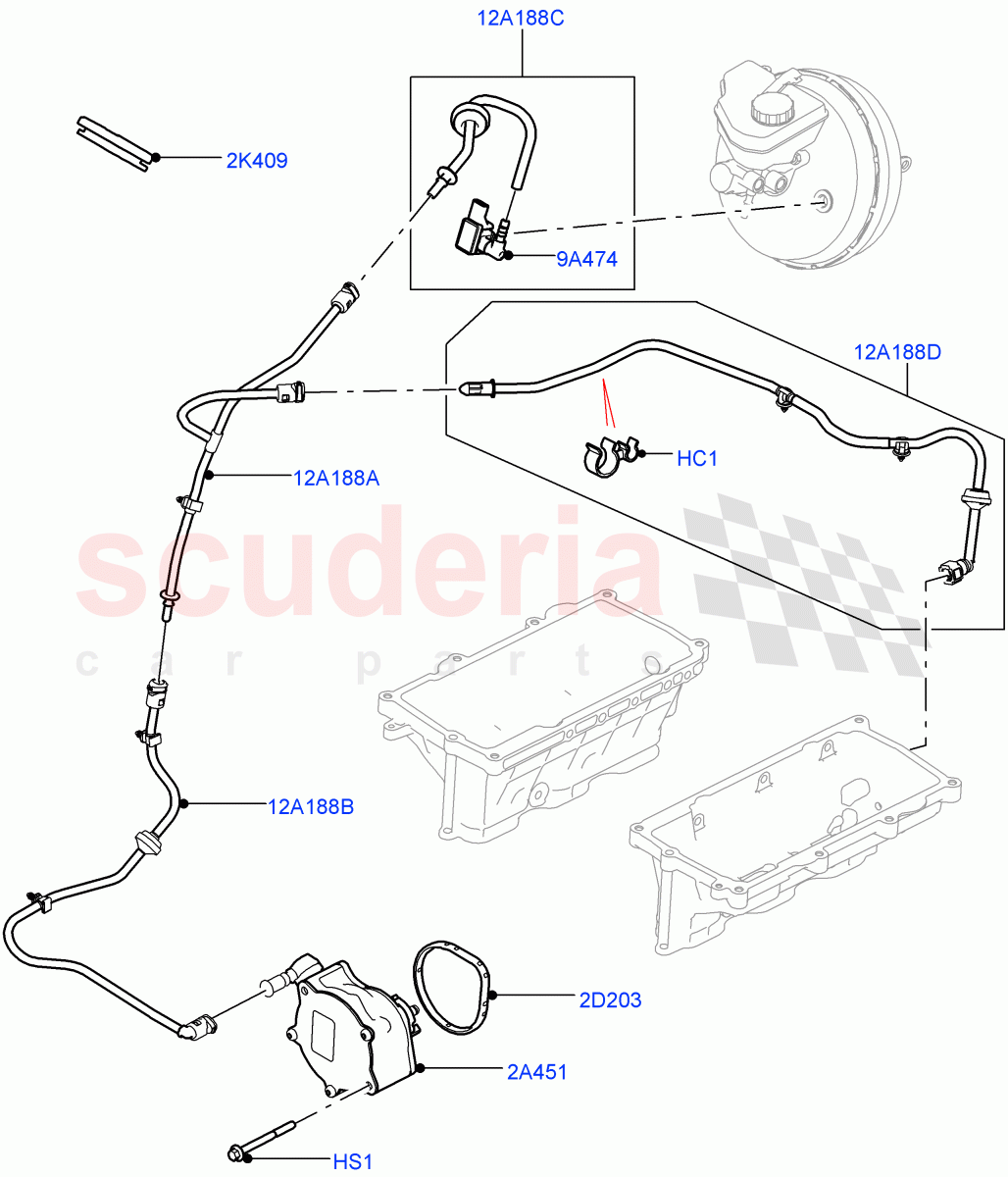

Vacuum Control And Air Injection (5.0L P AJ133 DOHC CDA S/C Enhanced, RHD) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR000395
CLIP - DOUBLE
To Vacuum Hose / From: KA000001 		$1.05 1
HS1 LR060479
SCREW
M6 X 65MM / From: KA000001 		$4.15 1
2A451 LR082226
PUMP - VACUUM
From: KA000001 		$448.18 1
2D203 LR012685
SEAL - VACUUM PUMP
From: KA000001 		$19.94 1
2K409 LR090847
GROMMET
From: KA000001 		$4.63 1
9A474 LR093608
SENSOR - VACUUM
From: KA000001 		$72.50 1
12A188A LR090853
HOSE - VACUUM
Centre / From: KA000001 		$54.42 1
12A188B LR090854
HOSE - VACUUM
To Vacuum Pump / From: KA000001 		$51.69 1
12A188C LR105216
HOSE - VACUUM
To Brake Booster / From: KA000001 		$81.57 1
12A188D LR105292
HOSE - VACUUM
From: KA000001 		$61.90 1
