Name: Inlet Manifold (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Inlet Manifold (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Inlet Manifold (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001)

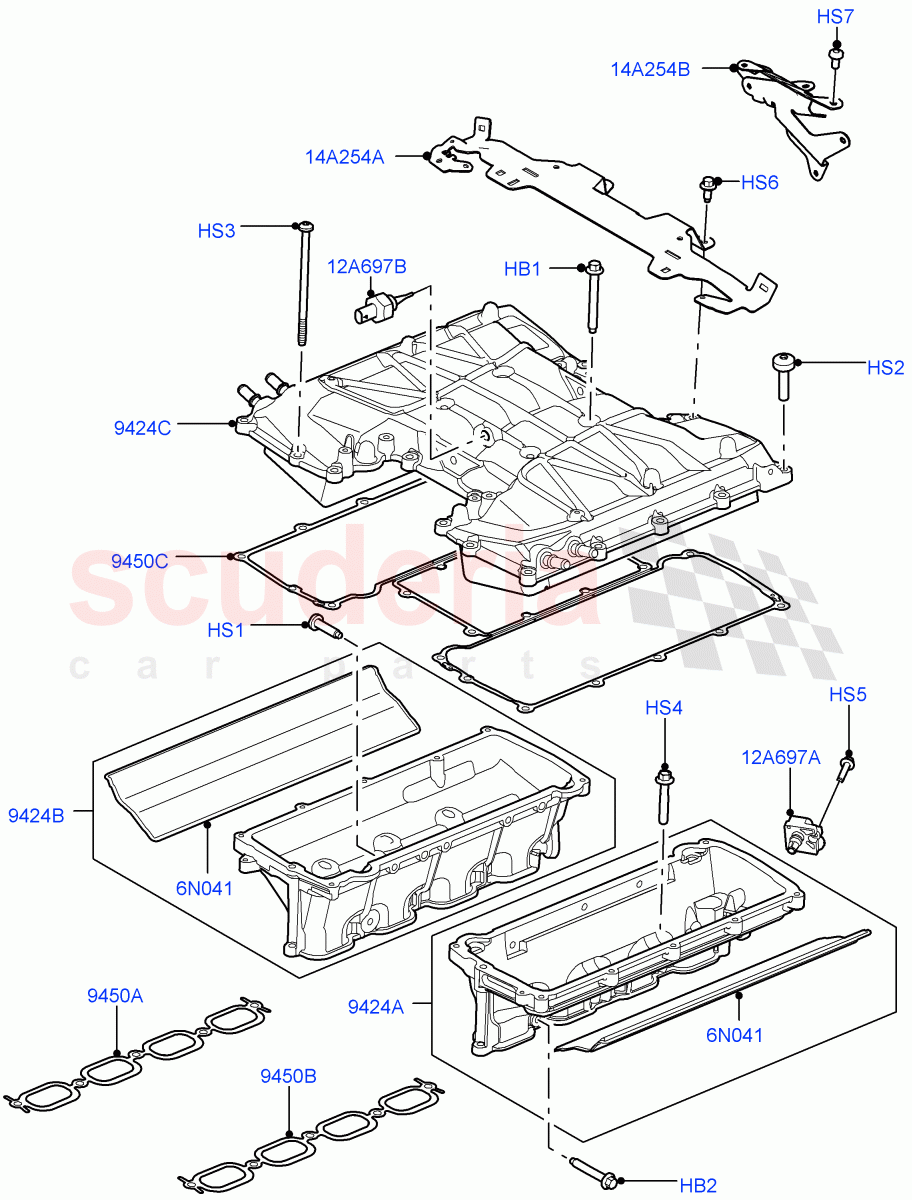

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008883	BOLT - HEX.HEAD	$4.17	To Order

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	$3.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011363	SCREW	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011065	SCREW	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011067	SCREW	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044772	SCREW	$0.51	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500150	SCREW	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500900	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042119	INSULATOR - INTAKE MANIFOLD	$18.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042173	MANIFOLD - INLET	$238.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101751	MANIFOLD - INLET	$229.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111075	INLET MANIFOLD WITH INTERCOOLER	$1,717.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011585	GASKET - INTAKE MANIFOLD	$11.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011586	GASKET - INTAKE MANIFOLD	$12.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011343	GASKET - INTAKE MANIFOLD	$104.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	$62.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035536	SENSOR - AIR CHARGE TEMPERATURE	$37.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117022	BRACKET - WIRING	$70.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118103	BRACKET - WIRING	$19.56	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR008883	BOLT - HEX.HEAD	LR008883 BOLT - HEX.HEAD Intercooler, M8 x 65MM / From: KA000001	$4.17	4
HB2	4567977	BOLT	4567977 BOLT M8 X 50, Manifold To Supercharger / From: KA000001	$3.74	2
HS1	LR010917	SCREW	LR010917 SCREW M8 x 30MM, Manifold To Supercharger / From: KA000001	$1.11	6
HS2	LR011363	SCREW	LR011363 SCREW Intercooler To Manifold, M8 X 35MM / From: KA000001	$1.89	19
HS3	LR011065	SCREW	LR011065 SCREW Intercooler To Cylinder Head, M8 X 150MM / From: KA000001	$2.36	2
HS4	LR011067	SCREW	LR011067 SCREW M8 X 45MM, Manifold To Cylinder Head / From: KA000001	$1.26	8
HS5	LR044772	SCREW	LR044772 SCREW M5 x 20MM, Sensor - Air Temperature And Pressure / From: KA000001	$0.51	1
HS6	RYG500150	SCREW	RYG500150 SCREW Bracket To Engine, M6 x 12MM / From: KA000001	$1.55	4
HS7	RYP500900	SCREW	RYP500900 SCREW M6 x 12MM, Torx / From: KA000001	$0.63	1
6N041	LR042119	INSULATOR - INTAKE MANIFOLD	LR042119 INSULATOR - INTAKE MANIFOLD Attaches to intake manifold / From: KA000001	$18.40	2
12A697A	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Sensor - Air Temperature And Pressure / From: KA000001	$62.25	1
12A697B	LR035536	SENSOR - AIR CHARGE TEMPERATURE	LR035536 SENSOR - AIR CHARGE TEMPERATURE From: KA000001	$37.56	1
14A254A	LR117022	BRACKET - WIRING	LR117022 BRACKET - WIRING From: KA000001	$70.13	1
14A254B	LR118103	BRACKET - WIRING	LR118103 BRACKET - WIRING Rear / From: KA000001	$19.56	1
9424A	LR042173	MANIFOLD - INLET	LR042173 MANIFOLD - INLET LH / From: KA000001	$238.85	1
9424B	LR101751	MANIFOLD - INLET	LR101751 MANIFOLD - INLET RH / From: KA000001	$229.52	1
9424C	LR111075	INLET MANIFOLD WITH INTERCOOLER	LR111075 INLET MANIFOLD WITH INTERCOOLER Upper, With Intercooler / From: KA000001	$1,717.53	1
9450A	LR011585	GASKET - INTAKE MANIFOLD IN STOCK	LR011585 GASKET - INTAKE MANIFOLD RH, Manifold To Cylinder Head / From: KA000001 IN STOCK	$11.66	1
9450B	LR011586	GASKET - INTAKE MANIFOLD IN STOCK	LR011586 GASKET - INTAKE MANIFOLD LH, Manifold To Cylinder Head / From: KA000001 IN STOCK	$12.03	1
9450C	LR011343	GASKET - INTAKE MANIFOLD IN STOCK	LR011343 GASKET - INTAKE MANIFOLD Intercooler To Manifold / From: KA000001 IN STOCK	$104.02	1

Inlet Manifold (5.0L P Aj133 Dohc Cda S/C Enhanced) ((V) Fromka000001)

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Inlet Manifold (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001)
