Name: Pulleys And Drive Belts (Primary Drive) (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

View All

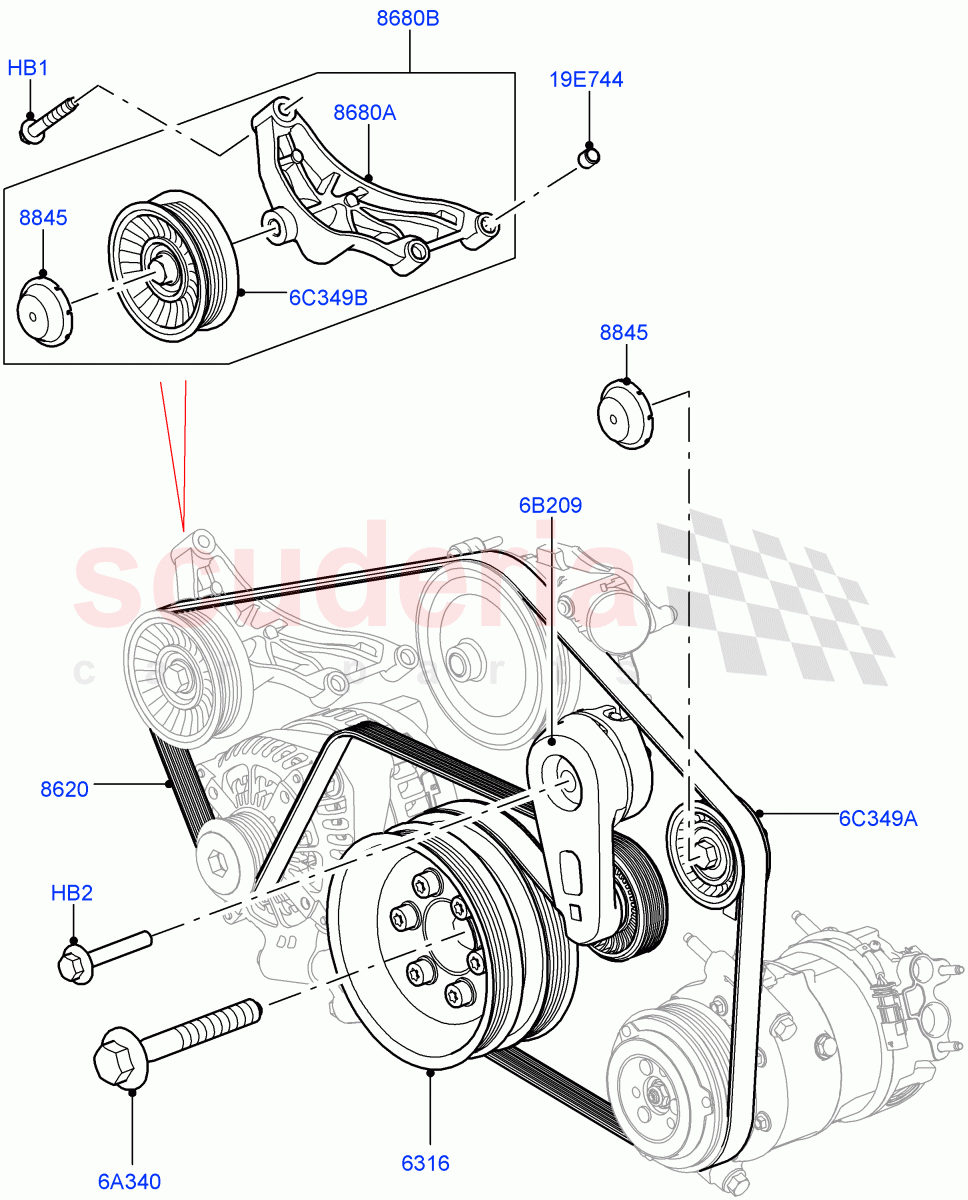

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	$3.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FC110136	BOLT	$3.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124258	PULLEY - CRANKSHAFT	$455.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091610	V-BELT	$60.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011952	BOLT M18 X110	$22.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071035	TENSIONER - DRIVE BELT	$150.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106771	BRACKET - IDLER PULLEY	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099573	BRACKET - IDLER PULLEY	$111.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	$3.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR036304	IDLER - DRIVE BELT	$61.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR106769	IDLER	$49.25	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4567977	BOLT	4567977 BOLT Bracket, M8 X 50 / From: KA000001	$3.74	3
HB2	FC110136	BOLT	FC110136 BOLT Hexagonal Head, M10X65, Tensioner / From: KA000001	$3.57	1
6A340	LR011952	BOLT M18 X110 IN STOCK	LR011952 BOLT M18 X110 M16 X 118MM, Pulley - Crankshaft / From: KA000001 IN STOCK	$22.60	1
6B209	LR071035	TENSIONER - DRIVE BELT	LR071035 TENSIONER - DRIVE BELT Drive Belt, Primary Drive / From: KA000001	$150.69	1
6C349A	LR036304	IDLER - DRIVE BELT IN STOCK	LR036304 IDLER - DRIVE BELT Drive Belt, IN STOCK	$61.87	1
6C349B	LR106769	IDLER IN STOCK	LR106769 IDLER 90MM, Drive Belt / From: KA000001 IN STOCK	$49.25	1
19E744	LR057802	DOWEL - PIN IN STOCK	LR057802 DOWEL - PIN IN STOCK	$3.36	2
6316	LR124258	PULLEY - CRANKSHAFT	LR124258 PULLEY - CRANKSHAFT From: KA000001	$455.33	1
8620	LR091610	V-BELT	LR091610 V-BELT Accessory Drive, Primary / From: KA000001	$60.69	1
8680A	LR106771	BRACKET - IDLER PULLEY	LR106771 BRACKET - IDLER PULLEY From: KA000001	$50.15	1
8680B	LR099573	BRACKET - IDLER PULLEY	LR099573 BRACKET - IDLER PULLEY With Idler / From: KA000001	$111.59	1
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler / From: KA000001	$3.12	2

Pulleys And Drive Belts (Primary Drive) (5.0L P Aj133 Dohc Cda S/C Enhanced) ((V) Fromka000001)

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]
