Rear Door Trim Installation of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Rear Door Trim Installation

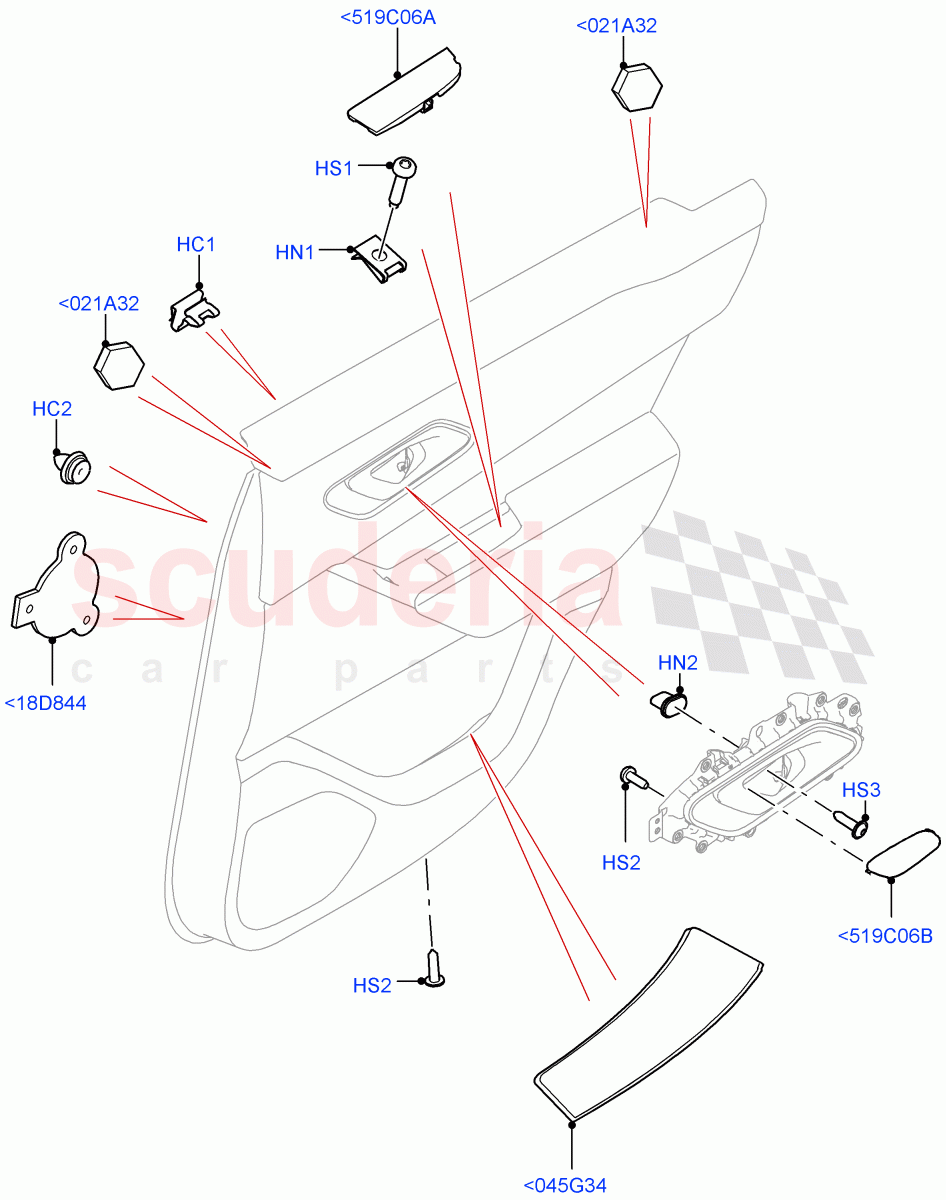

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091469	CLIP - DOOR INNER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090382	CLIP - LANTERN	Enquire	To Order
	LR109136	CLIP - LANTERN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027995	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BTR1737	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYP500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007312	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR046742	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157747	FOAM - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091488	MAT - DOOR POCKET	Enquire	To Order
	LR091489	MAT - DOOR POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091458	SCRIM - SPEAKER FRET	Enquire	To Order
	LR091458	SCRIM - SPEAKER FRET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091455	COVER - CUP HOLDER	Enquire	To Order
	LR091462	COVER - CUP HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091668	COVER - DOOR TRIM	Enquire	To Order
	LR091665	COVER - DOOR TRIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<18D844	LR091458	SCRIM - SPEAKER FRET	LR091458 SCRIM - SPEAKER FRET Standard Audio (Base) / RH/LH / To: LA999999	-	2	Enquire
<18D844	LR091458	SCRIM - SPEAKER FRET	LR091458 SCRIM - SPEAKER FRET Standard Audio (Base) / RH/LH / From: MA000001	-	2	Enquire
<021A32	LR157747	FOAM - SEALING	LR157747 FOAM - SEALING RH/LH	-	4	Enquire
<045G34	LR091488	MAT - DOOR POCKET	LR091488 MAT - DOOR POCKET RH, Door Pocket	-	1	Enquire
<045G34	LR091489	MAT - DOOR POCKET	LR091489 MAT - DOOR POCKET LH, Door Pocket	-	1	Enquire
<519C06A	LR091455	COVER - CUP HOLDER	LR091455 COVER - CUP HOLDER RH, For Armrest Door	-	1	Enquire
<519C06A	LR091462	COVER - CUP HOLDER	LR091462 COVER - CUP HOLDER LH, For Armrest Door	-	1	Enquire
<519C06B	LR091668	COVER - DOOR TRIM	LR091668 COVER - DOOR TRIM LH	-	1	Enquire
<519C06B	LR091665	COVER - DOOR TRIM	LR091665 COVER - DOOR TRIM RH	-	1	Enquire
HC1	LR091469	CLIP - DOOR INNER PANEL	LR091469 CLIP - DOOR INNER PANEL 0.7-1.2+4.5X26+2.5	-	10	Enquire
HC2	LR090382	CLIP - LANTERN	LR090382 CLIP - LANTERN To: JA707427	-	-	Enquire
HC2	LR109136	CLIP - LANTERN	LR109136 CLIP - LANTERN 8.5 x 0.7-1.6 + 2.5 Plastic / From: JA707428	-	22	Enquire
HN1	LR027995	NUT	LR027995 NUT M6 X 0.7 - 4, Nut "U" Spring	-	4	Enquire
HN2	BTR1737	NUT	BTR1737 NUT 4.20MM, Handle, Plastic Nut	-	2	Enquire
HS1	UYP500030	SCREW	UYP500030 SCREW M6 x 25MM, Torx	-	4	Enquire
HS2	LR007312	SCREW	LR007312 SCREW 4.2 X 19MM	-	2	Enquire
HS3	LR046742	SCREW	LR046742 SCREW 4.2 x 25MM	-	2	Enquire
