Air Conditioning Condensr/Compressr (Front) (2.0L Aj21D4 Diesel Mid, 2.0L I4 Mid Dohc Aj200 Petrol)...

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning Condensr/Compressr (Front) (2.0L AJ21D4 Diesel Mid, 2.0L I4 Mid DOHC AJ200 Petrol)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500250 BOLT $1.19 IN STOCK
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.62 IN STOCK
Photo Part No Description Price (each) Stock
LR141748 BOLT $0.54 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.16 To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING $3.17 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.81 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
LR116447 STUD $3.85 To Order
Photo Part No Description Price (each) Stock
LR114353 CONDENSER $520.37 To Order
Photo Part No Description Price (each) Stock
LR141800 HOSE - AIR CONDITIONING $173.44 To Order
Photo Part No Description Price (each) Stock
LR141773 TUBE- A/C EVAPORATOR INLET & OUTLET $309.78 To Order
LR141775 TUBE- A/C EVAPORATOR INLET & OUTLET $310.92 To Order
LR141773 TUBE- A/C EVAPORATOR INLET & OUTLET $309.78 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR128700 BRACKET - CONDENSER SUPPORT $16.25 To Order
Photo Part No Description Price (each) Stock
LR128698 BRACKET - CONDENSER SUPPORT $16.32 To Order
Photo Part No Description Price (each) Stock
LR128701 BRACKET - CONDENSER SUPPORT $16.25 To Order
Photo Part No Description Price (each) Stock
LR092456 BRACKET - CONDENSER SUPPORT $38.08 To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $229.94 To Order
Photo Part No Description Price (each) Stock
LR141720 COMPRESSOR - AIR CONDITIONING $1,574.11 To Order
LR147876 COMPRESSOR - AIR CONDITIONING $1,323.85 To Order
LR159434 COMPRESSOR - AIR CONDITIONING $1,167.20 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JUS500030 VALVE $14.82 To Order
Photo Part No Description Price (each) Stock
LR111349 KIT - AIR-CON CONDENSER DESICCANT $184.10 To Order
Photo Part No Description Price (each) Stock
LR122304 WASHER - SEALING $14.65 To Order
Photo Part No Description Price (each) Stock
LR124622 WASHER - SEALING $15.06 To Order
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING $13.95 To Order
Photo Part No Description Price (each) Stock
LR141794 HOSE - AIR CONDITIONING $158.56 To Order
LR141795 HOSE - AIR CONDITIONING $159.62 To Order
Photo Part No Description Price (each) Stock
LR141798 TUBE AND HOSE-A/C COMPRESSOR INLET $155.38 To Order
View All

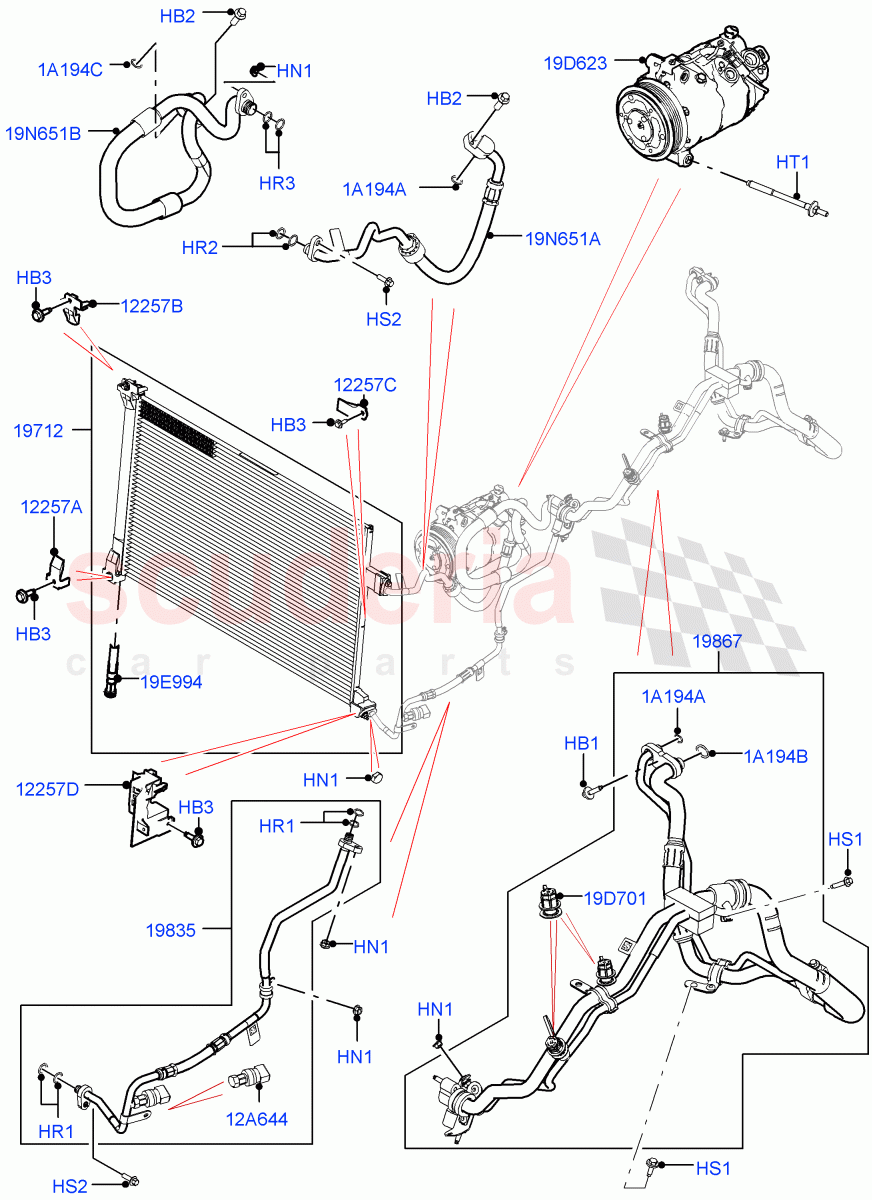

Air Conditioning Condensr/Compressr (Front) (2.0L AJ21D4 Diesel Mid, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500250
BOLT
M6 x 25MM / From: MA000001
IN STOCK 		$1.19 1
HB2 FS108256
BOLT
Hexagonal Head, M8 X 25MM / From: MA000001
IN STOCK 		$3.62 2
HB3 LR141748
BOLT
M6 X 25MM / From: MA000001 		$0.54 4
HN1 FN106042
NUT
Hexagonal Head, M6 / From: MA000001
IN STOCK 		$1.04 5
HR1 LR044466
O-RING
7.65 X 1.78 / From: MA000001 		$4.16 4
HR2 LR054871
O-RING
10.82MM X 1.78MM / From: MA000001 		$3.17 2
HR3 LR044465
O-RING
14 X 1.78 / From: MA000001 		$2.81 2
HS1 RYG501590
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001 		$0.96 2
HS2 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$0.97 2
HT1 LR116447
STUD
Compressor Mounting, Hexagonal Head, M8 x 97.5mm + M6 x 15mm / From: MA000001 		$3.85 3
1A194A LR122304
WASHER - SEALING
12.7MM / From: MA000001 		$14.65 2
1A194B LR124622
WASHER - SEALING
15.88MM / From: MA000001 		$15.06 1
1A194C LR122305
WASHER - SEALING
19.05 MM / From: MA000001 		$13.95 1
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
From: MA000001 		$229.94 1
19D623 LR141720
COMPRESSOR - AIR CONDITIONING
2.0L I4 Mid DOHC AJ200 Petrol / From: MA000001 / To: MA316819 		$1,574.11 1
19D623 LR147876
COMPRESSOR - AIR CONDITIONING
2.0L AJ21D4 Diesel Mid / From: MA000001 / To: MA312910 		$1,323.85 1
19D623 LR159434
COMPRESSOR - AIR CONDITIONING
2.0L AJ21D4 Diesel Mid / From: MA312911 		$1,167.20 1
19D623 LR159435
COMPRESSOR - AIR CONDITIONING
2.0L I4 Mid DOHC AJ200 Petrol / From: MA316820 		$1,530.60 1
19D701 JUS500030
VALVE
From: MA000001 		$14.82 2
19E994 LR111349
KIT - AIR-CON CONDENSER DESICCANT
From: MA000001 		$184.10 1
19N651A LR141794
HOSE - AIR CONDITIONING
2.0L AJ21D4 Diesel Mid / Condenser Inlet Tube / From: MA000001 		$158.56 1
19N651A LR141795
HOSE - AIR CONDITIONING
2.0L I4 Mid DOHC AJ200 Petrol / Condenser Inlet Tube / From: MA000001 		$159.62 1
19N651B LR141798
TUBE AND HOSE-A/C COMPRESSOR INLET
Compressor Inlet / From: MA000001 		$155.38 1
12257A LR128700
BRACKET - CONDENSER SUPPORT
RH, Lower / From: MA000001 		$16.25 1
12257B LR128698
BRACKET - CONDENSER SUPPORT
RH, Upper / From: MA000001 		$16.32 1
12257C LR128701
BRACKET - CONDENSER SUPPORT
LH, Upper / From: MA000001 		$16.25 1
12257D LR092456
BRACKET - CONDENSER SUPPORT
LH, Lower / From: MA000001 		$38.08 1
19712 LR114353
CONDENSER
From: MA000001 		$520.37 1
19835 LR141800
HOSE - AIR CONDITIONING
From: MA000001 		$173.44 1
19867 LR141773
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / From: MA000001 / To: MA999999 		$309.78 1
19867 LR141775
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: MA000001 / To: MA999999 		$310.92 1
19867 LR141773
TUBE- A/C EVAPORATOR INLET & OUTLET
A/C HF01234YF w/Intrnl Heat Exchng / From: NA000001 		$309.78 1
19867 LR161062
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: NA000001 		$243.89 1
19867 LR161041
TUBE- A/C EVAPORATOR INLET & OUTLET
A/C HF01234YF w/o Intrnl HT Exchng / From: NA000001 		$264.62 1
