Transmission Cooling Systems (3.0L Aj20P6 Petrol High, 8 Speed Auto Trans Zf 8Hp76, 3.0L Aj20D6...

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Transmission Cooling Systems (3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, 3.0L AJ20D6...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
LR141748 BOLT $0.54 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
LR049457 O-RING $3.15 IN STOCK
Photo Part No Description Price (each) Stock
LR141636 OIL COOLER $239.46 To Order
Photo Part No Description Price (each) Stock
LR141634 BRACKET - OIL COOLER $62.73 To Order
Photo Part No Description Price (each) Stock
LR092826 BRACKET - OIL HOSES $12.30 To Order
Photo Part No Description Price (each) Stock
LR141631 TUBE - OIL COOLER $136.07 To Order
View All

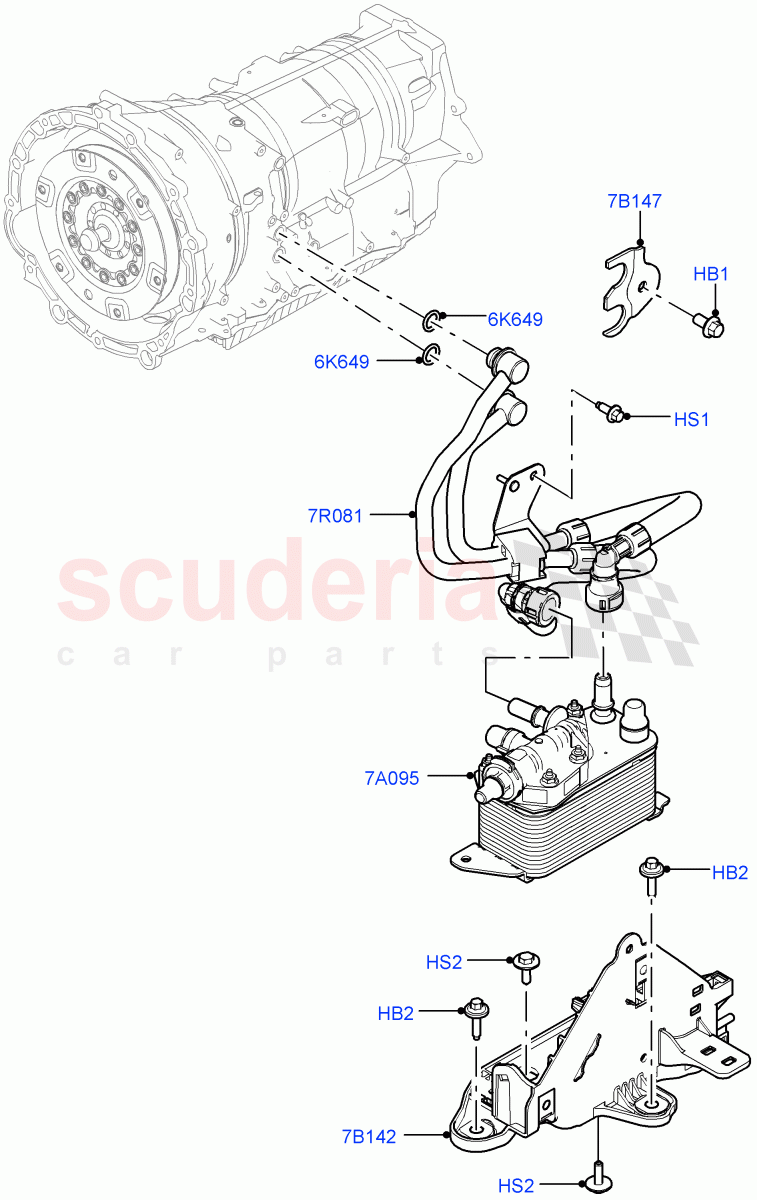

Transmission Cooling Systems (3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, 3.0L AJ20D6 Diesel High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM, To Transmission / From: MA000001
IN STOCK 		$0.63 1
HB2 LR141748
BOLT
Bracket, M6 X 25MM, Oil Cooler / From: MA000001 		$0.54 2
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: MA000001 		$0.59 1
HS2 AYP500110
SCREW
Bolt And Washer, Bracket To BIW, Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$0.92 2
6K649 LR049457
O-RING
IN STOCK 		$3.15 2
7A095 LR141636
OIL COOLER
Transmission / From: MA000001 		$239.46 1
7B142 LR141634
BRACKET - OIL COOLER
Oil Cooler / From: MA000001 		$62.73 1
7B147 LR092826
BRACKET - OIL HOSES
Oil Cooler Hose / From: MA000001 		$12.30 1
7R081 LR141631
TUBE - OIL COOLER
From: MA000001 		$136.07 1
