Name: Timing Gear (Timing Chains, Tensioners, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 4.8 (1 reviews)

View All

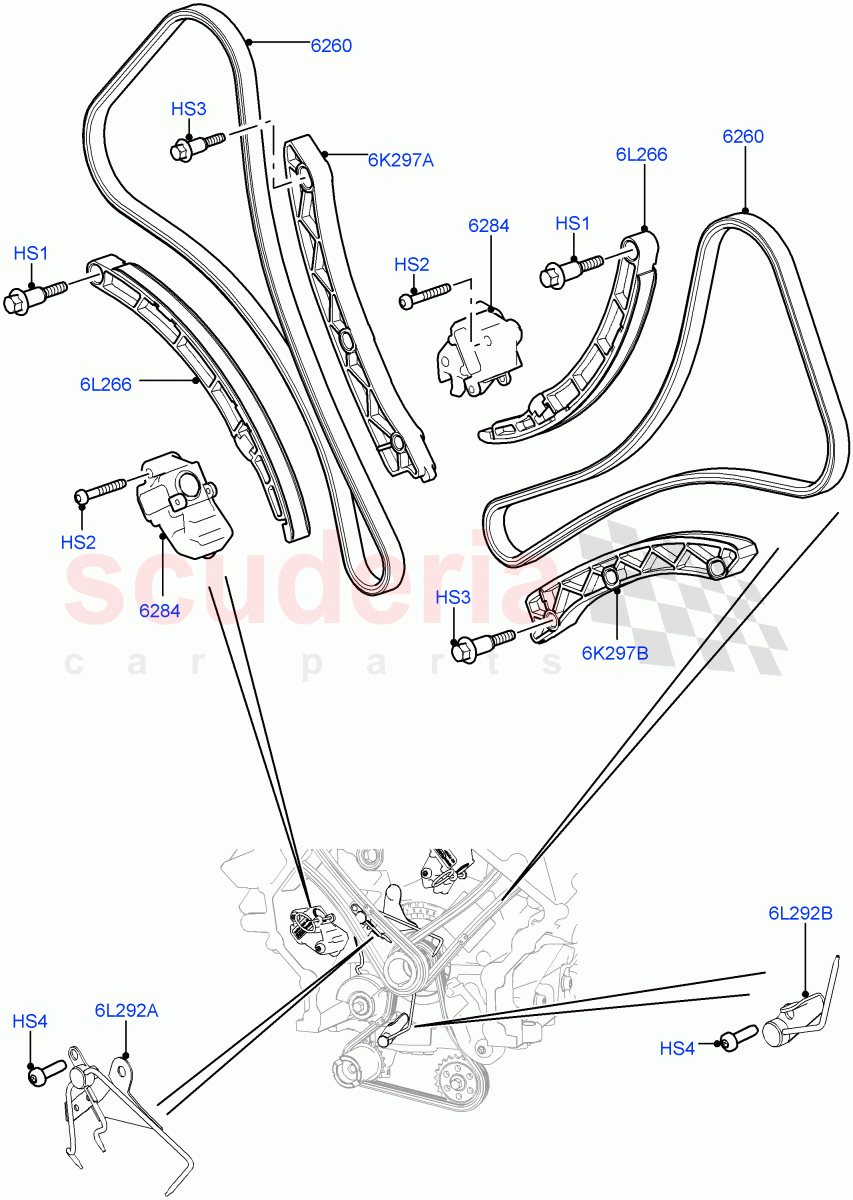

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	$2.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011064	SCREW	$2.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032048	CHAIN - TIMING	$86.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095472	TENSIONER - TIMING CHAIN	$141.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051013	BLADE - TENSIONER	$63.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051011	GUIDE - TIMING CHAIN	$46.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051012	GUIDE - TIMING CHAIN	$46.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR041774	JET - CHAIN LUBRICATING	$74.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059161	JET - CHAIN LUBRICATING	$17.96	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011522	SCREW IN STOCK	LR011522 SCREW M8 X 45MM, Tensioner IN STOCK	$2.77	2
HS2	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx	$1.32	4
HS3	LR011064	SCREW IN STOCK	LR011064 SCREW Chain Guide, M6 X 38MM IN STOCK	$2.47	6
HS4	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle	$1.19	2
6K297A	LR051011	GUIDE - TIMING CHAIN IN STOCK	LR051011 GUIDE - TIMING CHAIN RH, Timing Chain IN STOCK	$46.40	1
6K297B	LR051012	GUIDE - TIMING CHAIN IN STOCK	LR051012 GUIDE - TIMING CHAIN LH, Timing Chain IN STOCK	$46.40	1
6L266	LR051013	BLADE - TENSIONER IN STOCK	LR051013 BLADE - TENSIONER Blade IN STOCK	$63.13	2
6L292A	LR041774	JET - CHAIN LUBRICATING	LR041774 JET - CHAIN LUBRICATING Chain Lubricating, Upper	$74.00	1
6L292B	LR059161	JET - CHAIN LUBRICATING IN STOCK	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower IN STOCK	$17.96	1
6260	LR032048	CHAIN - TIMING IN STOCK	LR032048 CHAIN - TIMING IN STOCK	$86.54	2
6284	LR095472	TENSIONER - TIMING CHAIN IN STOCK	LR095472 TENSIONER - TIMING CHAIN IN STOCK	$141.25	2

Timing Gear (Timing Chains, Tensioners, Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V)...

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]
