Name: Fuel Injectors And Pipes (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 5.0 (1 reviews)

Fuel Injectors And Pipes (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Injectors And Pipes (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

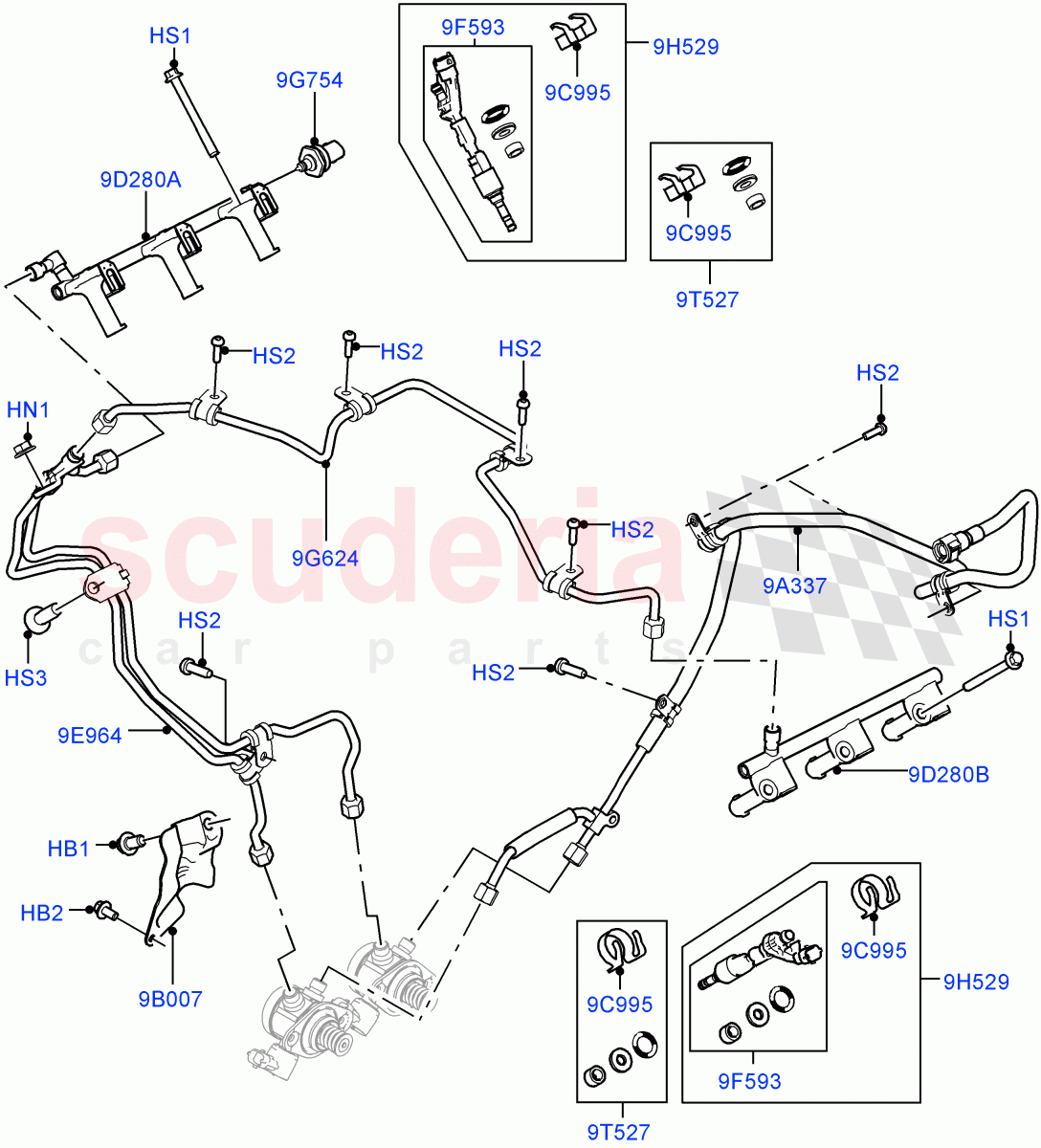

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR012779	BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106122	BOLT	$3.90	To Order

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030807	SCREW	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR068997	PIPE - FUEL	$150.19	To Order
	LR116436	PIPE - FUEL	$189.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012782	SHIELD - FUEL TUBES	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010767	RETAINER - INJECTION VALVE	$5.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065487	PIPE - FUEL	$233.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079541	INJECTOR - FUEL	$307.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088579	TUBE - FUEL CROSSOVER	$98.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054622	SENSOR - FUEL PRESSURE/TEMPERATURE	$126.37	To Order
	LR108241	SENSOR - FUEL PRESSURE/TEMPERATURE	$111.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067418	KIT - FUEL INJECTION	$361.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037089	KIT - INJECTOR REFIT	$27.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR076017	MANIFOLD - FUEL SUPPLY	$385.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076018	MANIFOLD - FUEL SUPPLY	$350.77	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR012779	BOLT	LR012779 BOLT M10 X 20MM	$1.00	1
HB2	FS106122	BOLT	FS106122 BOLT Cover, M6 x 12MM	$3.90	1
HN1	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED M5 IN STOCK	$0.50	1
HS1	LR011274	SCREW	LR011274 SCREW Fuel Rail	$2.49	6
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM	$1.19	7
HS3	LR030807	SCREW IN STOCK	LR030807 SCREW M8 X 25MM, Torx IN STOCK	$1.34	1
9A337	LR068997	PIPE - FUEL	LR068997 PIPE - FUEL Low Pressure, Pump Feed / To: JA757695	$150.19	1
9A337	LR116436	PIPE - FUEL	LR116436 PIPE - FUEL Low Pressure, Pump Feed / From: JA757696	$189.40	1
9B007	LR012782	SHIELD - FUEL TUBES	LR012782 SHIELD - FUEL TUBES Fuel Lines To Fuel Rail	$7.83	1
9C995	LR010767	RETAINER - INJECTION VALVE	LR010767 RETAINER - INJECTION VALVE	$5.82	6
9D280A	LR076017	MANIFOLD - FUEL SUPPLY	LR076017 MANIFOLD - FUEL SUPPLY RH	$385.21	1
9D280B	LR076018	MANIFOLD - FUEL SUPPLY	LR076018 MANIFOLD - FUEL SUPPLY LH	$350.77	1
9E964	LR065487	PIPE - FUEL	LR065487 PIPE - FUEL Fuel Lines To Fuel Rail, High Pressure	$233.72	1
9F593	LR079541	INJECTOR - FUEL	LR079541 INJECTOR - FUEL	$307.67	6
9G624	LR088579	TUBE - FUEL CROSSOVER	LR088579 TUBE - FUEL CROSSOVER High Pressure	$98.00	1
9G754	LR054622	SENSOR - FUEL PRESSURE/TEMPERATURE	LR054622 SENSOR - FUEL PRESSURE/TEMPERATURE To: JA711123	$126.37	1
9G754	LR108241	SENSOR - FUEL PRESSURE/TEMPERATURE	LR108241 SENSOR - FUEL PRESSURE/TEMPERATURE From: JA711124	$111.46	1
9H529	LR067418	KIT - FUEL INJECTION	LR067418 KIT - FUEL INJECTION Injector Assembly, Kit For 1 Cylinder	$361.28	6
9T527	LR037089	KIT - INJECTOR REFIT IN STOCK	LR037089 KIT - INJECTOR REFIT Includes Oring, Teflon Seal, Retainer IN STOCK	$27.34	6
