Name: Exhaust Sensors And Modules (3.0L DOHC GDI SC V6 PETROL, Beijing 6 Petrol Emission)
Rating: 4.6 (1 reviews)

Exhaust Sensors And Modules (3.0L DOHC GDI SC V6 PETROL, Beijing 6 Petrol Emission) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Exhaust Sensors And Modules (3.0L DOHC GDI SC V6 PETROL, Beijing 6 Petrol Emission)

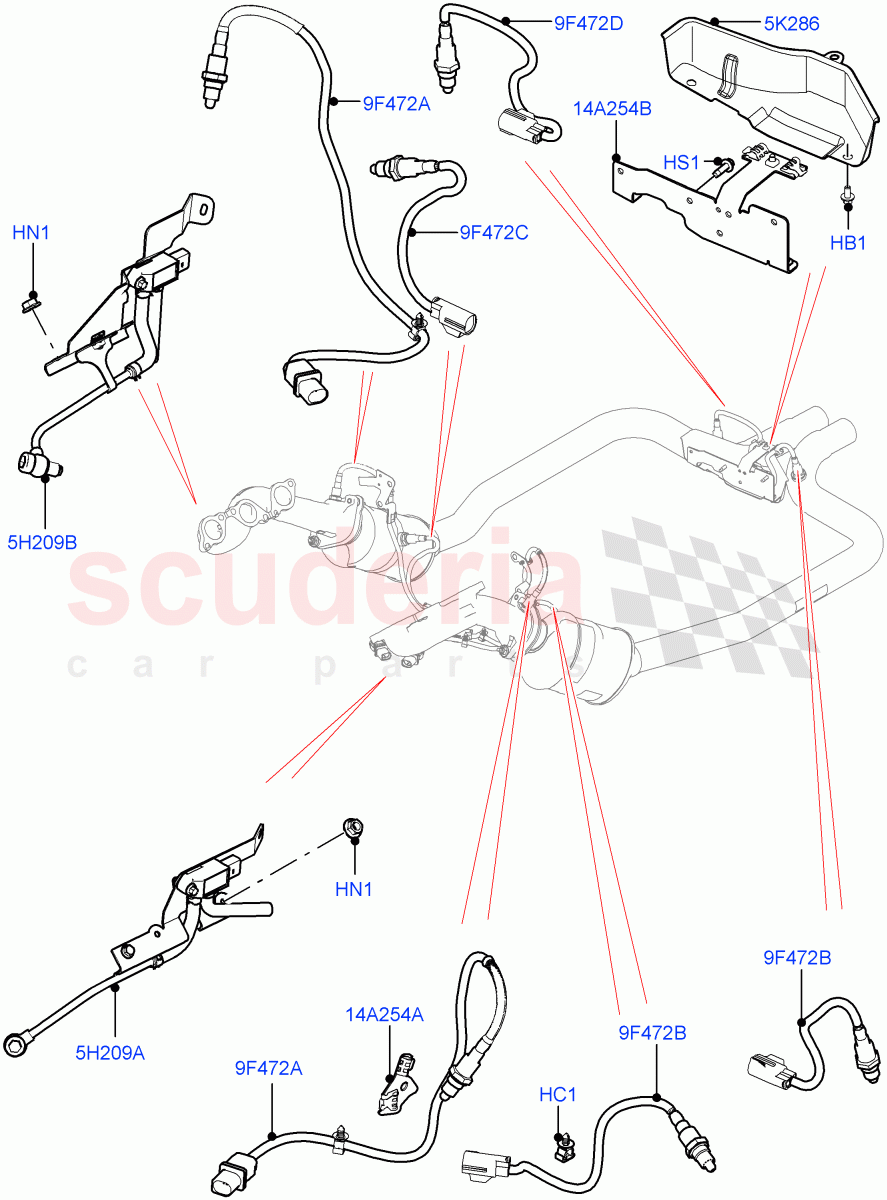

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000385	BOLT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	$1.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091869	SHIELD - PROTECTION	$18.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106470	SENSOR	$255.18	To Order
	LR113707	SENSOR - EXHAUST GAS PRESSURE	$212.74	To Order
	LR126303	SENSOR	$184.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116491	SENSOR	$271.94	To Order
	LR106471	SENSOR	$277.48	To Order
	LR126305	SENSOR	$200.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091881	SENSOR - LAMBDA	$205.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091883	SENSOR - EXHAUST GAS - OXYGEN	$158.84	To Order
	LR140061	SENSOR - EXHAUST GAS - OXYGEN	$284.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091882	SENSOR - EXHAUST GAS - OXYGEN	$188.85	To Order
	LR140063	SENSOR - EXHAUST GAS - OXYGEN	$192.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091884	SENSOR - EXHAUST GAS - OXYGEN	$148.70	To Order
	LR140038	SENSOR - EXHAUST GAS - OXYGEN	$190.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092949	BRACKET - WIRING	$14.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104498	BRACKET	$34.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000385	BOLT	LR000385 BOLT Bracket, Hexagonal Head, M6 x 12MM	$0.63	3
HC1	LR011519	CLIP IN STOCK	LR011519 CLIP 9.5 X 6 X 2 IN STOCK	$1.97	3
HN1	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED M5 IN STOCK	$0.50	4
HS1	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM	$0.90	2
5H209A	LR106470	SENSOR	LR106470 SENSOR LH, Exhaust Gas Pressure / To: JA999999	$255.18	1
5H209A	LR113707	SENSOR - EXHAUST GAS PRESSURE	LR113707 SENSOR - EXHAUST GAS PRESSURE LH, Exhaust Gas Pressure / From: KA000001 / To: KA219631	$212.74	1
5H209A	LR126303	SENSOR	LR126303 SENSOR LH, Exhaust Gas Pressure / From: KA219632	$184.11	1
5H209B	LR116491	SENSOR	LR116491 SENSOR RH, Exhaust Gas Pressure / From: KA000001 / To: KA219631	$271.94	1
5H209B	LR106471	SENSOR	LR106471 SENSOR RH, Exhaust Gas Pressure / To: JA999999	$277.48	1
5H209B	LR126305	SENSOR	LR126305 SENSOR RH, Exhaust Gas Pressure / From: KA219632	$200.17	1
5K286	LR091869	SHIELD - PROTECTION	LR091869 SHIELD - PROTECTION	$18.80	1
9F472A	LR091881	SENSOR - LAMBDA	LR091881 SENSOR - LAMBDA Exhaust Manifold, Hego Sensor	$205.22	2
9F472B	LR091883	SENSOR - EXHAUST GAS - OXYGEN	LR091883 SENSOR - EXHAUST GAS - OXYGEN LH / To: LA275774	$158.84	2
9F472B	LR140061	SENSOR - EXHAUST GAS - OXYGEN	LR140061 SENSOR - EXHAUST GAS - OXYGEN LH, Front / Rear, Hego Sensor / From: LA275775	$284.95	2
9F472C	LR091882	SENSOR - EXHAUST GAS - OXYGEN	LR091882 SENSOR - EXHAUST GAS - OXYGEN RH, Front, Hego Sensor / To: LA275774	$188.85	1
9F472C	LR140063	SENSOR - EXHAUST GAS - OXYGEN	LR140063 SENSOR - EXHAUST GAS - OXYGEN RH, Front, Hego Sensor / From: LA275775	$192.55	1
9F472D	LR091884	SENSOR - EXHAUST GAS - OXYGEN	LR091884 SENSOR - EXHAUST GAS - OXYGEN RH, Hego Sensor, Rear / To: LA274283	$148.70	1
9F472D	LR140038	SENSOR - EXHAUST GAS - OXYGEN	LR140038 SENSOR - EXHAUST GAS - OXYGEN RH, Hego Sensor, Rear / From: LA274284	$190.78	1
14A254A	LR092949	BRACKET - WIRING	LR092949 BRACKET - WIRING Hego Sensor, LH Front	$14.84	1
14A254B	LR104498	BRACKET	LR104498 BRACKET Rear	$34.89	1
