Fuel Injectors And Pipes (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Injectors And Pipes (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR128535 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR089197 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR121767 MANIFOLD - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR121768 WIRING - FUEL INJECTORS Enquire To Order
Photo Part No Description Price (each) Stock
LR121769 SENSOR - FUEL PRESSURE/TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR134725 KIT - FUEL INJECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR121770 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR105428 KIT - INJECTOR REFIT Enquire To Order
Photo Part No Description Price (each) Stock
LR121774 INSULATOR - FUEL INJECTORS Enquire To Order
View All

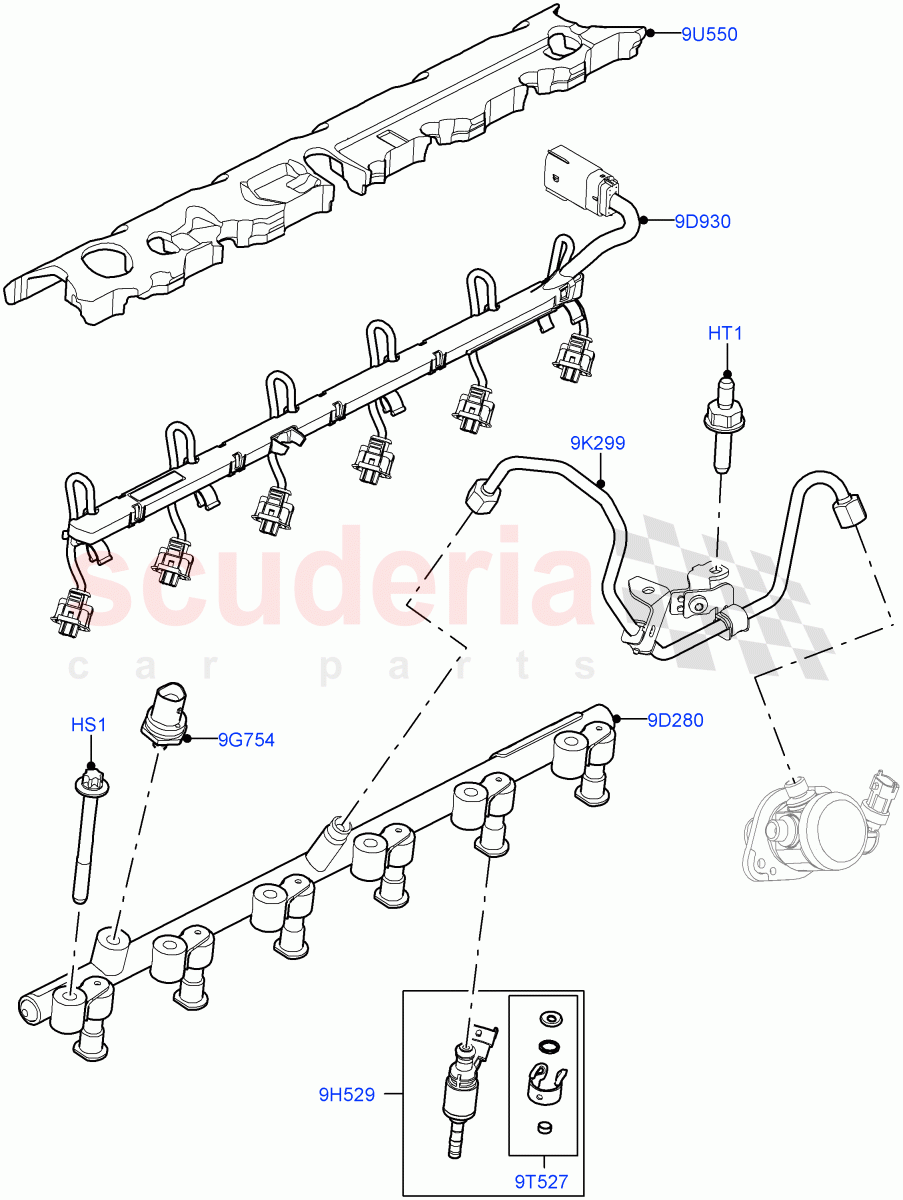

Fuel Injectors And Pipes (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR128535
SCREW
M8 X 75MM / From: MA000001 		- 6 Enquire
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm / From: MA000001 		- 2 Enquire
9D280 LR121767
MANIFOLD - FUEL SUPPLY
From: MA000001 		- 1 Enquire
9D930 LR121768
WIRING - FUEL INJECTORS
Injector Harness / From: MA000001 		- 1 Enquire
9G754 LR121769
SENSOR - FUEL PRESSURE/TEMPERATURE
From: MA000001 		- 1 Enquire
9H529 LR134725
KIT - FUEL INJECTION
Injector Assembly / From: MA000001 		- 6 Enquire
9K299 LR121770
PIPE - FUEL
To Fuel Rail / From: MA000001 		- 1 Enquire
9T527 LR105428
KIT - INJECTOR REFIT
Includes Oring, Teflon Seal, Retainer / From: MA000001 		- 6 Enquire
9U550 LR121774
INSULATOR - FUEL INJECTORS
From: MA000001 		- 1 Enquire
