Name: Front Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)
Rating: 4.4 (1 reviews)

Front Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Front Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)

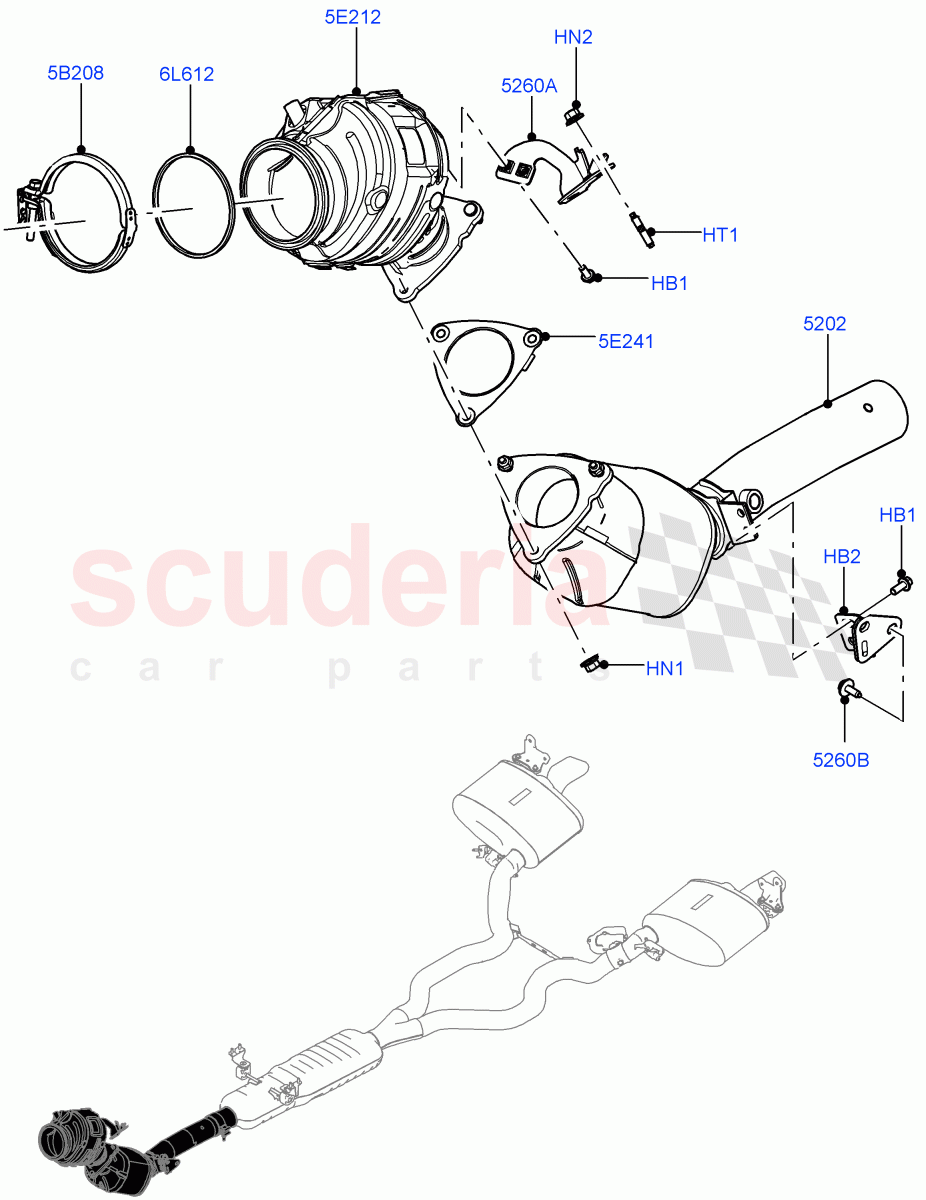

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500060	NUT	$3.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092764	NUT - FLANGED	$3.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141915	CATALYTIC CONVERTER	$2,387.61	To Order
	LR141916	CATALYTIC CONVERTER	$2,317.58	To Order
	LR162156	CATALYTIC CONVERTER	$2,950.34	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR144614	BRACKET	$21.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121351	BRACKET	$20.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121359	CLAMP - EXHAUST	$41.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162991	CATALYTIC CONVERTER	$3,950.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121358	GASKET	$16.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121356	GASKET	$29.05	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: MA000001 IN STOCK	$2.23	4
HB2	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Bracket, Hexagonal Head, Lower, M8 X 21MM / From: MA000001	$1.12	2
HN1	WYH500060	NUT	WYH500060 NUT M8 / From: MA000001	$3.77	3
HN2	LR092764	NUT - FLANGED	LR092764 NUT - FLANGED Bracket, M8, Upper / From: MA000001	$3.54	2
HT1	LR082730	STUD	LR082730 STUD Bracket, M8 X 21.5MM + M8 X 22MM, Upper / From: MA000001	$1.97	2
5B208	LR121359	CLAMP - EXHAUST	LR121359 CLAMP - EXHAUST Turbocharger Outlet / From: MA000001	$41.13	1
5E212	LR162991	CATALYTIC CONVERTER	LR162991 CATALYTIC CONVERTER From: MA000001	$3,950.45	1
5E241	LR121358	GASKET	LR121358 GASKET Outlet / From: MA000001	$16.01	1
6L612	LR121356	GASKET IN STOCK	LR121356 GASKET Turbocharger Outlet / From: MA000001 IN STOCK	$29.05	1
5202	LR141915	CATALYTIC CONVERTER	LR141915 CATALYTIC CONVERTER Stage V European Emissions / From: MA000001 / To: MA316803	$2,387.61	1
5202	LR141916	CATALYTIC CONVERTER	LR141916 CATALYTIC CONVERTER EU6D - Final (Petrol) Emission / From: MA000001 / To: MA316803	$2,317.58	1
5202	LR162156	CATALYTIC CONVERTER	LR162156 CATALYTIC CONVERTER Proconve L6 Emissions / From: MA316804	$2,950.34	1
5202	LR162157	CATALYTIC CONVERTER	LR162157 CATALYTIC CONVERTER EU6D - Final (Petrol) Emission / From: MA316804 / To: MA999999	$2,809.84	1
5202	LR163196	CATALYTIC CONVERTER	LR163196 CATALYTIC CONVERTER EU6D - Final (Petrol) Emission / From: NA000001	$2,914.14	1
5260A	LR144614	BRACKET	LR144614 BRACKET Upper / From: MA000001	$21.98	1
5260B	LR121351	BRACKET	LR121351 BRACKET Lower / From: MA000001	$20.71	1
