Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High, With Extra Engine Cooling System) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High, With Extra Engine Cooling System) ((V)...

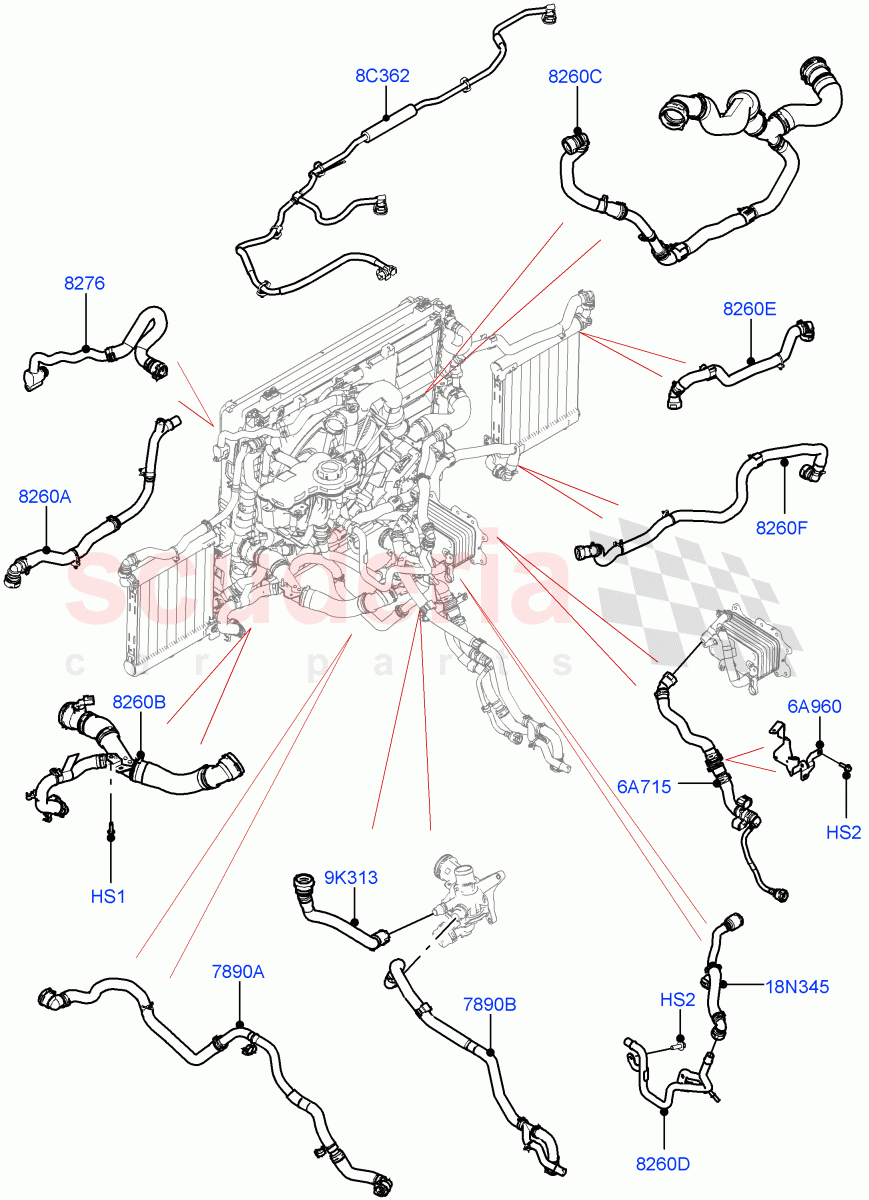

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140893	HOSE - WATER	Enquire	To Order
	LR159429	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140847	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140849	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140867	HOSE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140871	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140911	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140828	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140819	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140971	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140910	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140907	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140897	HOSE - RADIATOR VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140872	HOSE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141017	HOSE - HEATER WATER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	RYG500220	SCREW	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: MA000001	-	1	Enquire
HS2	FS106206	SCREW	FS106206 SCREW Hexagonal Head, M6 X 20MM / From: MA000001	-	3	Enquire
6A715	LR140847	HOSE	LR140847 HOSE Oil Cooler Inlet Pipe / From: MA000001	-	1	Enquire
6A960	LR140849	BRACKET	LR140849 BRACKET Hose Support / From: MA000001	-	1	Enquire
8C362	LR140897	HOSE - RADIATOR VENTILATION	LR140897 HOSE - RADIATOR VENTILATION To Expansion Tank / From: MA000001	-	1	Enquire
9K313	LR140872	HOSE - HEATER WATER	LR140872 HOSE - HEATER WATER Bottom, To Expansion Tank / From: MA000001	-	1	Enquire
18N345	LR141017	HOSE - HEATER WATER	LR141017 HOSE - HEATER WATER Water Inlet / From: MA000001	-	1	Enquire
7890A	LR140867	HOSE - OIL COOLER	LR140867 HOSE - OIL COOLER Inlet / From: MA000001	-	1	Enquire
7890B	LR140871	HOSE - WATER	LR140871 HOSE - WATER Outlet / From: MA000001	-	1	Enquire
8260A	LR140911	HOSE - WATER	LR140911 HOSE - WATER Auxiliary Radiator / From: MA000001	-	1	Enquire
8260B	LR140828	HOSE - RADIATOR	LR140828 HOSE - RADIATOR Bottom / From: MA000001	-	1	Enquire
8260C	LR140819	HOSE - RADIATOR	LR140819 HOSE - RADIATOR Top / From: MA000001	-	1	Enquire
8260D	LR140971	HOSE	LR140971 HOSE Heater / From: MA000001	-	1	Enquire
8260E	LR140910	HOSE - RADIATOR	LR140910 HOSE - RADIATOR Auxiliary Radiator, RH Upper / From: MA000001	-	1	Enquire
8260F	LR140907	HOSE - WATER	LR140907 HOSE - WATER Auxiliary Radiator, RH Lower / From: MA000001	-	1	Enquire
8276	LR140893	HOSE - WATER	LR140893 HOSE - WATER Water Charge Air Cooler / From: MA000001 / To: MA313984	-	1	Enquire
8276	LR159429	HOSE - WATER	LR159429 HOSE - WATER Water Charge Air Cooler / From: MA313985	-	1	Enquire
