Find Your Part

Inlet Manifold (3.0L AJ20P6 Petrol High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Inlet Manifold (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)

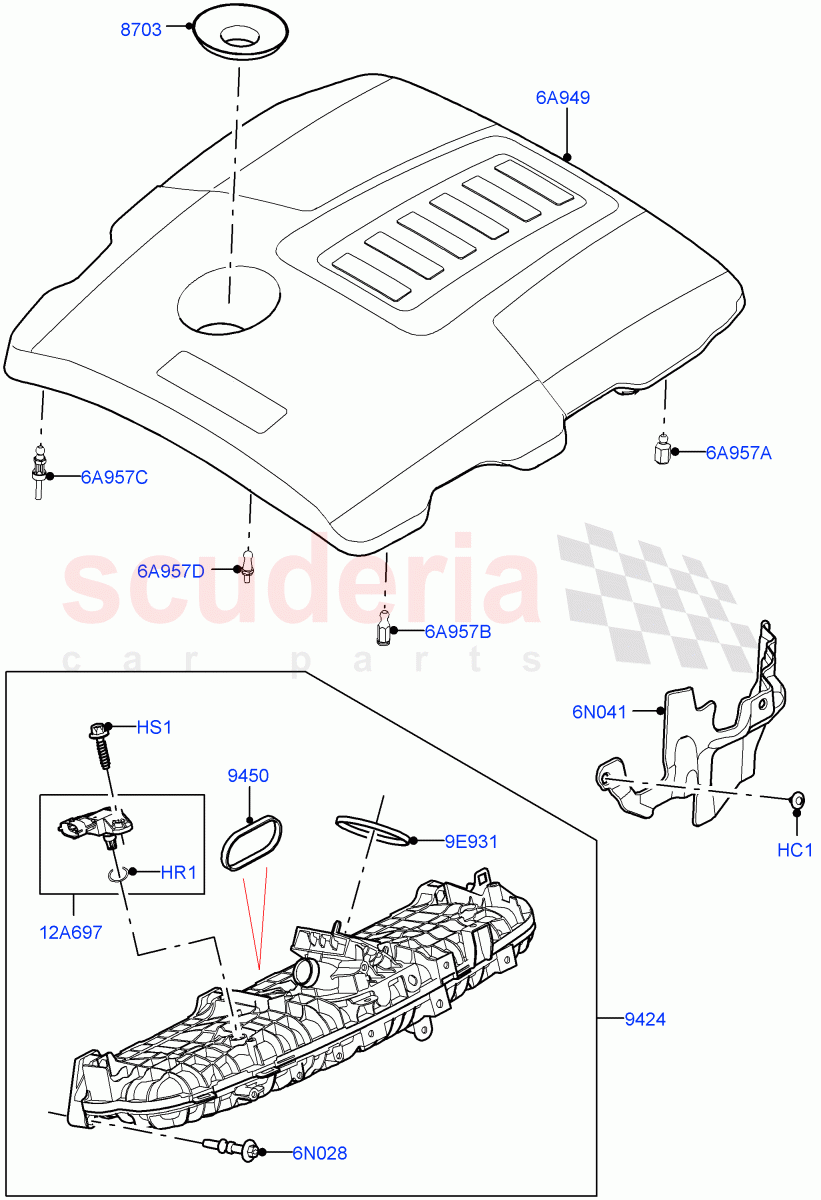

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR125667	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125867	OIL SPILL GAITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121255	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141298	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141276	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122989	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082539	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091895	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025918	STUD - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121374	STUD - SPECIAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR125667	CLIP - TRIM	LR125667 CLIP - TRIM 5.8 X 4.5-8, Insulator / From: MA000001	-	2	Enquire
HR1	LR095783	O-RING	LR095783 O-RING 7.5MM, MAP Sensor / From: MA000001	-	1	Enquire
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor / From: MA000001	-	1	Enquire
6A949	LR141298	COVER - ENGINE TOP	LR141298 COVER - ENGINE TOP Engine / From: MA000001	-	1	Enquire
6A957A	LR082539	PIN	LR082539 PIN Ball Stud, Engine Cover / From: MA000001	-	1	Enquire
6A957B	LR091895	STUD - BALL	LR091895 STUD - BALL Ball Stud, Engine Cover / From: MA000001	-	1	Enquire
6A957C	LR025918	STUD - ENGINE COVER	LR025918 STUD - ENGINE COVER Ball Stud, Engine Cover / From: MA000001	-	1	Enquire
6A957D	LR121374	STUD - SPECIAL	LR121374 STUD - SPECIAL Ball Stud, Engine Cover / From: MA000001	-	1	Enquire
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: MA000001	-	9	Enquire
6N041	LR141276	INSULATOR - CYLINDER HEAD	LR141276 INSULATOR - CYLINDER HEAD LH Side / From: MA000001	-	1	Enquire
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake / From: MA000001	-	1	Enquire
12A697	LR122989	SENSOR - AIR TEMPERATURE & PRESSURE	LR122989 SENSOR - AIR TEMPERATURE & PRESSURE Pressure / From: MA000001	-	1	Enquire
8703	LR125867	OIL SPILL GAITER	LR125867 OIL SPILL GAITER Oil Spill / From: MA000001	-	1	Enquire
9424	LR121255	MANIFOLD - INLET	LR121255 MANIFOLD - INLET From: MA000001	-	1	Enquire
9450	LR091766	GASKET - INTAKE MANIFOLD	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold / From: MA000001	-	6	Enquire

Cylinder Block And Plugs (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)

Cylinder Head (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

Inlet Manifold (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)

Service Engine And Short Block (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)
