Name: Back Door/Tailgate Trim Panels
Rating: 5.0 (1 reviews)

Back Door/Tailgate Trim Panels of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Back Door/Tailgate Trim Panels

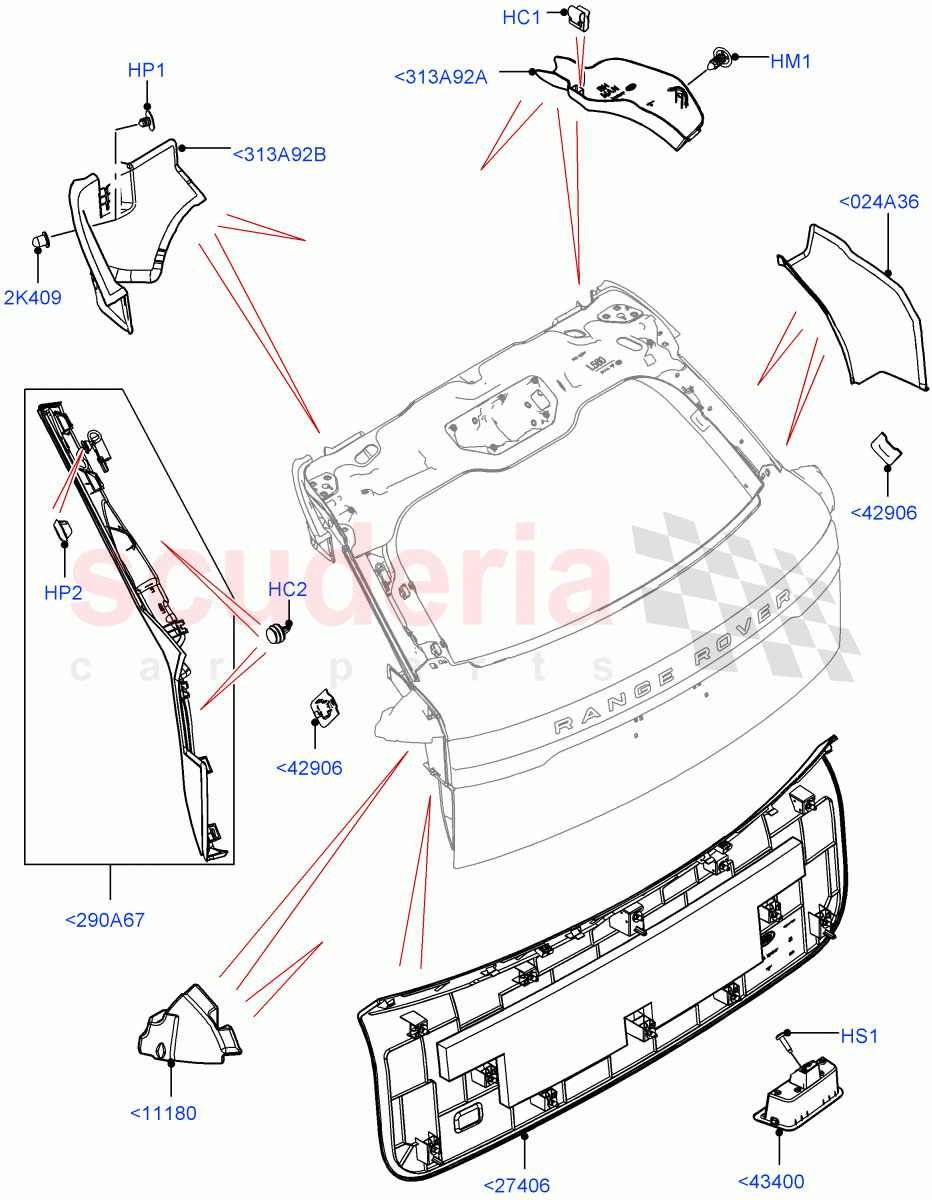

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR080992	CLIP	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035841	CLIP - TRIM - PILLARS	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	$1.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYB000180	PLUG - THREADED	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096543	PLUG - BLANKING	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4648959	SCREW	$4.08	To Order

Photo	Part No	Description	Price (each)	Stock
	SGG000020	GROMMET - TRIM PANEL	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101680	INSULATOR - LUGGAGE COMPARTMENT	$26.64	To Order
	LR101681	INSULATOR - LUGGAGE COMPARTMENT	$26.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092472	PANEL - TAILGATE TRIM	$360.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039102	TRIM - TAILGATE	$14.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092509	HANDLE - PULL	$55.70	To Order
	LR106643	HANDLE - PULL	$55.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR182978	COVER - LAMP ACCESS	$52.15	To Order
	LR182977	COVER - LAMP ACCESS	$52.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093412	MOULDING - TAILGATE	$101.48	To Order
	LR093413	MOULDING - TAILGATE	$101.48	To Order
	LR109364	MOULDING - TAILGATE	$94.60	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092477	COVER - TAILGATE HINGE	$21.29	To Order
	LR092476	COVER - TAILGATE HINGE	$21.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092473	COVER - HINGE	$21.29	To Order
	LR092474	COVER - HINGE	$18.99	To Order
	LR107341	COVER - HINGE	$21.29	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<024A36	LR182978	COVER - LAMP ACCESS	LR182978 COVER - LAMP ACCESS RH, Includes Clips	$52.15	1
<024A36	LR182977	COVER - LAMP ACCESS	LR182977 COVER - LAMP ACCESS LH, Includes Clips	$52.15	1
<290A67	LR093412	MOULDING - TAILGATE	LR093412 MOULDING - TAILGATE Tailgate - Hands Free / RH / To: JA724153	$101.48	1
<290A67	LR093413	MOULDING - TAILGATE	LR093413 MOULDING - TAILGATE Tailgate - Hands Free / LH / To: JA724153	$101.48	1
<290A67	LR109364	MOULDING - TAILGATE	LR109364 MOULDING - TAILGATE Tailgate - Hands Free / LH / From: JA724154 / To: JA770427	$94.60	1
<290A67	LR109365	MOULDING - TAILGATE	LR109365 MOULDING - TAILGATE Tailgate - Hands Free / RH / From: JA724154 / To: JA770427	$97.91	1
<290A67	LR110837	MOULDING - TAILGATE	LR110837 MOULDING - TAILGATE Tailgate-Powered Upper / RH / From: JA770428	$97.91	1
<290A67	LR110836	MOULDING - TAILGATE	LR110836 MOULDING - TAILGATE Tailgate-Powered Upper / LH / From: JA770428	$97.91	1
<313A92A	LR092477	COVER - TAILGATE HINGE	LR092477 COVER - TAILGATE HINGE LH	$21.29	1
<313A92A	LR092476	COVER - TAILGATE HINGE	LR092476 COVER - TAILGATE HINGE RH	$21.29	1
<313A92B	LR092473	COVER - HINGE	LR092473 COVER - HINGE RH / To: JA724910	$21.29	1
<313A92B	LR092474	COVER - HINGE	LR092474 COVER - HINGE LH / To: JA724910	$18.99	1
<313A92B	LR107341	COVER - HINGE	LR107341 COVER - HINGE RH / From: JA724911	$21.29	1
<313A92B	LR107342	COVER - HINGE	LR107342 COVER - HINGE LH / From: JA724911	$21.31	1
<11180	LR101680	INSULATOR - LUGGAGE COMPARTMENT	LR101680 INSULATOR - LUGGAGE COMPARTMENT RH	$26.64	1
<11180	LR101681	INSULATOR - LUGGAGE COMPARTMENT	LR101681 INSULATOR - LUGGAGE COMPARTMENT LH	$26.64	1
<27406	LR092472	PANEL - TAILGATE TRIM	LR092472 PANEL - TAILGATE TRIM	$360.04	1
<42906	LR039102	TRIM - TAILGATE	LR039102 TRIM - TAILGATE	$14.40	3
<43400	LR092509	HANDLE - PULL	LR092509 HANDLE - PULL To: JA701566	$55.70	1
<43400	LR106643	HANDLE - PULL	LR106643 HANDLE - PULL From: JA701567	$55.70	1
HC1	LR080992	CLIP	LR080992 CLIP 3-3.2+1.5-2	$1.61	2
HC2	LR035841	CLIP - TRIM - PILLARS	LR035841 CLIP - TRIM - PILLARS Tailgate - Hands Free / Clip Lantern 7.1 X 1.5 - 3 + 2.2	$2.20	14
HM1	RZM500070	PIN - SPECIAL IN STOCK	RZM500070 PIN - SPECIAL 6.4 X 20.4, Push Pin IN STOCK	$1.07	2
HP1	AYB000180	PLUG - THREADED	AYB000180 PLUG - THREADED With Conventional Tailgate / 6.35 X 11.0MM	$1.01	4
HP2	LR096543	PLUG - BLANKING	LR096543 PLUG - BLANKING With Conventional Tailgate / 16-20 x 0.75-4	$2.98	2
HS1	4648959	SCREW	4648959 SCREW M6 X 20MM, Torx	$4.08	1
2K409	SGG000020	GROMMET - TRIM PANEL	SGG000020 GROMMET - TRIM PANEL	$1.00	4
