Gear Change-Automatic Transmission (2.0L I4 DSL MID DOHC AJ200, 8 Speed Auto Trans ZF 8HP45, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 DSL HIGH DOHC AJ200) ((V) TOLA999999) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Gear Change-Automatic Transmission (2.0L I4 DSL MID DOHC AJ200, 8 Speed Auto Trans ZF 8HP45, 2.0L...

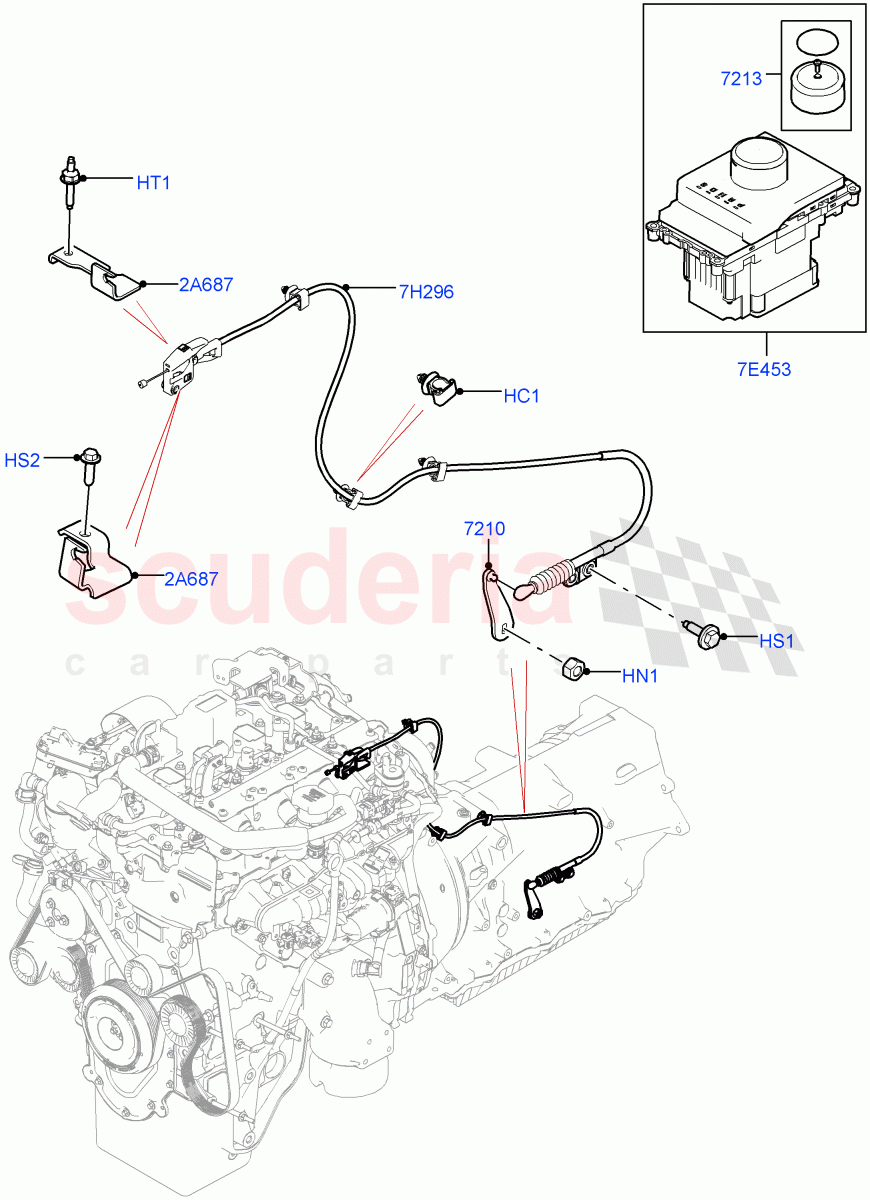

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	Enquire	To Order
	LR011519	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYH500020	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133081	STUD	Enquire	To Order
	LR133081	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092831	LEVER - GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093842	KNOB - GEAR CHANGE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082652	BRACKET - CABLE SUPPORT	Enquire	To Order
	LR141630	BRACKET - CABLE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090982	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order
	LR090983	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order
	LR117070	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092835	CABLE - SELECTOR LEVER CONTROL	Enquire	To Order
	LR092833	CABLE - SELECTOR LEVER CONTROL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR011519	CLIP	LR011519 CLIP 2.0L I4 Mid DOHC AJ200 Petrol / 9.5 X 6 X 2	-	3	Enquire
HC1	LR011519	CLIP	LR011519 CLIP 2.0L I4 DSL HIGH DOHC AJ200 / 9.5 X 6 X 2	-	5	Enquire
HN1	VYH500020	NUT - HEX.	VYH500020 NUT - HEX. M8 x 1.0MM	-	1	Enquire
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM, To Transmission	-	2	Enquire
HS2	LR071774	SCREW	LR071774 SCREW 2.0L I4 DSL MID DOHC AJ200 / Hexagonal Head, M6 X 20MM	-	1	Enquire
HT1	LR133081	STUD	LR133081 STUD 2.0L I4 High DOHC AJ200 Petrol / M6 X 26MM	-	1	Enquire
HT1	LR133081	STUD	LR133081 STUD 2.0L I4 Mid DOHC AJ200 Petrol / M6 X 26MM / From: MA000001	-	1	Enquire
2A687	LR082652	BRACKET - CABLE SUPPORT	LR082652 BRACKET - CABLE SUPPORT 2.0L I4 DSL MID DOHC AJ200	-	1	Enquire
2A687	LR141630	BRACKET - CABLE SUPPORT	LR141630 BRACKET - CABLE SUPPORT 2.0L I4 High DOHC AJ200 Petrol	-	1	Enquire
7E453	LR090982	MODULE - TRANSFER SHIFT CONTROL	LR090982 MODULE - TRANSFER SHIFT CONTROL LHD / To: JA768059	-	1	Enquire
7E453	LR090983	MODULE - TRANSFER SHIFT CONTROL	LR090983 MODULE - TRANSFER SHIFT CONTROL RHD / To: JA768059	-	1	Enquire
7E453	LR117070	MODULE - TRANSFER SHIFT CONTROL	LR117070 MODULE - TRANSFER SHIFT CONTROL LHD / From: JA768060 / To: LA999999	-	1	Enquire
7E453	LR117071	MODULE - TRANSFER SHIFT CONTROL	LR117071 MODULE - TRANSFER SHIFT CONTROL RHD / From: JA768060 / To: LA999999	-	1	Enquire
7H296	LR092835	CABLE - SELECTOR LEVER CONTROL	LR092835 CABLE - SELECTOR LEVER CONTROL 2.0L I4 Mid DOHC AJ200 Petrol	-	1	Enquire
7H296	LR092833	CABLE - SELECTOR LEVER CONTROL	LR092833 CABLE - SELECTOR LEVER CONTROL 2.0L I4 DSL MID DOHC AJ200	-	1	Enquire
7210	LR092831	LEVER - GEAR SHIFT	LR092831 LEVER - GEAR SHIFT	-	1	Enquire
7213	LR093842	KNOB - GEAR CHANGE LEVER	LR093842 KNOB - GEAR CHANGE LEVER To: LA999999	-	1	Enquire
