Name: Fuel Lines (Front) (3.0L AJ20D6 Diesel High) ((V) FROMMA000001)
Rating: 4.5 (1 reviews)

View All

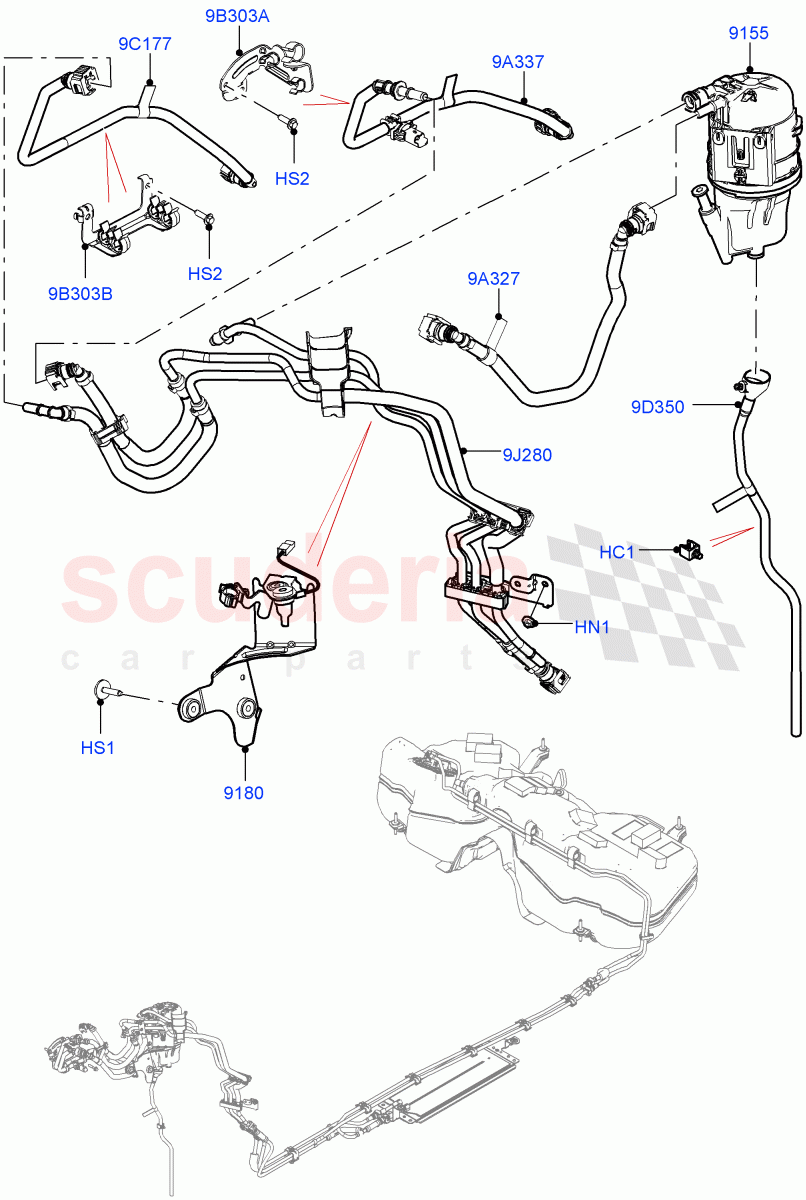

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141317	FILTER - FUEL - PRIMARY	$72.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141321	BRACKET - FUEL FILTER	$82.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141319	TUBE - FUEL FILTER TO FUEL PUMP	$69.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144912	TUBE - FUEL FILTER TO FUEL PUMP	$76.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125509	PIPE - FUEL	$41.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141325	TUBE - FUEL	$26.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141380	PIPE - FUEL	$96.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125505	BRACKET - FUEL TUBE SUPPORT	$54.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125507	BRACKET - FUEL TUBE SUPPORT	$37.52	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE Single / From: MA000001	$3.36	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 / From: MA000001 IN STOCK	$1.04	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: MA000001	$4.03	3
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: MA000001	$2.23	4
9A327	LR141319	TUBE - FUEL FILTER TO FUEL PUMP	LR141319 TUBE - FUEL FILTER TO FUEL PUMP To Fuel Filter / From: MA000001	$69.95	1
9A337	LR144912	TUBE - FUEL FILTER TO FUEL PUMP	LR144912 TUBE - FUEL FILTER TO FUEL PUMP Pump Feed / From: MA000001	$76.69	1
9B303A	LR125505	BRACKET - FUEL TUBE SUPPORT	LR125505 BRACKET - FUEL TUBE SUPPORT For Fuel Tube, Upper / From: MA000001	$54.90	1
9B303B	LR125507	BRACKET - FUEL TUBE SUPPORT	LR125507 BRACKET - FUEL TUBE SUPPORT For Fuel Tube, Lower / From: MA000001	$37.52	1
9C177	LR125509	PIPE - FUEL	LR125509 PIPE - FUEL Fuel Pump / From: MA000001	$41.47	1
9D350	LR141325	TUBE - FUEL	LR141325 TUBE - FUEL Drain / From: MA000001	$26.03	1
9J280	LR141380	PIPE - FUEL	LR141380 PIPE - FUEL From: MA000001	$96.57	1
9155	LR141317	FILTER - FUEL - PRIMARY	LR141317 FILTER - FUEL - PRIMARY Less Bracket / From: MA000001	$72.57	1
9180	LR141321	BRACKET - FUEL FILTER	LR141321 BRACKET - FUEL FILTER For Fuel Filter / From: MA000001	$82.30	1

Fuel Lines (Front) (3.0L Aj20D6 Diesel High) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]
