Inlet Manifold (3.0L Aj20D6 Diesel High) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Inlet Manifold (3.0L AJ20D6 Diesel High) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR095783 O-RING $4.47 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR130401 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
LR125867 OIL SPILL GAITER $12.52 To Order
Photo Part No Description Price (each) Stock
LR125326 MANIFOLD - INLET $606.51 To Order
Photo Part No Description Price (each) Stock
LR133631 GASKET - INTAKE MANIFOLD $13.17 To Order
Photo Part No Description Price (each) Stock
LR141297 COVER - ENGINE TOP $266.62 To Order
LR161231 COVER - ENGINE TOP $266.62 To Order
Photo Part No Description Price (each) Stock
LR074085 BOLT - SPECIAL $4.84 To Order
Photo Part No Description Price (each) Stock
LR133632 GASKET - THROTTLE $68.79 To Order
Photo Part No Description Price (each) Stock
LR090375 SENSOR - AIR TEMPERATURE & PRESSURE $120.25 To Order
Photo Part No Description Price (each) Stock
LR090553 STUD - SPECIAL $6.62 To Order
Photo Part No Description Price (each) Stock
LR038978 STUD - BALL $3.65 To Order
Photo Part No Description Price (each) Stock
LR025918 STUD - ENGINE COVER $6.51 To Order
Photo Part No Description Price (each) Stock
LR126018 STUD - BALL $4.32 To Order
Photo Part No Description Price (each) Stock
LR125330 BRACKET - MANIFOLD $38.94 To Order
Photo Part No Description Price (each) Stock
LR125331 BRACKET - MANIFOLD $37.52 To Order
Photo Part No Description Price (each) Stock
LR125332 BRACKET - MANIFOLD $43.37 To Order
View All

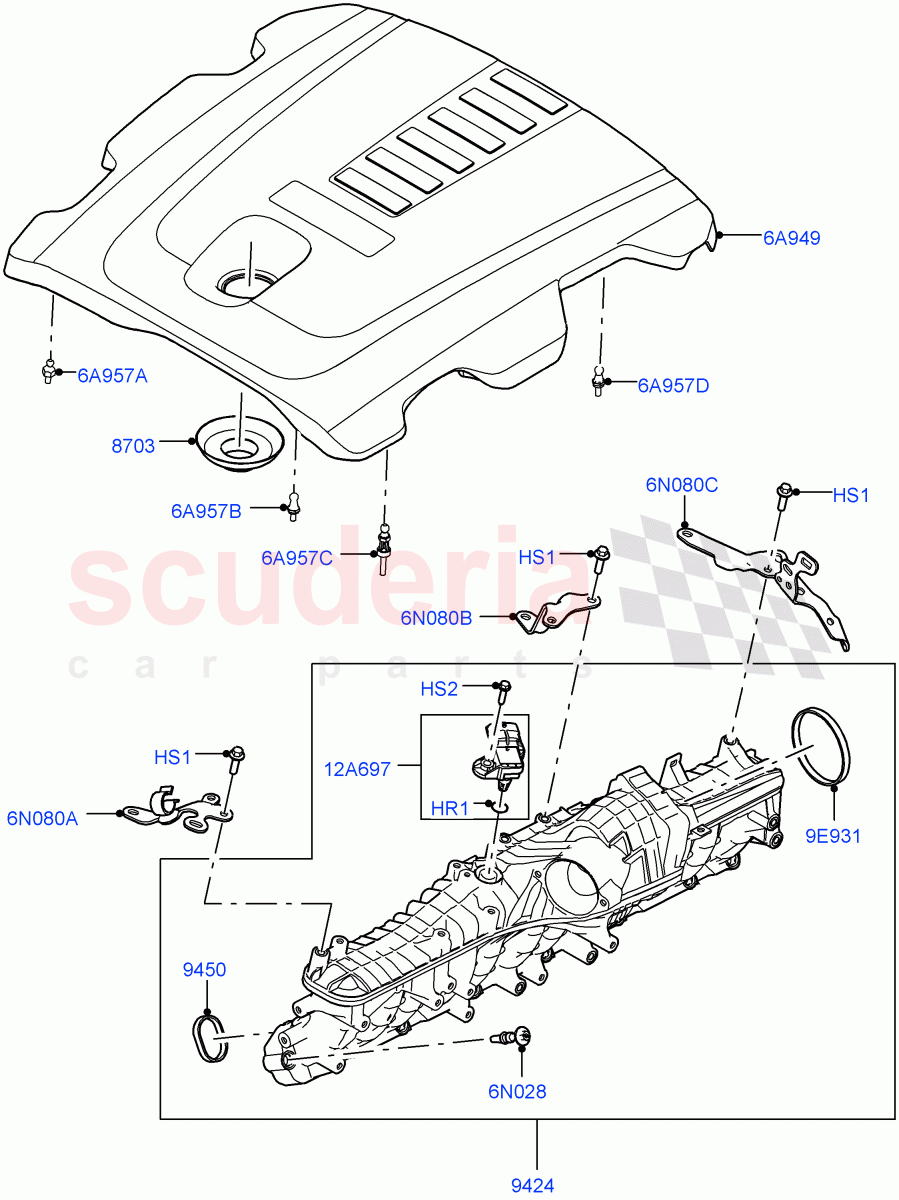

Inlet Manifold (3.0L AJ20D6 Diesel High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR095783
O-RING
7.5MM, MAP Sensor / From: MA000001
IN STOCK 		$4.47 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$1.54 7
HS2 LR130401
SCREW
Hexagonal Head, M5 x 20MM, MAP Sensor / From: MA000001 		$0.76 1
6A949 LR141297
COVER - ENGINE TOP
Engine / From: MA000001 / To: MA320271 		$266.62 1
6A949 LR161231
COVER - ENGINE TOP
Engine / From: MA320272 		$266.62 1
6A957A LR090553
STUD - SPECIAL
Ball Stud, Engine Cover / From: MA000001 		$6.62 1
6A957B LR038978
STUD - BALL
Ball Stud, Engine Cover / From: MA000001 		$3.65 1
6A957C LR025918
STUD - ENGINE COVER
Ball Stud, Engine Cover / From: MA000001 		$6.51 1
6A957D LR126018
STUD - BALL
Ball Stud, Engine Cover / From: MA000001 		$4.32 1
6N028 LR074085
BOLT - SPECIAL
M6 x 42MM, Manifold To Cylinder Head / From: MA000001 		$4.84 14
6N080A LR125330
BRACKET - MANIFOLD
Front / From: MA000001 		$38.94 1
6N080B LR125331
BRACKET - MANIFOLD
Centre / From: MA000001 		$37.52 1
6N080C LR125332
BRACKET - MANIFOLD
Rear / From: MA000001 		$43.37 1
9E931 LR133632
GASKET - THROTTLE
Throttle Body To Intake / From: MA000001 		$68.79 1
12A697 LR090375
SENSOR - AIR TEMPERATURE & PRESSURE
Pressure / From: MA000001 		$120.25 1
8703 LR125867
OIL SPILL GAITER
Oil Spill / From: MA000001 		$12.52 1
9424 LR125326
MANIFOLD - INLET
From: MA000001 		$606.51 1
9450 LR133631
GASKET - INTAKE MANIFOLD
Manifold To Cylinder Head / From: MA000001 		$13.17 12
