Instrument Panel (External Components, Upper) (Less Head Up Display) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Instrument Panel (External Components, Upper) (Less Head Up Display)

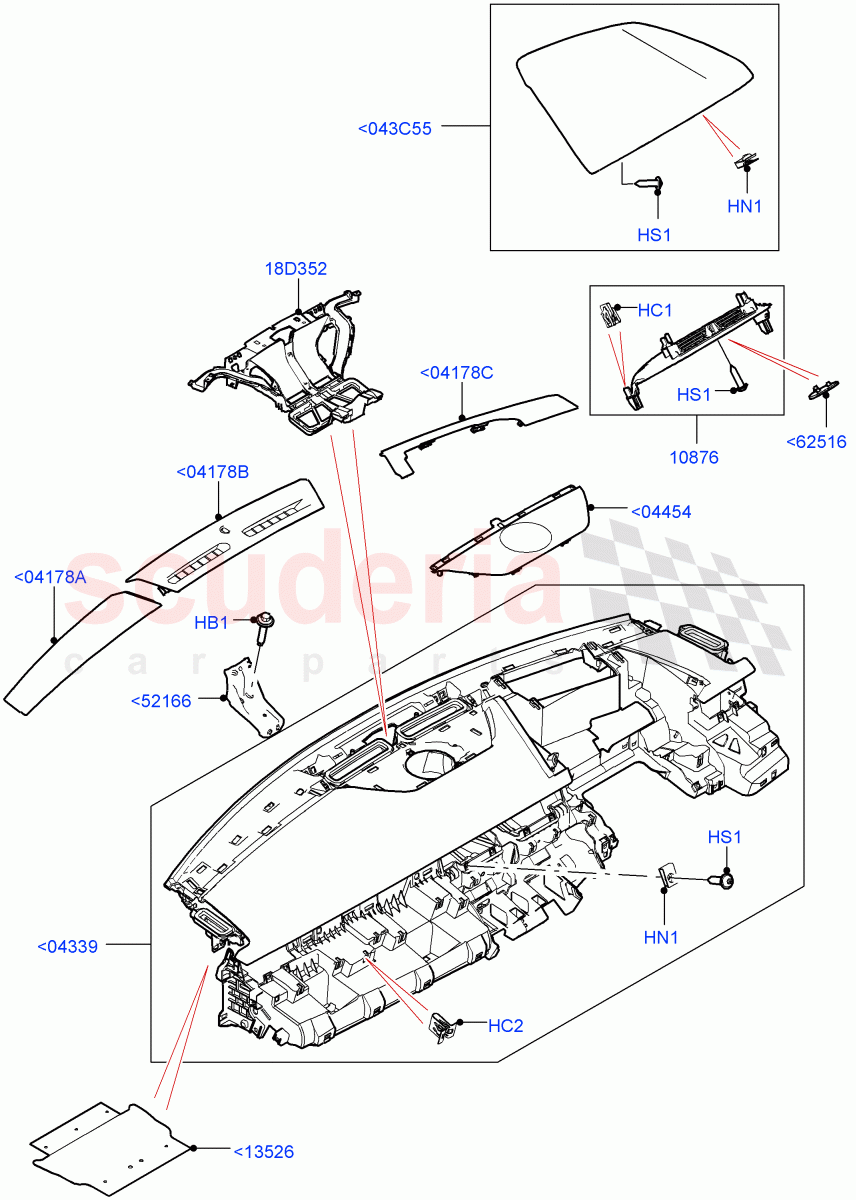

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR094705	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096461	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038293	CLIP - CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006214	NUT	Enquire	To Order
	LR006214	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007312	SCREW	Enquire	To Order
	LR007312	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094757	COVER - INSTRUMENT CLUSTER	Enquire	To Order
	LR094758	COVER - INSTRUMENT CLUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094691	PANEL - INSTRUMENT - UPPER	Enquire	To Order
	LR094693	PANEL - INSTRUMENT - UPPER	Enquire	To Order
	LR094690	PANEL - INSTRUMENT - UPPER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR094714	GRILLE - INSTRUMENT PANEL SPEAKER	Enquire	To Order
	LR154226	GRILLE - INSTRUMENT PANEL SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105967	CHUTE - AIR BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094694	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088797	INSERT - INSTRUMENT CLUSTER MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118384	SPLITTER - AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094734	COVER - WINDSCREEN DEFROST	Enquire	To Order
	LR094729	COVER - WINDSCREEN DEFROST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094730	COVER - WINDSCREEN DEFROST	Enquire	To Order
	LR108540	COVER - WINDSCREEN DEFROST	Enquire	To Order
	LR131239	COVER - WINDSCREEN DEFROST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094735	COVER - WINDSCREEN DEFROST	Enquire	To Order
	LR094728	COVER - WINDSCREEN DEFROST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094696	COVER - INSTRUMENT CLUSTER	Enquire	To Order
	LR094698	COVER - INSTRUMENT CLUSTER	Enquire	To Order
	LR094695	COVER - INSTRUMENT CLUSTER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<043C55	LR094696	COVER - INSTRUMENT CLUSTER	LR094696 COVER - INSTRUMENT CLUSTER RHD, With Leather Facia / To: LA240162	-	1	Enquire
<043C55	LR094698	COVER - INSTRUMENT CLUSTER	LR094698 COVER - INSTRUMENT CLUSTER RHD, With TPO/Leather Facia / To: LA240162	-	1	Enquire
<043C55	LR094695	COVER - INSTRUMENT CLUSTER	LR094695 COVER - INSTRUMENT CLUSTER LHD, With Leather Facia / To: LA240162	-	1	Enquire
<043C55	LR094697	COVER - INSTRUMENT CLUSTER	LR094697 COVER - INSTRUMENT CLUSTER LHD, With TPO/Leather Facia / To: LA240162	-	1	Enquire
<043C55	LR132723	COVER - INSTRUMENT CLUSTER	LR132723 COVER - INSTRUMENT CLUSTER LHD, With Leather Facia / From: LA240163	-	1	Enquire
<043C55	LR132727	COVER - INSTRUMENT CLUSTER	LR132727 COVER - INSTRUMENT CLUSTER RHD, With Leather Facia / From: LA240163	-	1	Enquire
<043C55	LR132729	COVER - INSTRUMENT CLUSTER	LR132729 COVER - INSTRUMENT CLUSTER LHD, With TPO/PVC Facia / From: LA240163	-	1	Enquire
<043C55	LR132730	COVER - INSTRUMENT CLUSTER	LR132730 COVER - INSTRUMENT CLUSTER RHD, With TPO/PVC Facia / From: LA240163	-	1	Enquire
<04178A	LR094734	COVER - WINDSCREEN DEFROST	LR094734 COVER - WINDSCREEN DEFROST RHD / LH - Passenger	-	1	Enquire
<04178A	LR094729	COVER - WINDSCREEN DEFROST	LR094729 COVER - WINDSCREEN DEFROST LHD / RH - Passenger	-	1	Enquire
<04178B	LR094730	COVER - WINDSCREEN DEFROST	LR094730 COVER - WINDSCREEN DEFROST Centre / To: JA709143	-	1	Enquire
<04178B	LR108540	COVER - WINDSCREEN DEFROST	LR108540 COVER - WINDSCREEN DEFROST Centre / From: JA709144 / To: KA220286	-	1	Enquire
<04178B	LR131239	COVER - WINDSCREEN DEFROST	LR131239 COVER - WINDSCREEN DEFROST Centre / From: KA220287	-	1	Enquire
<04178C	LR094735	COVER - WINDSCREEN DEFROST	LR094735 COVER - WINDSCREEN DEFROST RHD / RH - Driver	-	1	Enquire
<04178C	LR094728	COVER - WINDSCREEN DEFROST	LR094728 COVER - WINDSCREEN DEFROST LHD / LH - Driver	-	1	Enquire
<04339	LR094691	PANEL - INSTRUMENT - UPPER	LR094691 PANEL - INSTRUMENT - UPPER RHD, With Leather Facia / To: LA240162	-	1	Enquire
<04339	LR094693	PANEL - INSTRUMENT - UPPER	LR094693 PANEL - INSTRUMENT - UPPER RHD, With TPO/PVC Facia / To: LA240162	-	1	Enquire
<04339	LR094690	PANEL - INSTRUMENT - UPPER	LR094690 PANEL - INSTRUMENT - UPPER LHD, With Leather Facia / To: LA240162	-	1	Enquire
<04339	LR094692	PANEL - INSTRUMENT - UPPER	LR094692 PANEL - INSTRUMENT - UPPER LHD, With TPO/Leather Facia / To: LA240162	-	1	Enquire
<04339	LR132715	PANEL - INSTRUMENT - UPPER	LR132715 PANEL - INSTRUMENT - UPPER LHD, With Leather Facia / From: LA240163	-	1	Enquire
<04339	LR132716	PANEL - INSTRUMENT - UPPER	LR132716 PANEL - INSTRUMENT - UPPER RHD, With Leather Facia / From: LA240163	-	1	Enquire
<04339	LR132719	PANEL - INSTRUMENT - UPPER	LR132719 PANEL - INSTRUMENT - UPPER LHD, With TPO/PVC Facia / From: LA240163	-	1	Enquire
<04339	LR132720	PANEL - INSTRUMENT - UPPER	LR132720 PANEL - INSTRUMENT - UPPER RHD, With TPO/PVC Facia / From: LA240163	-	1	Enquire
<04454	LR094714	GRILLE - INSTRUMENT PANEL SPEAKER	LR094714 GRILLE - INSTRUMENT PANEL SPEAKER Centre / To: LA293137	-	1	Enquire
<04454	LR154226	GRILLE - INSTRUMENT PANEL SPEAKER	LR154226 GRILLE - INSTRUMENT PANEL SPEAKER Centre / From: LA293138	-	1	Enquire
<13526	LR105967	CHUTE - AIR BAG	LR105967 CHUTE - AIR BAG	-	1	Enquire
<52166	LR094694	BRACKET - SUPPORT	LR094694 BRACKET - SUPPORT	-	2	Enquire
<62516	LR088797	INSERT - INSTRUMENT CLUSTER MOULDING	LR088797 INSERT - INSTRUMENT CLUSTER MOULDING	-	1	Enquire
HB1	LR094705	BOLT AND WASHER - HEX.HEAD	LR094705 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M8 X 30MM	-	2	Enquire
HC1	LR096461	CLIP	LR096461 CLIP Instrument Cluster	-	4	Enquire
HC2	LR038293	CLIP - CENTRE CONSOLE	LR038293 CLIP - CENTRE CONSOLE 1.35 X 6 X 22 X 0.7 - 1.2	-	23	Enquire
HN1	LR006214	NUT	LR006214 NUT 4.2 X 2.25 - 3, Instrument Cluster	-	5	Enquire
HN1	LR006214	NUT	LR006214 NUT 4.2 X 2.25 - 3	-	19	Enquire
HS1	LR007312	SCREW	LR007312 SCREW 4.2 X 19MM, Instrument Cluster	-	1	Enquire
HS1	LR007312	SCREW	LR007312 SCREW 4.2 X 19MM	-	16	Enquire
18D352	LR118384	SPLITTER - AIR DUCT	LR118384 SPLITTER - AIR DUCT	-	1	Enquire
10876	LR094757	COVER - INSTRUMENT CLUSTER	LR094757 COVER - INSTRUMENT CLUSTER LHD	-	1	Enquire
10876	LR094758	COVER - INSTRUMENT CLUSTER	LR094758 COVER - INSTRUMENT CLUSTER RHD	-	1	Enquire
