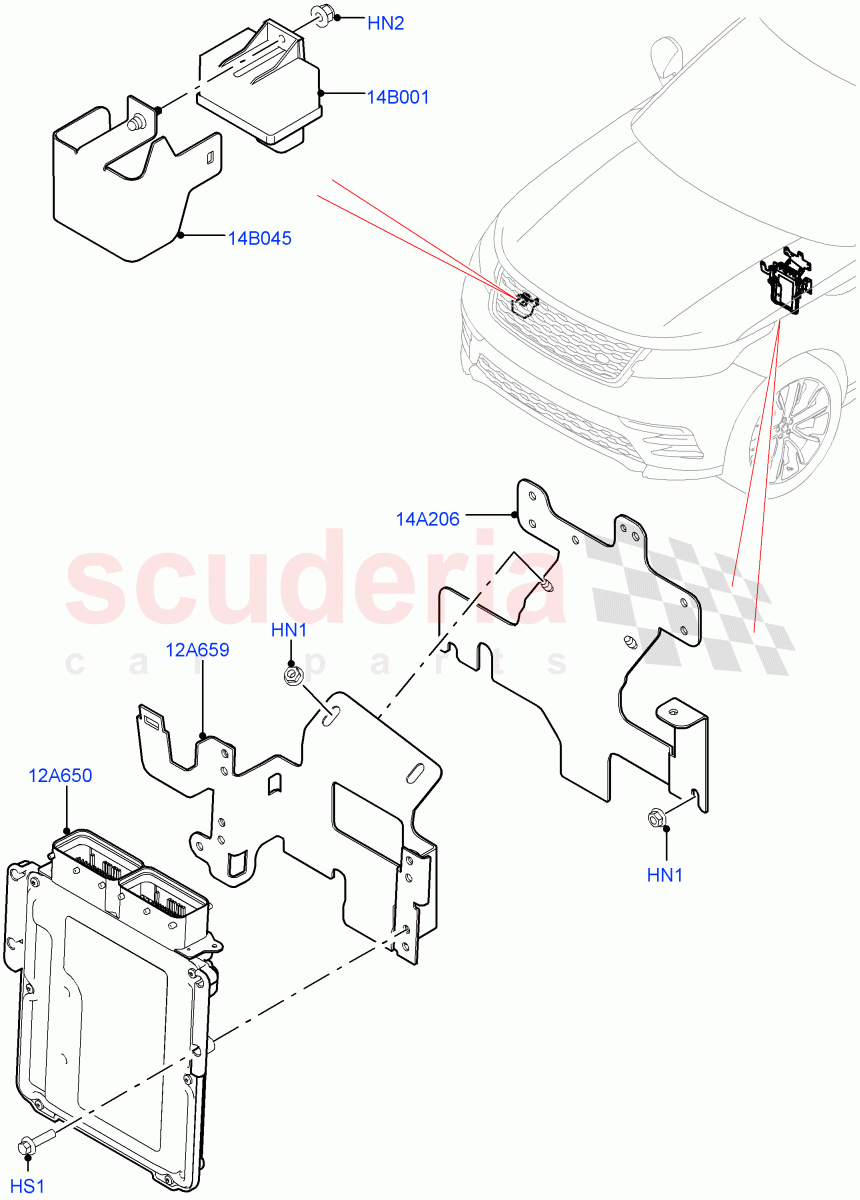

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091843	BRACKET - ENGINE CONTROL MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091852	BRACKET - ENGINE CONTROL MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082464	CONTROL UNIT - GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091850	ADAPTOR - TYRE REPAIR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	FN106042	NUT	FN106042 NUT Frame To Body, Hexagonal Head, M6	-	2	Enquire
HN2	FY106046	NUT - HEX.	FY106046 NUT - HEX. Hexagonal Head, M6	-	1	Enquire
HS1	FS106256	SCREW	FS106256 SCREW M6 x 25MM, Mounting Module	-	4	Enquire
12A650	LR098528	MODULE-ENGINE CONTROL	LR098528 MODULE-ENGINE CONTROL Engine / To: JA999999	-	1	Enquire
12A650	LR117874	MODULE-ENGINE CONTROL	LR117874 MODULE-ENGINE CONTROL EU6D Diesel + DPF Emissions / Engine / From: KA000001	-	1	Enquire
12A650	LR117875	MODULE-ENGINE CONTROL	LR117875 MODULE-ENGINE CONTROL EU2 / Engine / From: KA000001	-	1	Enquire
12A650	LR138433	MODULE-ENGINE CONTROL	LR138433 MODULE-ENGINE CONTROL Engine / From: JA757654 / To: JA999999	-	1	Enquire
12A659	LR091843	BRACKET - ENGINE CONTROL MODULE	LR091843 BRACKET - ENGINE CONTROL MODULE	-	1	Enquire
14A206	LR091852	BRACKET - ENGINE CONTROL MODULE	LR091852 BRACKET - ENGINE CONTROL MODULE Module	-	1	Enquire
14B001	LR082464	CONTROL UNIT - GLOW PLUG	LR082464 CONTROL UNIT - GLOW PLUG Glow Plug, Main Unit	-	1	Enquire
14B045	LR091850	ADAPTOR - TYRE REPAIR	LR091850 ADAPTOR - TYRE REPAIR Shield	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Engine Modules And Sensors (3.0 V6 Diesel, Rhd)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]
