View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR014164	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013148	FILTER - ENGINE OIL - ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013162	SEAL - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013161	SEAL - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013147	COVER - OIL FILTER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013151	O-RING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR014164	BOLT - SPECIAL	LR014164 BOLT - SPECIAL Oil Filter Housing	-	6	Enquire
6A832	LR013147	COVER - OIL FILTER HOUSING	LR013147 COVER - OIL FILTER HOUSING Oil Filter Housing	-	1	Enquire
6B624	LR124259	OIL FILTER AND COOLER	LR124259 OIL FILTER AND COOLER To: KA793965	-	1	Enquire
6B624	LR124259	OIL FILTER AND COOLER	LR124259 OIL FILTER AND COOLER From: KA793966	-	1	Enquire
6K649	LR013151	O-RING	LR013151 O-RING Oil Cooler Hose, Top	-	1	Enquire
6424A	LR013162	SEAL - OIL COOLER	LR013162 SEAL - OIL COOLER From Engine To Oil Filter Housing,	-	1	Enquire
6424B	LR013161	SEAL - OIL COOLER	LR013161 SEAL - OIL COOLER From Engine To Oil Filter Housing,	-	3	Enquire
6731	LR013148	FILTER - ENGINE OIL - ELEMENT	LR013148 FILTER - ENGINE OIL - ELEMENT Element And Seal	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

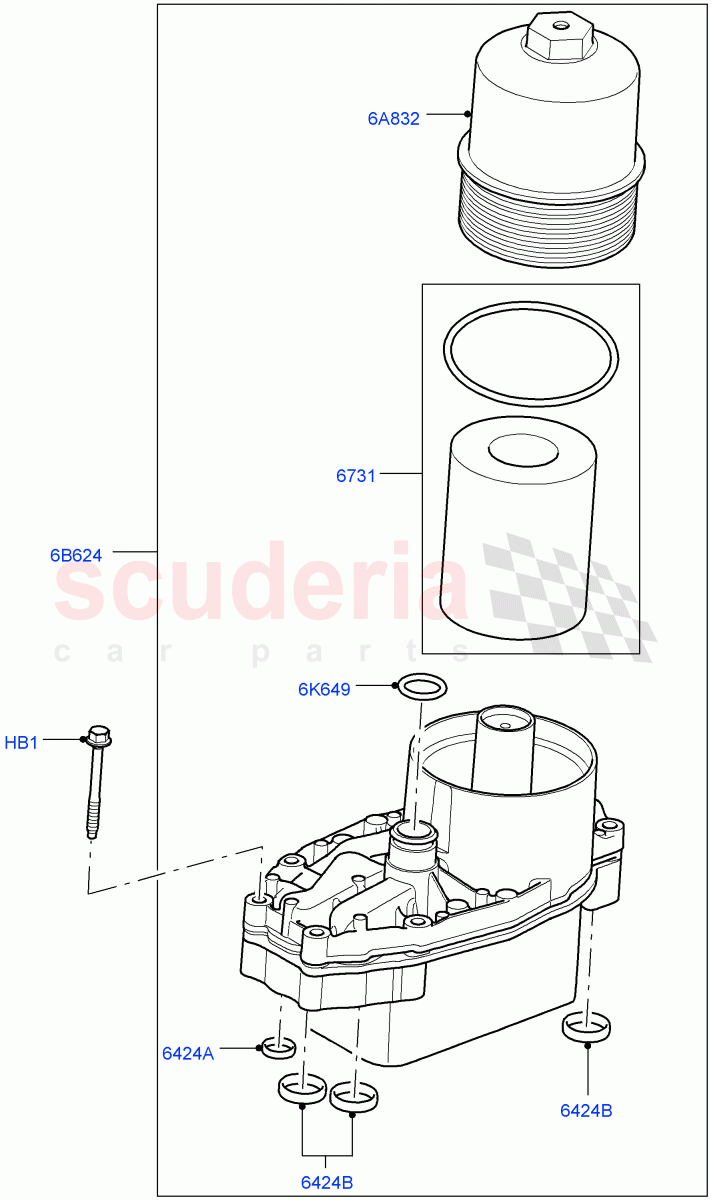

Oil Cooler And Filter (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]
