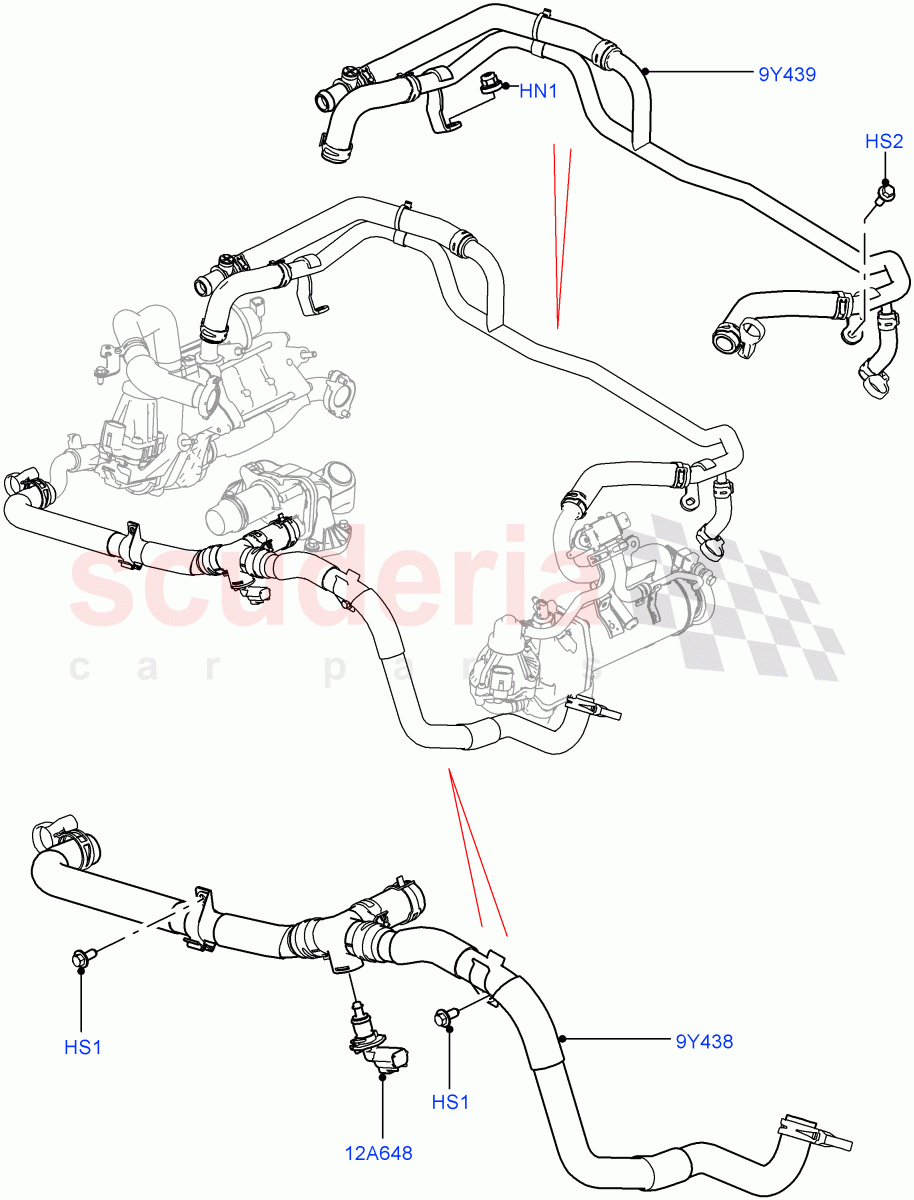

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR081465	HOSE - EGR COOLER	$84.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.61	1
HS1	BYP500170	SCREW IN STOCK	BYP500170 SCREW Hexagonal Head, M6 x 14MM IN STOCK	$1.19	2
HS2	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK	$1.19	1
9Y438	LR081465	HOSE - EGR COOLER	LR081465 HOSE - EGR COOLER EGR Cooler, Inlet Tube	$84.11	1
9Y439	LR100362	HOSE - EGR COOLER	LR100362 HOSE - EGR COOLER Fuel Heater W/Pk Heat With Remote / From EGR Cooler To Heater Inlet, Outlet Tube	$123.82	1
9Y439	LR091907	HOSE - EGR COOLER	LR091907 HOSE - EGR COOLER With Ptc Heater / From EGR Cooler To Heater Inlet, Outlet Tube	$147.79	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	1
