Name: Pulleys And Drive Belts (Front) (3.0 V6 Diesel)
Rating: 5.0 (1 reviews)

View All

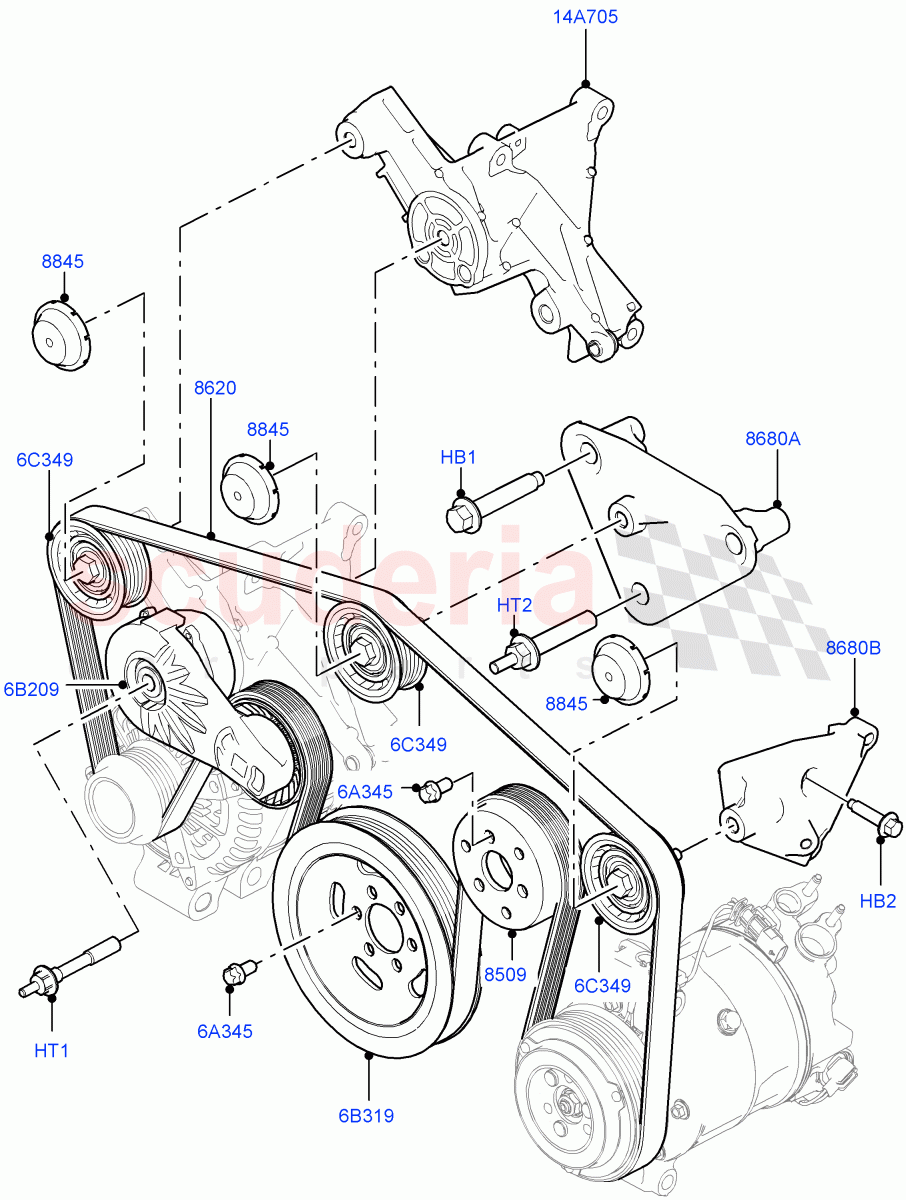

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR092128	BOLT	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500290	BOLT - HEX.HEAD	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094000	STUD	$5.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003476	STUD	$5.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071880	PULLEY - WATER PUMP	$19.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091607	BELT - ACCESSORY DRIVE	$67.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	1406627	BOLT - HEX.HEAD	$1.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071035	TENSIONER - DRIVE BELT	$150.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067312	PULLEY - CRANKSHAFT	$376.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091604	PULLEY - IDLER	$65.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092942	BRACKET - IDLER PULLEY	$97.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091602	BRACKET - IDLER PULLEY	$169.14	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR092128	BOLT	LR092128 BOLT M12 X 60MM	$3.53	2
HB2	RYG500290	BOLT - HEX.HEAD IN STOCK	RYG500290 BOLT - HEX.HEAD Hexagonal Head, M8 x 30MM IN STOCK	$0.50	3
HT1	LR094000	STUD	LR094000 STUD Bracket, M10X65, M6 x 15MM, Tensioner	$5.51	1
HT2	LR003476	STUD	LR003476 STUD M12 X 60MM	$5.52	1
6A345	1406627	BOLT - HEX.HEAD IN STOCK	1406627 BOLT - HEX.HEAD M8 X 14MM, Pulley IN STOCK	$1.84	9
6B209	LR071035	TENSIONER - DRIVE BELT	LR071035 TENSIONER - DRIVE BELT Drive Belt	$150.69	1
6B319	LR067312	PULLEY - CRANKSHAFT	LR067312 PULLEY - CRANKSHAFT Pulley And Damper Assembly	$376.59	1
6C349	LR091604	PULLEY - IDLER	LR091604 PULLEY - IDLER Drive Belt	$65.30	3
14A705	LR091602	BRACKET - IDLER PULLEY	LR091602 BRACKET - IDLER PULLEY RH, With Bolts And Washers	$169.14	1
8509	LR071880	PULLEY - WATER PUMP	LR071880 PULLEY - WATER PUMP	$19.31	1
8620	LR091607	BELT - ACCESSORY DRIVE	LR091607 BELT - ACCESSORY DRIVE Accessory Drive	$67.59	1
8680A	KKU500510	BRACKET - IDLER PULLEY	KKU500510 BRACKET - IDLER PULLEY Centre / To: JA739778	$72.14	1
8680A	LR113352	BRACKET - IDLER PULLEY	LR113352 BRACKET - IDLER PULLEY Centre / From: JA739779	$68.70	1
8680B	LR092942	BRACKET - IDLER PULLEY	LR092942 BRACKET - IDLER PULLEY LH	$97.60	1
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler	$3.12	3
