Floor Trim (Floor Carpets) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Floor Trim (Floor Carpets)

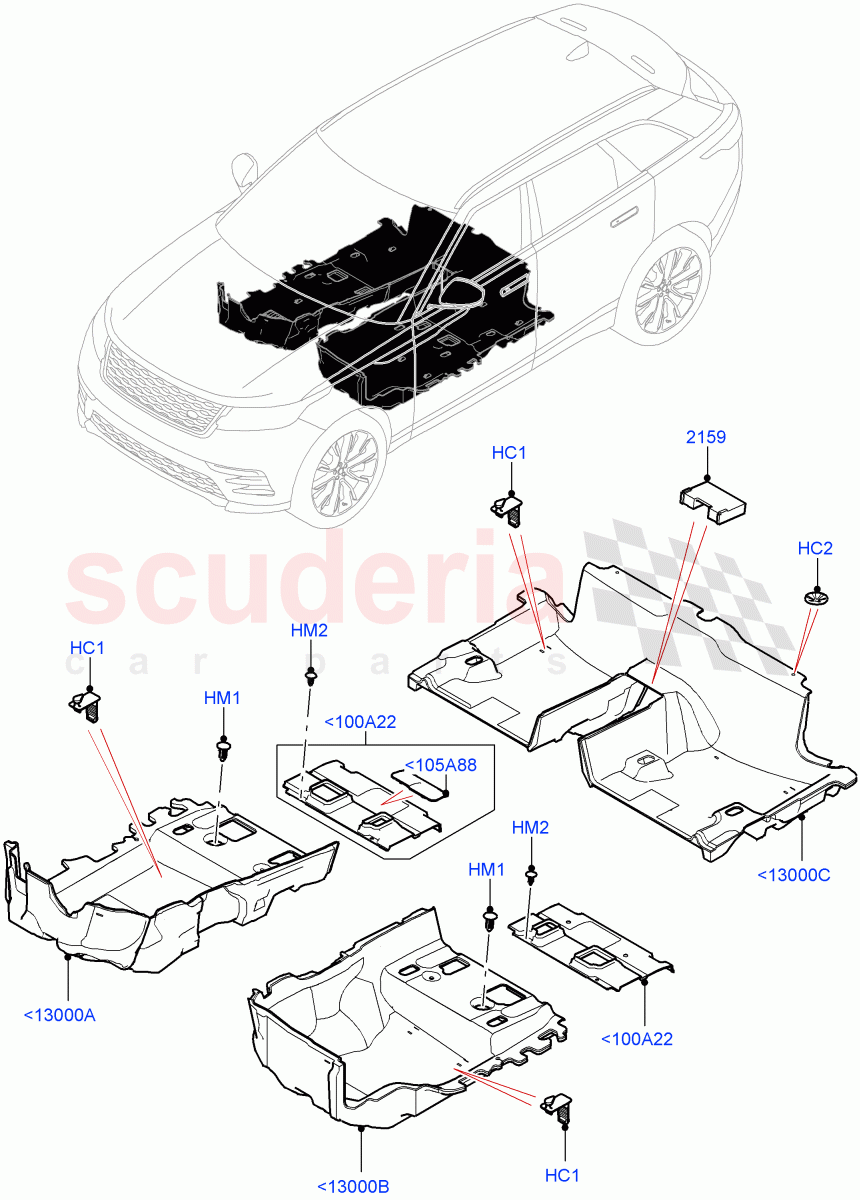

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR030413	CLIP - FLOOR MAT RETENTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033697	CLIP - PUSH ON STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500130	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090992	PAD - INSULATING	Enquire	To Order
	LR090992	PAD - INSULATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090920	BRACKET - FLOOR CARPET MOUNTING	Enquire	To Order
	LR090921	BRACKET - FLOOR CARPET MOUNTING	Enquire	To Order
	LR140842	BRACKET - FLOOR CARPET MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR140850	PANEL - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090909	CARPET - FRONT FLOOR	Enquire	To Order
	LR090911	CARPET - FRONT FLOOR	Enquire	To Order
	LR138678	CARPET - FRONT FLOOR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR090913	CARPET - FRONT FLOOR	Enquire	To Order
	LR090915	CARPET - FRONT FLOOR	Enquire	To Order
	LR095832	CARPET - FLOOR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR090917	CARPET - REAR FLOOR	Enquire	To Order
	LR090919	CARPET - REAR FLOOR	Enquire	To Order
	LR140839	CARPET - REAR FLOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<100A22	LR090920	BRACKET - FLOOR CARPET MOUNTING	LR090920 BRACKET - FLOOR CARPET MOUNTING LH / To: LA999999	-	1	Enquire
<100A22	LR090921	BRACKET - FLOOR CARPET MOUNTING	LR090921 BRACKET - FLOOR CARPET MOUNTING RH / To: LA999999	-	1	Enquire
<100A22	LR140842	BRACKET - FLOOR CARPET MOUNTING	LR140842 BRACKET - FLOOR CARPET MOUNTING LH / From: MA000001	-	1	Enquire
<100A22	LR140843	BRACKET - FLOOR CARPET MOUNTING	LR140843 BRACKET - FLOOR CARPET MOUNTING RH / From: MA000001	-	1	Enquire
<105A88	LR140850	PANEL - FLOOR	LR140850 PANEL - FLOOR RH / From: MA000001	-	1	Enquire
<13000A	LR090909	CARPET - FRONT FLOOR	LR090909 CARPET - FRONT FLOOR LHD / RH, Front / To: LA999999	-	1	Enquire
<13000A	LR090911	CARPET - FRONT FLOOR	LR090911 CARPET - FRONT FLOOR RHD / RH, Front / To: LA275417	-	1	Enquire
<13000A	LR138678	CARPET - FRONT FLOOR	LR138678 CARPET - FRONT FLOOR RHD / RH, Front / From: LA275418	-	1	Enquire
<13000A	LR140829	CARPET - FRONT FLOOR	LR140829 CARPET - FRONT FLOOR LHD / RH, Front / From: MA000001 / To: MA301235	-	1	Enquire
<13000A	LR155125	CARPET - FRONT FLOOR	LR155125 CARPET - FRONT FLOOR LHD / RH, Front / From: MA301236	-	1	Enquire
<13000B	LR090913	CARPET - FRONT FLOOR	LR090913 CARPET - FRONT FLOOR LHD, Less Fire Extinguisher / LH, Front / To: LA999999	-	1	Enquire
<13000B	LR090915	CARPET - FRONT FLOOR	LR090915 CARPET - FRONT FLOOR RHD / LH, Front	-	1	Enquire
<13000B	LR095832	CARPET - FLOOR	LR095832 CARPET - FLOOR LHD, With Fire Extinguisher / LH, Front / To: LA999999	-	1	Enquire
<13000B	LR140832	CARPET - FRONT FLOOR	LR140832 CARPET - FRONT FLOOR LHD, Less Fire Extinguisher / LH, Front / From: MA000001	-	1	Enquire
<13000B	LR140836	CARPET - FRONT FLOOR	LR140836 CARPET - FRONT FLOOR LHD, With Fire Extinguisher / LH, Front / From: MA000001	-	1	Enquire
<13000C	LR090917	CARPET - REAR FLOOR	LR090917 CARPET - REAR FLOOR With Front Comfort Air Con (IHKA) / Rear / To: LA999999	-	1	Enquire
<13000C	LR090919	CARPET - REAR FLOOR	LR090919 CARPET - REAR FLOOR Premium Air Conditioning-Front/Rear / Rear / To: LA999999	-	1	Enquire
<13000C	LR140839	CARPET - REAR FLOOR	LR140839 CARPET - REAR FLOOR With Front Comfort Air Con (IHKA) / Rear / From: MA000001	-	1	Enquire
<13000C	LR140840	CARPET - REAR FLOOR	LR140840 CARPET - REAR FLOOR Premium Air Conditioning-Front/Rear / Rear / From: MA000001	-	1	Enquire
HC1	LR030413	CLIP - FLOOR MAT RETENTION	LR030413 CLIP - FLOOR MAT RETENTION Floor Mats	-	8	Enquire
HC2	LR033697	CLIP - PUSH ON STEEL	LR033697 CLIP - PUSH ON STEEL M6, Rear	-	2	Enquire
HM1	RZM500130	PIN	RZM500130 PIN Carpet, Front, M10 X 28MM	-	4	Enquire
HM2	RZM500070	PIN - SPECIAL	RZM500070 PIN - SPECIAL 6.4 X 20.4, Fixes Bracket To Carpet, Push Pin	-	8	Enquire
2159	LR090992	PAD - INSULATING	LR090992 PAD - INSULATING With Front Comfort Air Con (IHKA) / To: MA999999	-	1	Enquire
2159	LR090992	PAD - INSULATING	LR090992 PAD - INSULATING From: NA000001	-	1	Enquire
