Name: Hybrid Electrical Modules (Inverter) (Electric Engine Battery-PHEV) ((V) FROMMA000001)
Rating: 4.1 (1 reviews)

View All

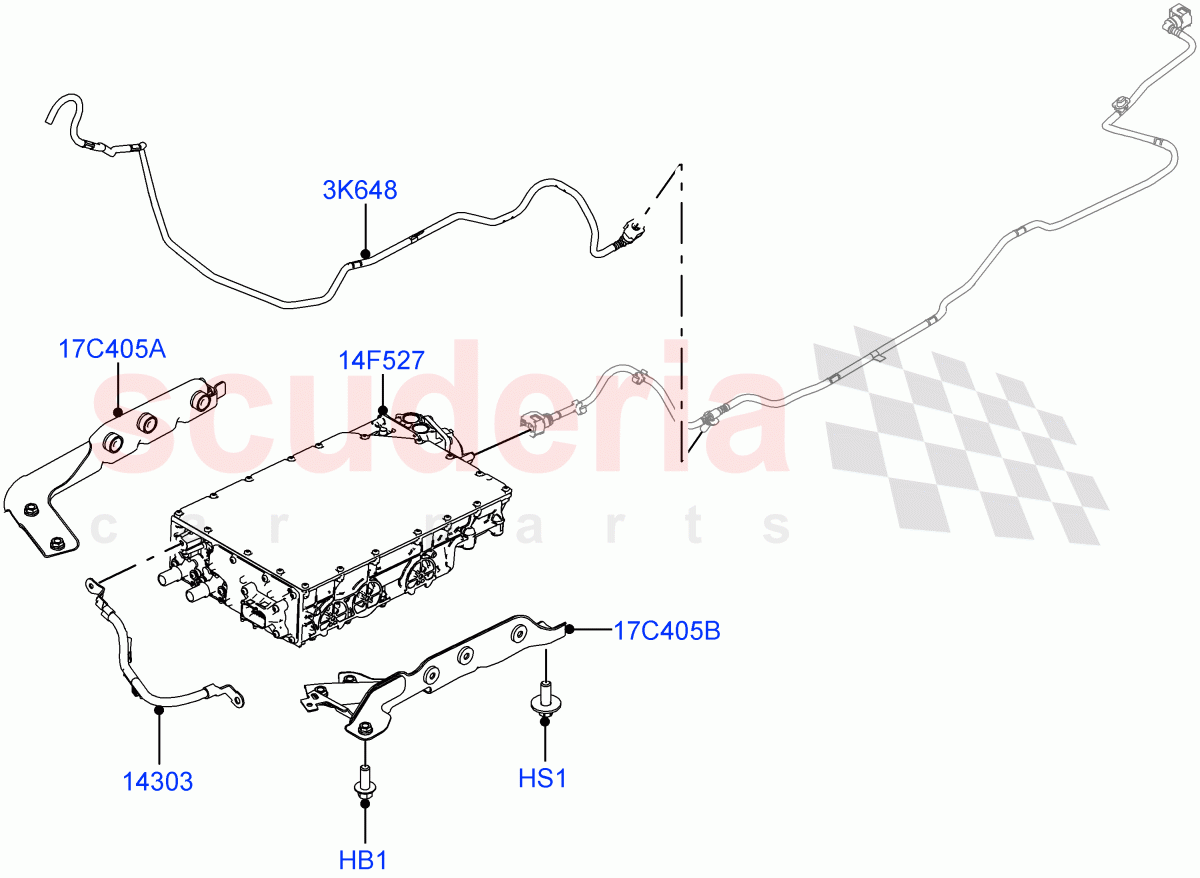

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR149652	SCREW AND WASHER	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145122	CABLE - BATTERY NEGATIVE	$201.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140980	TUBE - BREATHER	$28.07	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: MA000001 IN STOCK	$2.23	6
HS1	LR149652	SCREW AND WASHER	LR149652 SCREW AND WASHER M8 X 22MM / From: MA000001	$1.69	3
3K648	LR140980	TUBE - BREATHER	LR140980 TUBE - BREATHER From: MA000001	$28.07	1
14F527	LR141137	POWER INVERTER	LR141137 POWER INVERTER From: MA000001 / To: MA318092	$4,490.85	1
14F527	LR159343	POWER INVERTER	LR159343 POWER INVERTER From: MA318093	$4,057.03	1
17C405A	LR140988	BRACKET - INVERTER	LR140988 BRACKET - INVERTER Right Side / From: MA000001 / To: NA334282	$28.22	1
17C405A	LR173229	BRACKET - INVERTER	LR173229 BRACKET - INVERTER Right Side / From: NA334283	$30.31	1
17C405B	LR140989	BRACKET - INVERTER	LR140989 BRACKET - INVERTER Left Side / From: MA000001 / To: NA332582	$31.36	1
17C405B	LR173228	BRACKET - INVERTER	LR173228 BRACKET - INVERTER Left Side / From: NA332583	$30.31	1
14303	LR145122	CABLE - BATTERY NEGATIVE	LR145122 CABLE - BATTERY NEGATIVE Ground Wire / From: MA000001	$201.74	1

Hybrid Electrical Modules (Inverter) (Electric Engine Battery-Phev) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]
