Auto Trans Assy & Speedometer Drive (2.0L AJ21D4 Diesel Mid, 8 Speed Automatic Trans 8HP51) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Auto Trans Assy & Speedometer Drive (2.0L AJ21D4 Diesel Mid, 8 Speed Automatic Trans 8HP51) ((V)...

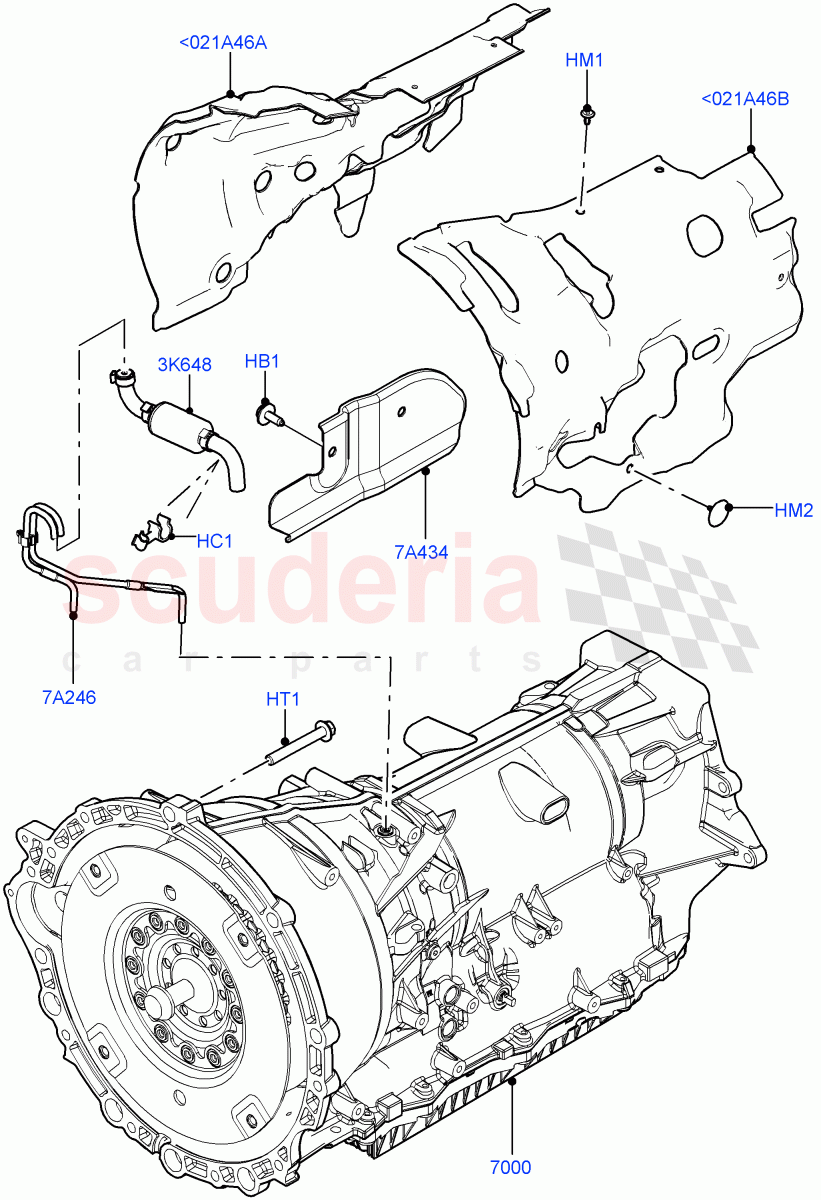

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR107009	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093341	CLIP - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500090	PIN - FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017279	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141590	AUTOMATIC TRANSMISSION	Enquire	To Order
	LR161156	AUTOMATIC TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156359	VALVE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141642	TUBE - TRANSMISSION VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150745	SHIELD - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137497	INSULATOR - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137498	INSULATOR - TRANSMISSION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A46A	LR137497	INSULATOR - TRANSMISSION	LR137497 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / RH / From: MA000001	-	1	Enquire
<021A46B	LR137498	INSULATOR - TRANSMISSION	LR137498 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / LH / From: MA000001	-	1	Enquire
HB1	LR107009	BOLT AND WASHER - HEX.HEAD	LR107009 BOLT AND WASHER - HEX.HEAD Heatshield, M8 X 22MM / From: MA000001	-	2	Enquire
HC1	LR093341	CLIP - PIPE	LR093341 CLIP - PIPE Cabin Air Ionisation / PM2.5 / Carbon Canister Kit / From: MA000001	-	1	Enquire
HM1	RYQ500040	FASTENER	RYQ500040 FASTENER Thermal Encapsulation Covers / 6.25 x 1.6/6MM / From: MA000001	-	2	Enquire
HM2	RZM500090	PIN - FIXING	RZM500090 PIN - FIXING Thermal Encapsulation Covers / 6.5 X 17MM	-	4	Enquire
HT1	LR017279	STUD	LR017279 STUD M10 x 75MM, M6 X 16MM / From: MA000001	-	10	Enquire
3K648	LR156359	VALVE - VENT	LR156359 VALVE - VENT Cabin Air Ionisation / PM2.5 / Carbon Canister Kit / From: MA000001	-	1	Enquire
7A246	LR141642	TUBE - TRANSMISSION VENTILATION	LR141642 TUBE - TRANSMISSION VENTILATION From: MA000001	-	1	Enquire
7A434	LR150745	SHIELD - TRANSMISSION	LR150745 SHIELD - TRANSMISSION RH Lower / From: MA000001	-	1	Enquire
7000	LR141590	AUTOMATIC TRANSMISSION	LR141590 AUTOMATIC TRANSMISSION Includes Converter / From: MA000001 / To: MA999999	-	1	Enquire
7000	LR161156	AUTOMATIC TRANSMISSION	LR161156 AUTOMATIC TRANSMISSION Includes Converter / From: NA000001	-	1	Enquire
