Carbon Canister (2.0L AJ200P Hi PHEV) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Carbon Canister (2.0L AJ200P Hi PHEV) ((V) FROMMA000001)

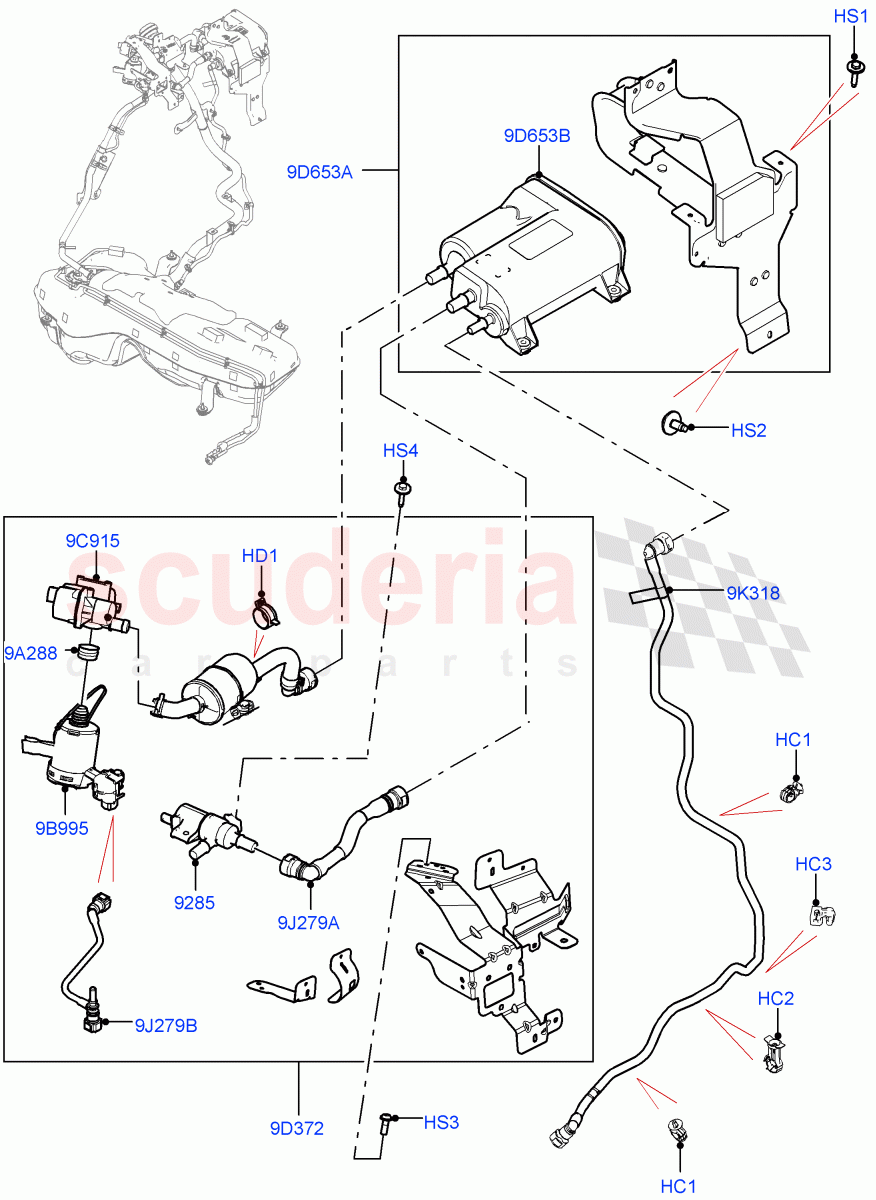

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091651	CLIP - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141230	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093728	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141745	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141739	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090381	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135214	VALVE - NON RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003198	INSULATOR - CHARCOAL CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027066	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141090	HOSE - FUEL VAPOUR	Enquire	To Order
	LR171146	HOSE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141099	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141093	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141577	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141429	TUBE - VENTILATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR091651	CLIP - PIPE	LR091651 CLIP - PIPE Single / From: MA000001	-	4	Enquire
HC2	LR141230	CLIP	LR141230 CLIP Stud / From: MA000001	-	1	Enquire
HC3	LR093728	CLIP - HOSE	LR093728 CLIP - HOSE From: MA000001	-	1	Enquire
HD1	LR141745	CLAMP - HOSE	LR141745 CLAMP - HOSE Hose / From: MA000001	-	4	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: MA000001	-	2	Enquire
HS2	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM / From: MA000001	-	2	Enquire
HS3	LR141739	SCREW	LR141739 SCREW M5 x 14MM / From: MA000001	-	3	Enquire
HS4	LR090381	SCREW AND WASHER	LR090381 SCREW AND WASHER Hexagonal Head, M6 X 20MM / From: MA000001	-	1	Enquire
9A288	LR003198	INSULATOR - CHARCOAL CANISTER	LR003198 INSULATOR - CHARCOAL CANISTER From: MA000001	-	1	Enquire
9B995	LR027066	FILTER - FUEL	LR027066 FILTER - FUEL From: MA000001	-	1	Enquire
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Pump - Diagnostic Monitoring Tank Leakage / From: MA000001	-	1	Enquire
9D372	LR141090	HOSE - FUEL VAPOUR	LR141090 HOSE - FUEL VAPOUR From: MA000001 / To: NA330711	-	1	Enquire
9D372	LR171146	HOSE - FUEL VAPOUR	LR171146 HOSE - FUEL VAPOUR From: NA330712	-	1	Enquire
9D653A	LR141093	RESERVOIR - FUEL VAPOUR SYSTEM	LR141093 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: MA000001	-	1	Enquire
9D653B	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	LR027061 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister / From: MA000001	-	1	Enquire
9J279A	LR141577	TUBE - FUEL VAPOUR	LR141577 TUBE - FUEL VAPOUR Feed, Vapour Line / From: MA000001	-	1	Enquire
9J279B	LR141429	TUBE - VENTILATION	LR141429 TUBE - VENTILATION Vapour Line / From: MA000001	-	1	Enquire
9K318	LR141099	TUBE - FUEL VAPOUR	LR141099 TUBE - FUEL VAPOUR From: MA000001	-	1	Enquire
9285	LR135214	VALVE - NON RETURN	LR135214 VALVE - NON RETURN From: MA000001	-	1	Enquire
