Oil Pan/Oil Level Indicator (2.0L Aj200P Hi Phev) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Oil Pan/Oil Level Indicator (2.0L AJ200P Hi PHEV) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR101174 SHIM - DIFFERENTIAL DRIVING GR BRG $21.14 To Order
Photo Part No Description Price (each) Stock
LR074127 O-RING $4.96 To Order
Photo Part No Description Price (each) Stock
LR073677 SCREW $3.30 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.26 To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW $2.20 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC $2.92 To Order
Photo Part No Description Price (each) Stock
LR140951 PAN - ENGINE OIL $537.31 To Order
LR154101 PAN - ENGINE OIL $537.31 To Order
Photo Part No Description Price (each) Stock
LR154091 PLUG - OIL DRAIN $13.95 To Order
Photo Part No Description Price (each) Stock
LR141425 TUBE - OIL LEVEL INDICATOR $52.31 To Order
Photo Part No Description Price (each) Stock
LR130052 TRAY - WINDAGE $356.36 To Order
Photo Part No Description Price (each) Stock
LR091897 SHIELD - ENGINE PROTECTING $60.73 To Order
View All

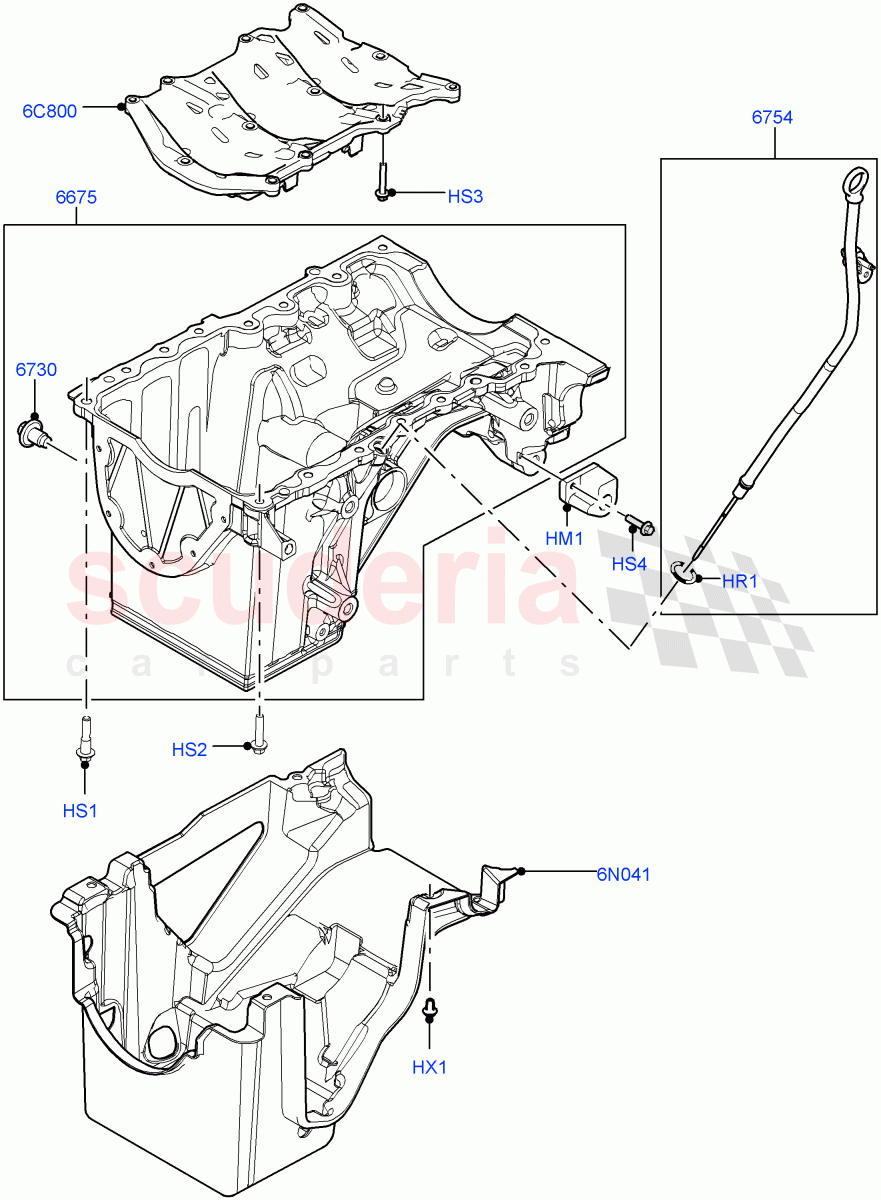

Oil Pan/Oil Level Indicator (2.0L AJ200P Hi PHEV) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 LR101174
SHIM - DIFFERENTIAL DRIVING GR BRG
Differential Mounting / From: MA000001 		$21.14 1
HR1 LR074127
O-RING
11.5 x 2 mm, Oil Level Indicator / From: MA000001 		$4.96 1
HS1 LR073677
SCREW
M8 x 42mm / From: MA000001 		$3.30 2
HS2 LR073676
SCREW
M8 x 35mm / From: MA000001 		$2.26 14
HS3 LR073635
SCREW
M6 x 35MM, Windage Tray / From: MA000001 		$2.20 12
HS4 FS106256
SCREW
Differential Mounting, M6 x 25MM / From: MA000001 		$0.42 1
HX1 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5 / From: MA000001 		$2.92 4
6C800 LR130052
TRAY - WINDAGE
From: MA000001 		$356.36 1
6N041 LR091897
SHIELD - ENGINE PROTECTING
Oil Pan / From: MA000001 		$60.73 1
6675 LR140951
PAN - ENGINE OIL
From: MA000001 / To: MA296471 		$537.31 1
6675 LR154101
PAN - ENGINE OIL
From: MA296472 		$537.31 1
6730 LR154091
PLUG - OIL DRAIN
From: MA000001 		$13.95 1
6754 LR141425
TUBE - OIL LEVEL INDICATOR
From: MA000001 		$52.31 1
