Cylinder Head Cover (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Cylinder Head Cover (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi...

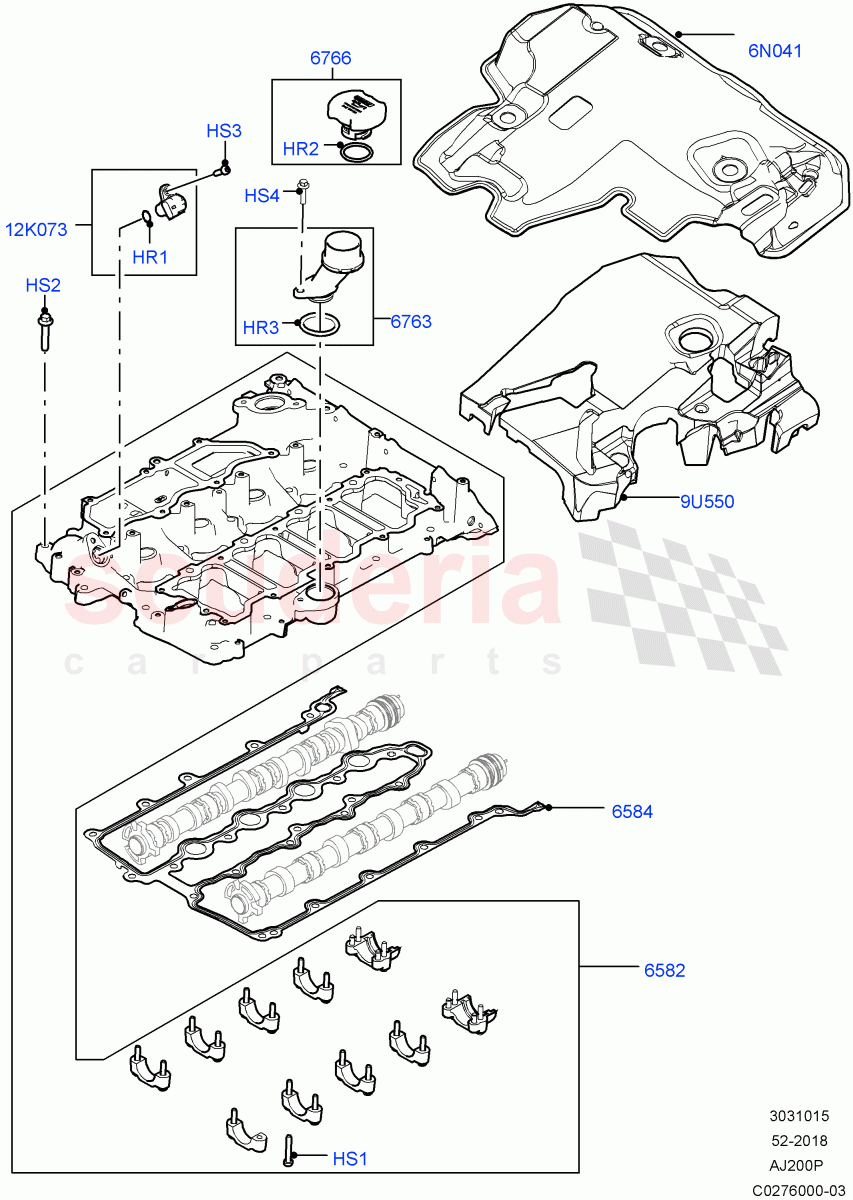

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095781	O-RING IN STOCK	LR095781 O-RING 17.0MM, Camshaft Position Sensor IN STOCK	$9.39	2
HR2	LR073781	O-RING IN STOCK	LR073781 O-RING Filler Cap, IN STOCK	$4.88	1
HR3	LR121391	O-RING	LR121391 O-RING FILLER,	$14.24	1
HS1	LR092072	SCREW	LR092072 SCREW M6 x 35MM	$1.20	20
HS2	LR073649	SCREW	LR073649 SCREW M8 x 40MM	$2.40	19
HS3	LR073720	SCREW	LR073720 SCREW Camshaft Position Sensor, M6 X 20MM	$1.53	2
HS4	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM	$1.28	1
6N041	LR091780	COVER - ENGINE TOP	LR091780 COVER - ENGINE TOP Top / To: JA708108	$180.15	1
6N041	LR106641	COVER - ENGINE TOP	LR106641 COVER - ENGINE TOP Top / From: JA708109	$135.93	1
9U550	LR091581	INSULATOR - FUEL INJECTORS	LR091581 INSULATOR - FUEL INJECTORS Camshaft Cover, Top / To: KA999999	$57.54	1
9U550	LR127870	COVER - INSULATOR	LR127870 COVER - INSULATOR Camshaft Cover, Top / From: LA000001	$49.29	1
12K073	LR074065	SENSOR - CAMSHAFT POSITION	LR074065 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor	$196.51	2
6582	LR091531	COVER - CYLINDER HEAD	LR091531 COVER - CYLINDER HEAD To: JA733087	$213.45	1
6582	LR110346	COVER - CYLINDER HEAD	LR110346 COVER - CYLINDER HEAD From: JA733088	$268.88	1
6584	LR091765	GASKET - CAMSHAFT COVER	LR091765 GASKET - CAMSHAFT COVER Camshaft Cover	$40.32	1
6763	LR091797	PIPE - OIL INLET	LR091797 PIPE - OIL INLET	$27.99	1
6766	LR091798	CAP - OIL FILLER	LR091798 CAP - OIL FILLER	$34.08	1
