Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (2.0L Aj200P Hi Phev) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (2.0L AJ200P Hi PHEV) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR094188 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR141677 TUBE - OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR141683 TUBE - OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR093490 ACTUATOR - SUPERCHARGER BYPASS Enquire To Order
View All

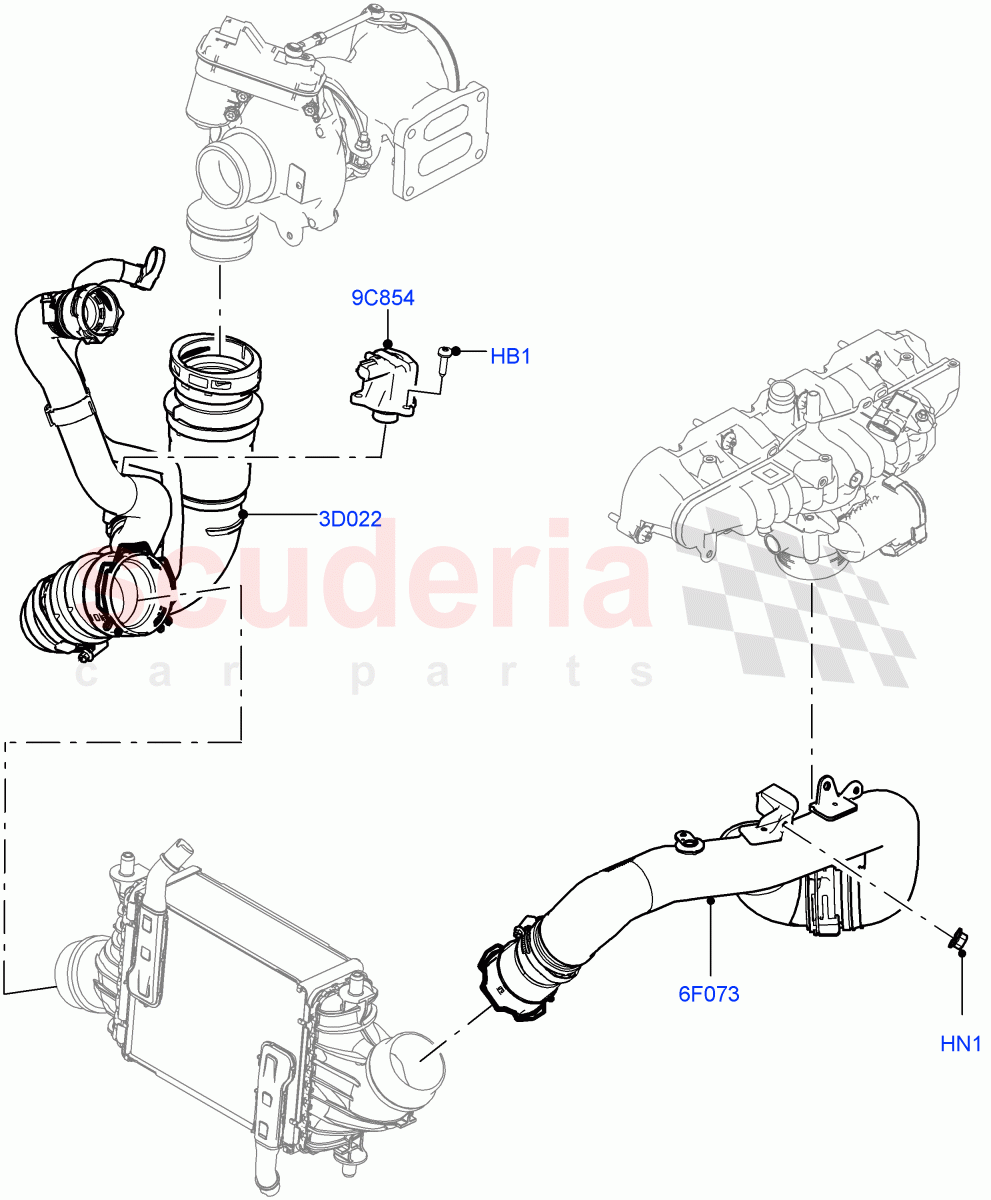

Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (2.0L AJ200P Hi PHEV) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033002
BOLT AND WASHER - TORX HEAD
M6 X 20.5, To Valve, Torx / From: MA000001 		- 3 Enquire
HN1 LR094188
NUT AND WASHER - HEX.
Air Duct, Hexagonal Head, M6, Nut And Washer / From: MA000001 		- 1 Enquire
3D022 LR141677
TUBE - OUTLET
Turbocharger To Intercooler / From: MA000001 		- 1 Enquire
6F073 LR141683
TUBE - OUTLET
Intercooler To Throttle Body / From: MA000001 		- 1 Enquire
9C854 LR093490
ACTUATOR - SUPERCHARGER BYPASS
From: MA000001 		- 1 Enquire
