Name: Balance Shafts And Drive (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHA000001)
Rating: 4.3 (1 reviews)

Balance Shafts And Drive (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Balance Shafts And Drive (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200...

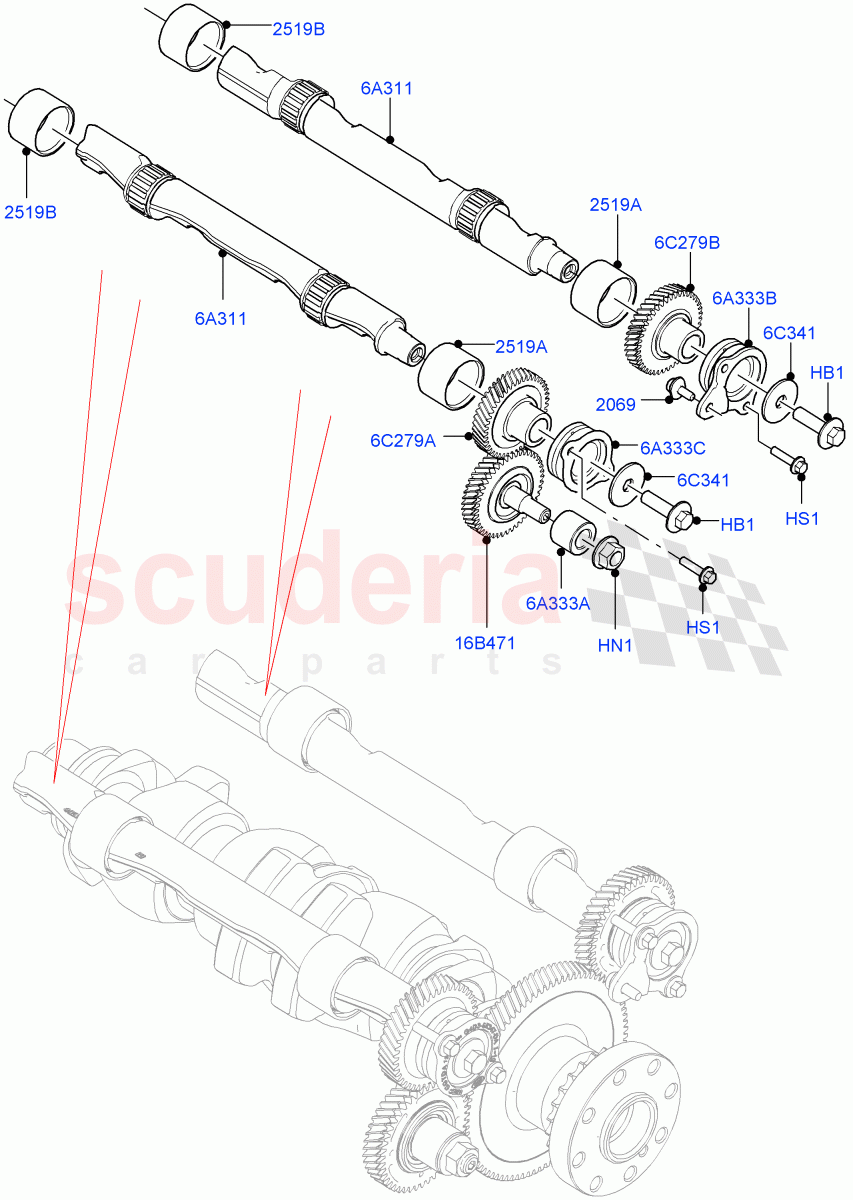

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074130	BOLT	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074132	NUT	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073762	PIN - SPECIAL	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074083	CUP - BEARING	$40.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR074084	CUP - BEARING	$42.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092982	SHAFT - BALANCE	$103.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074079	WASHER - THRUST	$4.13	To Order
	LR125268	WASHER - THRUST	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139687	GEAR - IDLER	$127.52	To Order
	LR139687	GEAR - IDLER	$127.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074080	BUSHING - INTERMEDIATE BEARING	$25.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR154600	COLLAR - THRUST	$35.10	IN STOCK
	LR154600	COLLAR - THRUST	$35.10	IN STOCK
	LR154600	COLLAR - THRUST	$35.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR074082	COLLAR - THRUST	$18.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139692	GEAR - BALANCE SHAFT	$72.67	To Order
	LR139692	GEAR - BALANCE SHAFT	$72.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139694	GEAR - BALANCE SHAFT	$72.67	To Order
	LR139694	GEAR - BALANCE SHAFT	$72.67	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR074130	BOLT	LR074130 BOLT Gear To Balance Shaft, M10 x 35MM	$4.51	2
HN1	LR074132	NUT	LR074132 NUT Balancer Idler Gear, M12	$2.94	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM	$1.28	4
6A311	LR092982	SHAFT - BALANCE	LR092982 SHAFT - BALANCE This Is The Balance Shaft on Bottom of Engine	$103.58	2
6A333A	LR074080	BUSHING - INTERMEDIATE BEARING IN STOCK	LR074080 BUSHING - INTERMEDIATE BEARING Bushing - Balancer Idler Gear IN STOCK	$25.60	1
6A333B	LR154600	COLLAR - THRUST IN STOCK	LR154600 COLLAR - THRUST EXHAUST SIDE, With Collar Thrust / To: KA203103 IN STOCK	$35.10	1
6A333B	LR154600	COLLAR - THRUST IN STOCK	LR154600 COLLAR - THRUST EXHAUST SIDE, With Collar Thrust / From: KA203104 / To: MA300161 IN STOCK	$35.10	1
6A333B	LR154600	COLLAR - THRUST IN STOCK	LR154600 COLLAR - THRUST EXHAUST SIDE, With Collar Thrust / From: MA300162 IN STOCK	$35.10	1
6A333C	LR074082	COLLAR - THRUST	LR074082 COLLAR - THRUST Intake Side, With Collar Thrust	$18.07	1
6C279A	LR139692	GEAR - BALANCE SHAFT	LR139692 GEAR - BALANCE SHAFT Intake Side / To: LA275624	$72.67	1
6C279A	LR139692	GEAR - BALANCE SHAFT	LR139692 GEAR - BALANCE SHAFT Intake Side / From: LA275625	$72.67	1
6C279B	LR139694	GEAR - BALANCE SHAFT	LR139694 GEAR - BALANCE SHAFT EXHAUST SIDE / To: LA275624	$72.67	1
6C279B	LR139694	GEAR - BALANCE SHAFT	LR139694 GEAR - BALANCE SHAFT EXHAUST SIDE / From: LA275625	$72.67	1
6C341	LR074079	WASHER - THRUST	LR074079 WASHER - THRUST Balancer Drive, Thrust Washer / To: KA793964	$4.13	2
6C341	LR125268	WASHER - THRUST	LR125268 WASHER - THRUST Balancer Drive, Thrust Washer / From: KA793965	$3.81	2
16B471	LR139687	GEAR - IDLER	LR139687 GEAR - IDLER Balancer Drive / To: LA275624	$127.52	1
16B471	LR139687	GEAR - IDLER	LR139687 GEAR - IDLER Balancer Drive / From: LA275625	$127.52	1
2069	LR073762	PIN - SPECIAL	LR073762 PIN - SPECIAL PIVOT	$2.89	1
2519A	LR074083	CUP - BEARING IN STOCK	LR074083 CUP - BEARING Engine Rear, Needle Bearing IN STOCK	$40.84	2
2519B	LR074084	CUP - BEARING IN STOCK	LR074084 CUP - BEARING Engine Front, Needle Bearing IN STOCK	$42.80	2
