Family Entertainment System ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Family Entertainment System ((V) FROMMA000001)

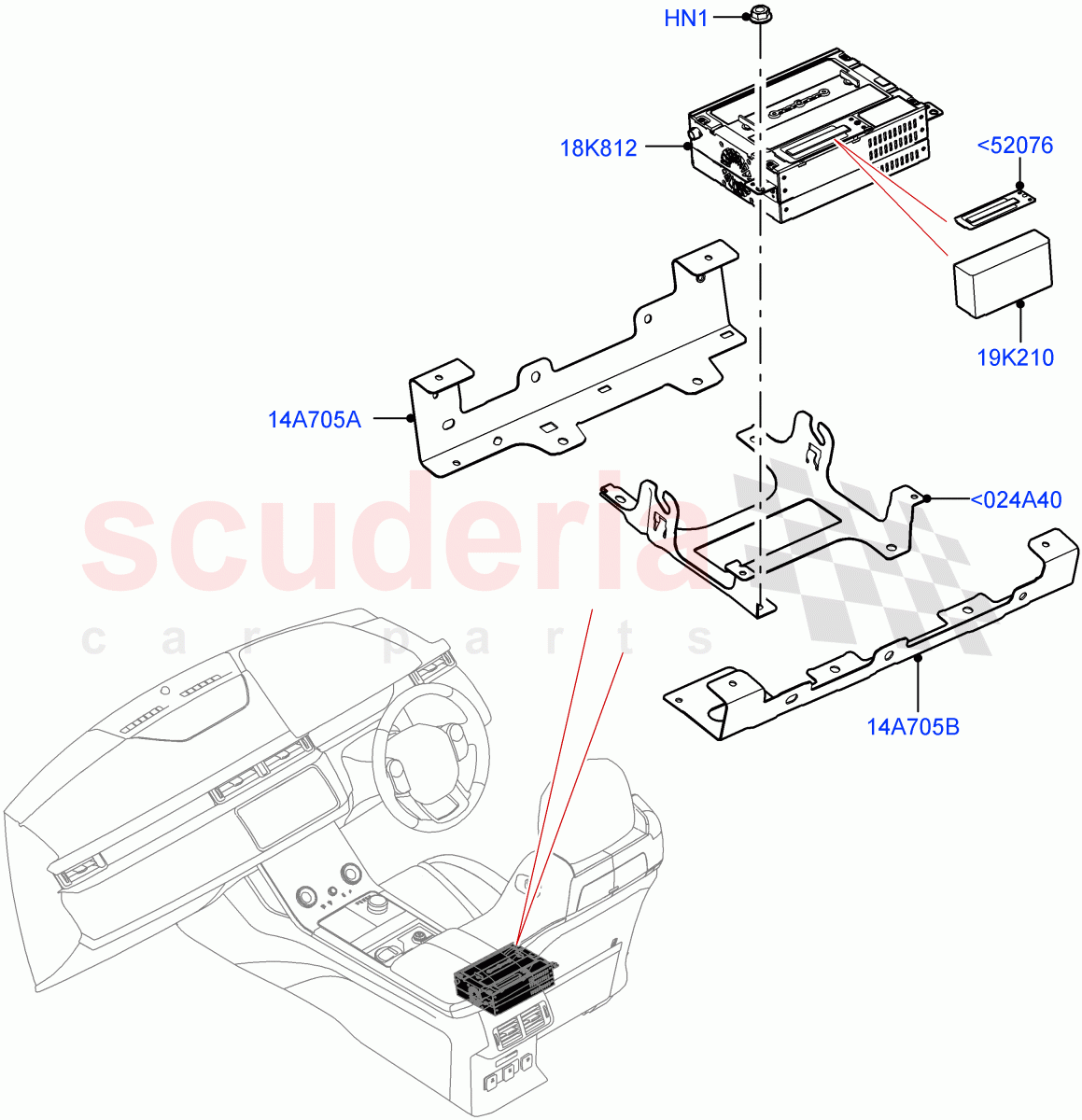

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134881	COVER - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133616	UNIT - INFOTAINMENT CONTROL	Enquire	To Order
	LR133619	UNIT - INFOTAINMENT CONTROL	Enquire	To Order
	LR133620	UNIT - INFOTAINMENT CONTROL	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132031	BATTERY - ADDITIONAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141237	BRACKET - MODULE	Enquire	To Order
	LR157879	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141133	BRACKET - AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141130	BRACKET - AMPLIFIER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<024A40	LR141237	BRACKET - MODULE	LR141237 BRACKET - MODULE From: MA000001 / To: MA306810	-	1	Enquire
<024A40	LR157879	BRACKET - MODULE	LR157879 BRACKET - MODULE From: MA306811	-	1	Enquire
<52076	LR134881	COVER - BATTERY	LR134881 COVER - BATTERY From: MA000001	-	1	Enquire
HN1	FN106042	NUT	FN106042 NUT Hexagonal Head, M6 / From: MA000001	-	2	Enquire
14A705A	LR141133	BRACKET - AMPLIFIER	LR141133 BRACKET - AMPLIFIER Front / From: MA000001	-	1	Enquire
14A705B	LR141130	BRACKET - AMPLIFIER	LR141130 BRACKET - AMPLIFIER Rear / From: MA000001	-	1	Enquire
18K812	LR133616	UNIT - INFOTAINMENT CONTROL	LR133616 UNIT - INFOTAINMENT CONTROL Analogue Audio Broadcast, TCU Module - ROW, With Signal Flare Warning Bracket / From: MA000001 / To: MA306810	-	1	Enquire
18K812	LR133619	UNIT - INFOTAINMENT CONTROL	LR133619 UNIT - INFOTAINMENT CONTROL Digital Audio Broadcast, TCU Module - ROW / From: MA000001 / To: MA306810	-	1	Enquire
18K812	LR133620	UNIT - INFOTAINMENT CONTROL	LR133620 UNIT - INFOTAINMENT CONTROL TCU Module - NAS / From: MA000001 / To: MA306810	-	1	Enquire
18K812	LR133621	UNIT - INFOTAINMENT CONTROL	LR133621 UNIT - INFOTAINMENT CONTROL TCU Module - China / From: MA000001 / To: MA306810	-	1	Enquire
18K812	LR133622	UNIT - INFOTAINMENT CONTROL	LR133622 UNIT - INFOTAINMENT CONTROL Analogue Audio Broadcast, Less Signal Flare Warning Bracket, TCU Module - ROW / From: MA000001 / To: MA306810	-	1	Enquire
18K812	LR161605	UNIT - INFOTAINMENT CONTROL	LR161605 UNIT - INFOTAINMENT CONTROL Analogue Audio Broadcast, TCU Module - ROW, With Signal Flare Warning Bracket / From: MA306811	-	1	Enquire
18K812	LR161606	UNIT - INFOTAINMENT CONTROL	LR161606 UNIT - INFOTAINMENT CONTROL Digital Audio Broadcast, TCU Module - ROW / From: MA306811	-	1	Enquire
18K812	LR161607	UNIT - INFOTAINMENT CONTROL	LR161607 UNIT - INFOTAINMENT CONTROL TCU Module - NAS / From: MA306811	-	1	Enquire
18K812	LR161608	UNIT - INFOTAINMENT CONTROL	LR161608 UNIT - INFOTAINMENT CONTROL TCU Module - China / From: MA306811	-	1	Enquire
18K812	LR161609	UNIT - INFOTAINMENT CONTROL	LR161609 UNIT - INFOTAINMENT CONTROL Analogue Audio Broadcast, Less Signal Flare Warning Bracket, TCU Module - ROW / From: MA306811	-	1	Enquire
19K210	LR132031	BATTERY - ADDITIONAL	LR132031 BATTERY - ADDITIONAL From: MA000001	-	1	Enquire
