Name: Fuel Lines (Front) (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)
Rating: 4.2 (1 reviews)

Fuel Lines (Front) (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Fuel Lines (Front) (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

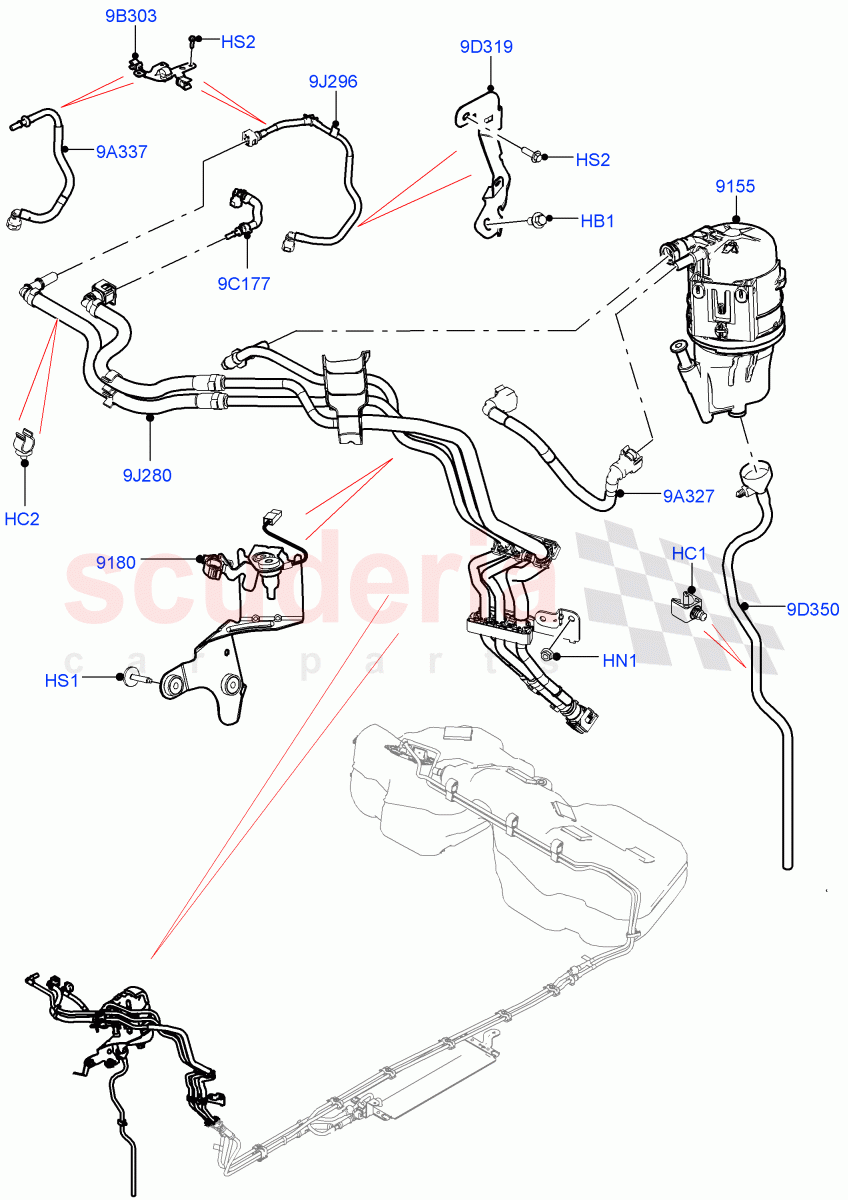

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093055	BOLT	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087667	CLIP - SPECIAL	$7.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141317	FILTER - FUEL - PRIMARY	$72.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141321	BRACKET - FUEL FILTER	$82.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141320	TUBE - FUEL FILTER TO FUEL PUMP	$31.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141329	PIPE - FUEL	$49.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087239	BRACKET - FUEL TUBE SUPPORT	$15.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141333	PIPE - FUEL	$38.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141505	BRACKET - TUBE	$31.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141325	TUBE - FUEL	$26.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141382	PIPE - FUEL	$108.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141332	PIPE - FUEL	$43.56	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR093055	BOLT	LR093055 BOLT M8 X 16 / From: MA000001	$1.11	1
HC1	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE Single / From: MA000001	$3.36	1
HC2	LR087667	CLIP - SPECIAL	LR087667 CLIP - SPECIAL Front, Single / From: MA000001	$7.77	2
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 / From: MA000001 IN STOCK	$1.04	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: MA000001	$4.03	3
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: MA000001	$2.23	3
9A327	LR141320	TUBE - FUEL FILTER TO FUEL PUMP	LR141320 TUBE - FUEL FILTER TO FUEL PUMP To Fuel Filter / From: MA000001	$31.55	1
9A337	LR141329	PIPE - FUEL	LR141329 PIPE - FUEL Pump Feed / From: MA000001	$49.16	1
9B303	LR087239	BRACKET - FUEL TUBE SUPPORT	LR087239 BRACKET - FUEL TUBE SUPPORT For Fuel Tube, Upper / From: MA000001	$15.17	1
9C177	LR141333	PIPE - FUEL	LR141333 PIPE - FUEL Engine / From: MA000001	$38.40	1
9D319	LR141505	BRACKET - TUBE	LR141505 BRACKET - TUBE For Fuel Tube, Lower / From: MA000001	$31.36	1
9D350	LR141325	TUBE - FUEL	LR141325 TUBE - FUEL Drain / From: MA000001	$26.03	1
9J280	LR141382	PIPE - FUEL	LR141382 PIPE - FUEL From: MA000001	$108.74	1
9J296	LR141332	PIPE - FUEL	LR141332 PIPE - FUEL Fuel Pump / From: MA000001	$43.56	1
9155	LR141317	FILTER - FUEL - PRIMARY	LR141317 FILTER - FUEL - PRIMARY Less Bracket / From: MA000001	$72.57	1
9180	LR141321	BRACKET - FUEL FILTER	LR141321 BRACKET - FUEL FILTER For Fuel Filter / From: MA000001	$82.30	1

Fuel Lines (Front) (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)
