Name: Turbocharger (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)
Rating: 4.9 (1 reviews)

View All

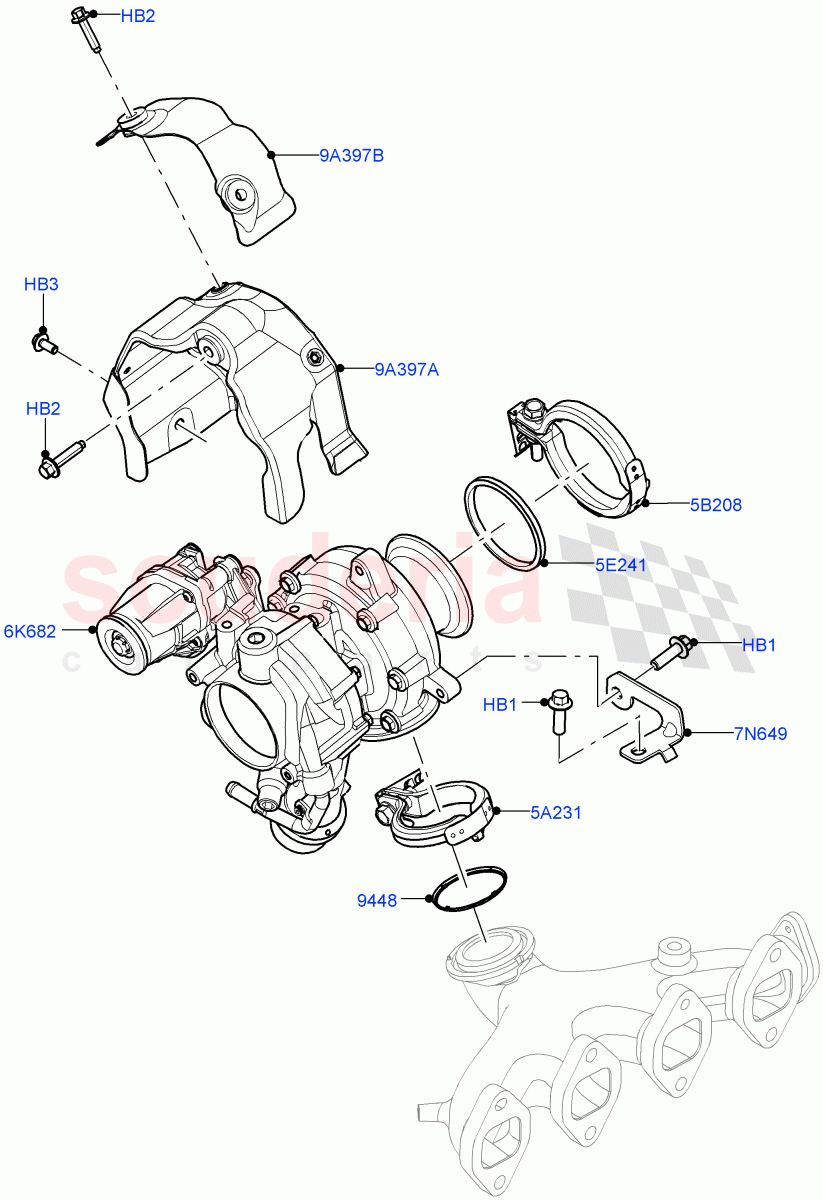

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR092104	BOLT	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078918	BOLT - HEX. HEAD - FLANGED	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139689	GASKET - TURBOCHARGER	$40.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139688	CLAMP - EXHAUST	$32.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141497	CLAMP - EXHAUST	$30.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	$28.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141345	BRACKET - TURBOCHARGER	$21.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141101	HEAT SHIELD - TURBOCHARGER	$22.65	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR092104	BOLT	LR092104 BOLT Bracket, M8 X 25MM / From: MA000001	$1.55	2
HB2	LR091557	BOLT	LR091557 BOLT Heatshield, M6 X 25MM / From: MA000001	$2.89	3
HB3	LR078918	BOLT - HEX. HEAD - FLANGED	LR078918 BOLT - HEX. HEAD - FLANGED Heatshield, M6 X 14MM / From: MA000001	$0.90	1
5A231	LR139688	CLAMP - EXHAUST	LR139688 CLAMP - EXHAUST Manifold To Turbocharger / From: MA000001	$32.15	1
5B208	LR141497	CLAMP - EXHAUST	LR141497 CLAMP - EXHAUST Turbocharger Outlet / From: MA000001	$30.59	1
5E241	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet / From: MA000001	$28.70	1
6K682	LR139739	TURBOCHARGER	LR139739 TURBOCHARGER From: MA000001 / To: MA326353	$1,853.73	1
6K682	LR168298	TURBOCHARGER	LR168298 TURBOCHARGER From: MA326354 / To: NA332005	$2,253.00	1
6K682	LR173145	Turbocharger	LR173145 Turbocharger From: NA332006	$2,253.00	1
7N649	LR141345	BRACKET - TURBOCHARGER	LR141345 BRACKET - TURBOCHARGER From: MA000001	$21.62	1
9A397A	LR141346	HEAT SHIELD - TURBOCHARGER	LR141346 HEAT SHIELD - TURBOCHARGER From: MA000001 / To: NA334168	$50.83	1
9A397A	LR174023	Heat Shield	LR174023 Heat Shield From: NA334169	$143.90	1
9A397B	LR141101	HEAT SHIELD - TURBOCHARGER	LR141101 HEAT SHIELD - TURBOCHARGER Top / From: MA000001	$22.65	1
9448	LR139689	GASKET - TURBOCHARGER	LR139689 GASKET - TURBOCHARGER Manifold To Turbocharger / From: MA000001	$40.01	1

Turbocharger (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]
