Front Exhaust System (2.0L AJ21D4 Diesel Mid, EU6D - Final (Diesel) Emission) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Front Exhaust System (2.0L AJ21D4 Diesel Mid, EU6D - Final (Diesel) Emission) ((V) FROMMA000001)

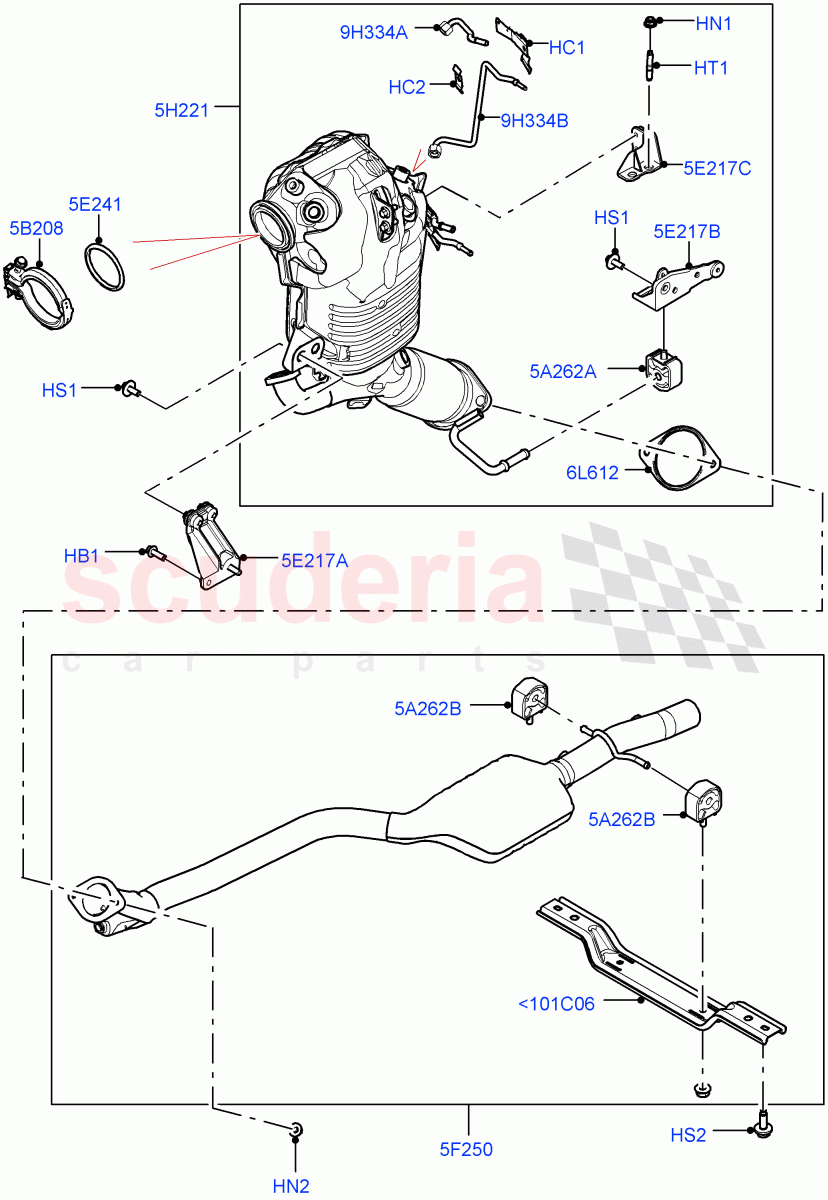

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157887	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157888	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149652	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092114	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141497	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141510	CATALYST AND PARTICLE FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141517	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157889	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134608	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125106	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141527	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157882	BRACKET - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157884	BRACKET - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157885	TUBE - EXHAUST PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157886	TUBE - EXHAUST PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148149	REINFORCEMENT - REAR FLOOR PAN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<101C06	LR148149	REINFORCEMENT - REAR FLOOR PAN	LR148149 REINFORCEMENT - REAR FLOOR PAN From: MA000001	-	1	Enquire
HB1	FS108256	BOLT	FS108256 BOLT Hexagonal Head, M8 X 25MM, Turbocharger Bracket / From: MA000001	-	2	Enquire
HC1	LR157887	CLIP - SPECIAL	LR157887 CLIP - SPECIAL From: MA000001	-	1	Enquire
HC2	LR157888	CLIP - SPECIAL	LR157888 CLIP - SPECIAL With Weld Nut / From: MA000001	-	1	Enquire
HN1	FX108046	NUT - LOCKING	FX108046 NUT - LOCKING M8, Upper Bracket / From: MA000001	-	2	Enquire
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8, Outlet / From: MA000001	-	2	Enquire
HS1	LR149652	SCREW AND WASHER	LR149652 SCREW AND WASHER Lower Bracket, M8 X 22MM / From: MA000001	-	4	Enquire
HS2	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER M8 x 24MM, To Body / From: MA000001	-	4	Enquire
HT1	LR092114	STUD	LR092114 STUD M8 X 17.5 + M8 X 20, Upper Bracket / From: MA000001	-	2	Enquire
5A262A	LR134608	INSULATOR - RUBBER	LR134608 INSULATOR - RUBBER Front / From: MA000001	-	1	Enquire
5A262B	LR125106	INSULATOR - RUBBER	LR125106 INSULATOR - RUBBER RH/LH / From: MA000001	-	2	Enquire
5B208	LR141497	CLAMP - EXHAUST	LR141497 CLAMP - EXHAUST Turbocharger Outlet / From: MA000001	-	1	Enquire
5E217A	LR141527	BRACKET - TURBOCHARGER	LR141527 BRACKET - TURBOCHARGER Turbocharger / From: MA000001	-	1	Enquire
5E217B	LR157882	BRACKET - EXHAUST	LR157882 BRACKET - EXHAUST To Transmission / From: MA000001	-	1	Enquire
5E217C	LR157884	BRACKET - EXHAUST	LR157884 BRACKET - EXHAUST Side / From: MA000001	-	1	Enquire
5E241	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet / From: MA000001	-	1	Enquire
5F250	LR141510	CATALYST AND PARTICLE FILTER	LR141510 CATALYST AND PARTICLE FILTER From: MA000001	-	1	Enquire
5H221	LR141517	CATALYTIC CONVERTER	LR141517 CATALYTIC CONVERTER From: MA000001	-	1	Enquire
6L612	LR157889	GASKET	LR157889 GASKET Exhaust pipe / From: MA000001	-	1	Enquire
9H334A	LR157885	TUBE - EXHAUST PRESSURE	LR157885 TUBE - EXHAUST PRESSURE Front / From: MA000001	-	1	Enquire
9H334B	LR157886	TUBE - EXHAUST PRESSURE	LR157886 TUBE - EXHAUST PRESSURE Rear / From: MA000001	-	1	Enquire
