Oil Cooler And Filter (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Oil Cooler And Filter (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR170968 O-RING $4.35 IN STOCK
Photo Part No Description Price (each) Stock
LR073736 SCREW $1.63 To Order
Photo Part No Description Price (each) Stock
LR073673 SCREW $2.70 To Order
Photo Part No Description Price (each) Stock
LR073669 KIT - ELEMENT & GASKET - OIL FILTER $23.27 IN STOCK
Photo Part No Description Price (each) Stock
LR135718 SWITCH - OIL PRESSURE $58.48 To Order
Photo Part No Description Price (each) Stock
LR073868 O-RING $4.13 To Order
Photo Part No Description Price (each) Stock
LR073869 SEAL $3.86 To Order
Photo Part No Description Price (each) Stock
LR073870 SEAL $3.73 To Order
Photo Part No Description Price (each) Stock
LR139756 OIL COOLER $469.70 To Order
Photo Part No Description Price (each) Stock
LR073670 COVER - OIL FILTER $66.37 To Order
Photo Part No Description Price (each) Stock
LR097159 OIL FILTER - ASSEMBLY $220.70 To Order
Photo Part No Description Price (each) Stock
LR132321 GASKET - OIL COOLER $50.20 To Order
View All

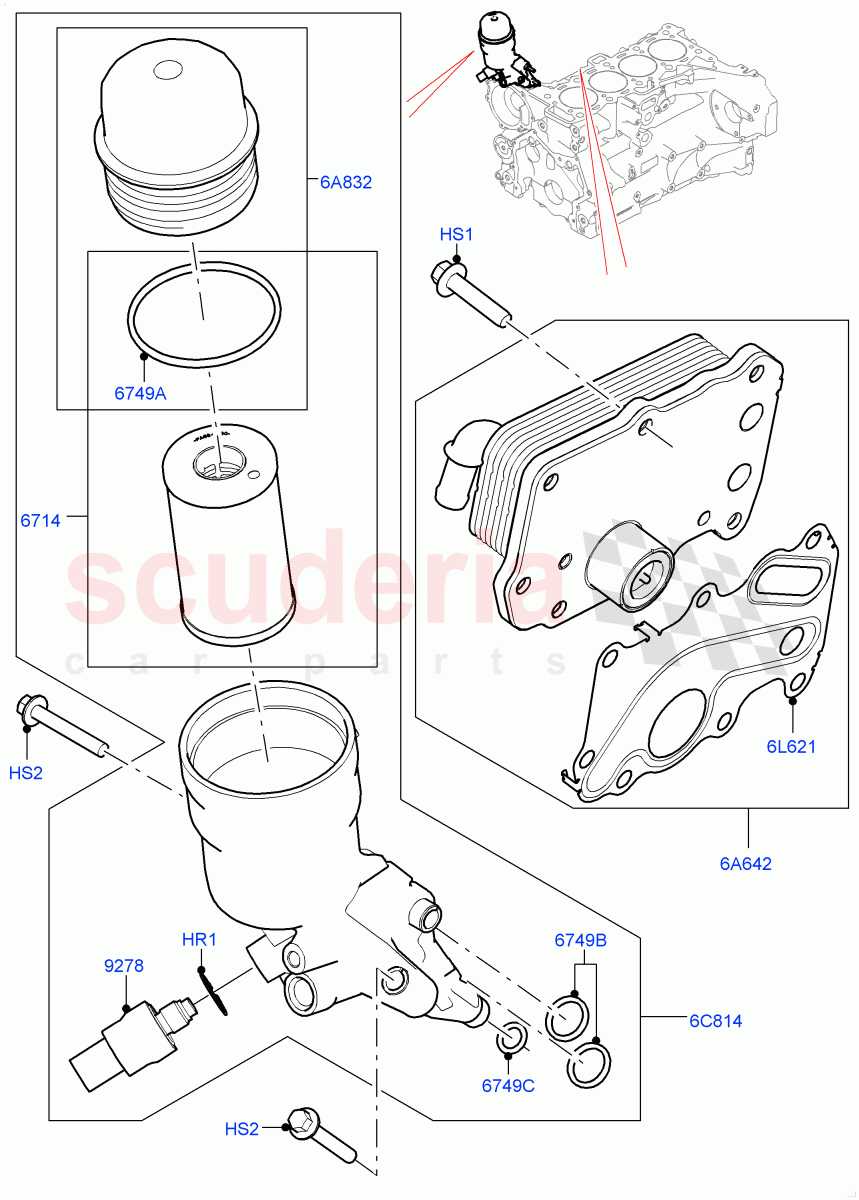

Oil Cooler And Filter (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR170968
O-RING
Sensor - Oil Pressure / From: MA000001
IN STOCK 		$4.35 1
HS1 LR073736
SCREW
M8 X 30MM, Oil Cooler / From: MA000001 		$1.63 7
HS2 LR073673
SCREW
M6 X 40MM / From: MA000001 		$2.70 3
6A642 LR139756
OIL COOLER
From: MA000001 		$469.70 1
6A832 LR073670
COVER - OIL FILTER
Element And Seal / From: MA000001 		$66.37 1
6C814 LR097159
OIL FILTER - ASSEMBLY
From: MA000001 		$220.70 1
6L621 LR132321
GASKET - OIL COOLER
Oil Cooler / From: MA000001 		$50.20 1
6714 LR073669
KIT - ELEMENT & GASKET - OIL FILTER
Element And Seal / From: MA000001
IN STOCK 		$23.27 1
6749A LR073868
O-RING
From: MA000001 		$4.13 1
6749B LR073869
SEAL
From: MA000001 		$3.86 4
6749C LR073870
SEAL
Drain / From: MA000001 		$3.73 1
9278 LR135718
SWITCH - OIL PRESSURE
From: MA000001 		$58.48 1
