Cylinder Head Cover (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Cylinder Head Cover (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR074133 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR075631 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073781 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR154827 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073649 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR074137 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000335 DOWEL - PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR139771 COVER - CYLINDER HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR073784 GASKET - CAMSHAFT COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR141355 PIPE - OIL INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR073782 CAP - OIL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR141288 COVER - INSULATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR139669 INSULATOR PAD Enquire To Order
Photo Part No Description Price (each) Stock
LR139691 SENSOR - CAMSHAFT POSITION Enquire To Order
View All

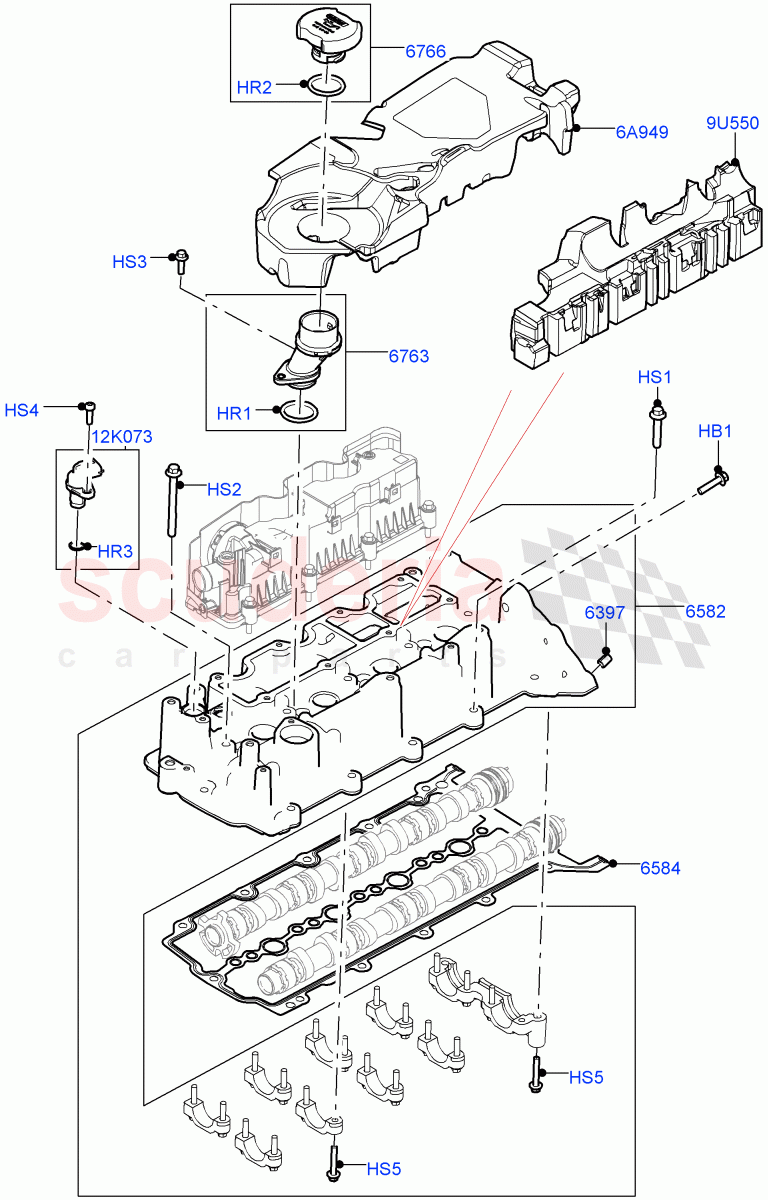

Cylinder Head Cover (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR074133
BOLT
Lifting Eye, M10 X 30MM / From: MA000001 		- 3 Enquire
HR1 LR075631
O-RING
FILLER, 		- 1 Enquire
HR2 LR073781
O-RING
Filler Cap, 		- 1 Enquire
HR3 LR154827
O-RING
Camshaft Position Sensor, 		- 1 Enquire
HS1 LR073649
SCREW
2.0L AJ21D4 Diesel Mid / M8 x 40MM / From: MA000001 		- 11 Enquire
HS2 LR074137
SCREW
2.0L AJ21D4 Diesel Mid / M8 x 60mm / From: MA000001 		- 5 Enquire
HS3 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001 		- 1 Enquire
HS4 LR073720
SCREW
M6 X 20MM / From: MA000001 		- 1 Enquire
HS5 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: MA000001 		- 20 Enquire
6A949 LR141288
COVER - INSULATOR
From: MA000001 		- 1 Enquire
9U550 LR139669
INSULATOR PAD
Camshaft Cover / From: MA000001 		- 1 Enquire
12K073 LR139691
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: MA000001 		- 1 Enquire
6397 LR000335
DOWEL - PIN 		- 2 Enquire
6582 LR139771
COVER - CYLINDER HEAD
From: MA000001 		- 1 Enquire
6584 LR073784
GASKET - CAMSHAFT COVER
From: MA000001 		- 1 Enquire
6763 LR141355
PIPE - OIL INLET
From: MA000001 		- 1 Enquire
6766 LR073782
CAP - OIL FILLER
From: MA000001 		- 1 Enquire
