Instrument Panel (Internal Components) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Instrument Panel (Internal Components)

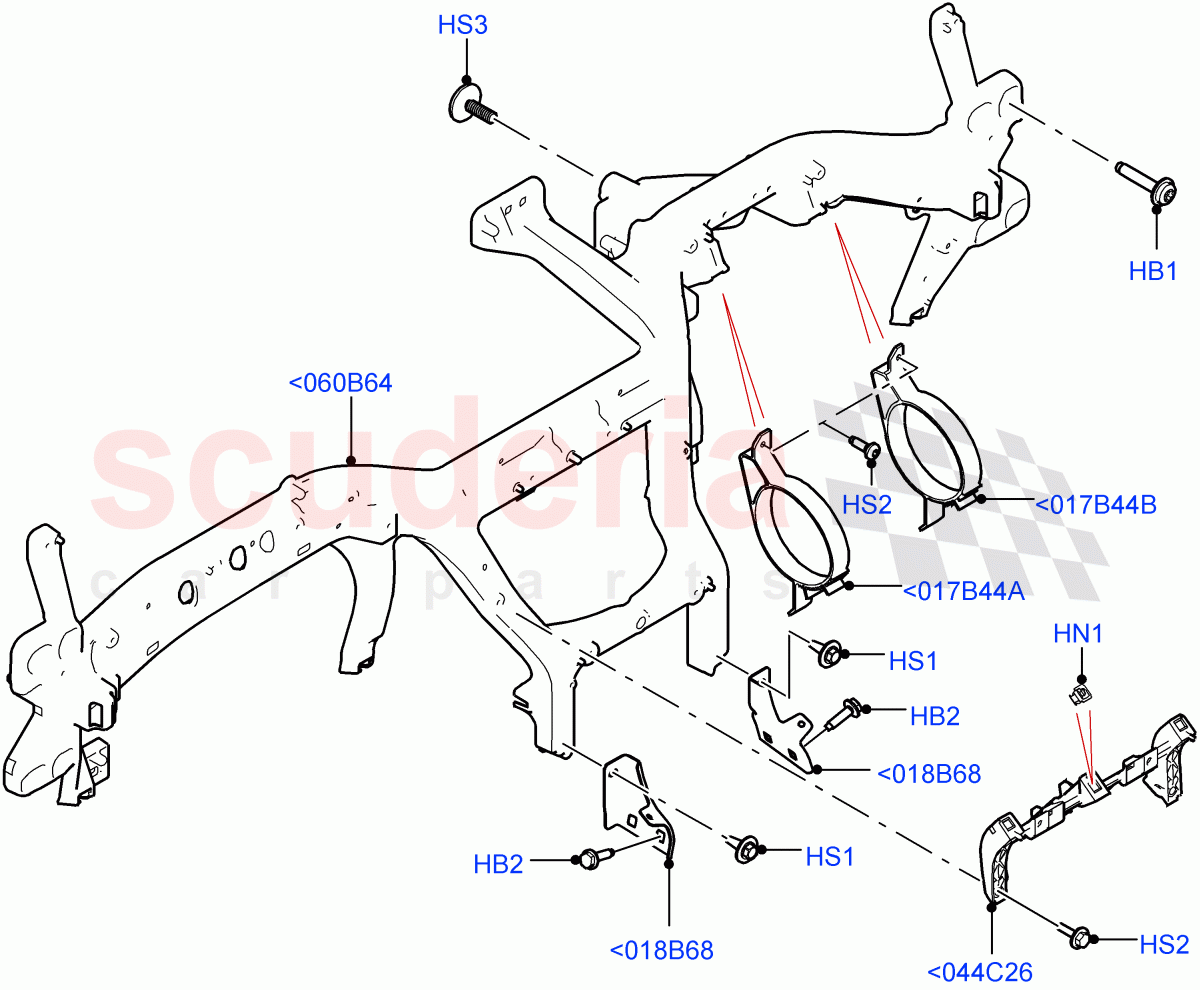

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYG000052	BOLT	Enquire	To Order
	LR118182	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030752	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096462	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036723	SCREW - OVAL HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500031	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091628	BRACKET - INSTRUMENT PANEL	Enquire	To Order
	LR091631	BRACKET - INSTRUMENT PANEL	Enquire	To Order
	LR149855	BRACKET - INSTRUMENT PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR096451	MOULDING - INSTRUMENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091621	REINFORCEMENT - INSTRUMENT PANEL	Enquire	To Order
	LR091623	REINFORCEMENT - INSTRUMENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091629	BRACKET - ENERGY ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091630	BRACKET - ENERGY ABSORBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B44A	LR091629	BRACKET - ENERGY ABSORBER	LR091629 BRACKET - ENERGY ABSORBER With Knee Protection	-	1	Enquire
<017B44B	LR091630	BRACKET - ENERGY ABSORBER	LR091630 BRACKET - ENERGY ABSORBER With Knee Protection	-	1	Enquire
<018B68	LR091628	BRACKET - INSTRUMENT PANEL	LR091628 BRACKET - INSTRUMENT PANEL RH / To: LA999999	-	1	Enquire
<018B68	LR091631	BRACKET - INSTRUMENT PANEL	LR091631 BRACKET - INSTRUMENT PANEL LH / To: LA999999	-	1	Enquire
<018B68	LR149855	BRACKET - INSTRUMENT PANEL	LR149855 BRACKET - INSTRUMENT PANEL LH / From: MA000001	-	1	Enquire
<018B68	LR149854	BRACKET - INSTRUMENT PANEL	LR149854 BRACKET - INSTRUMENT PANEL RH / From: MA000001	-	1	Enquire
<044C26	LR096451	MOULDING - INSTRUMENT PANEL	LR096451 MOULDING - INSTRUMENT PANEL	-	1	Enquire
<060B64	LR091621	REINFORCEMENT - INSTRUMENT PANEL	LR091621 REINFORCEMENT - INSTRUMENT PANEL LHD	-	1	Enquire
<060B64	LR091623	REINFORCEMENT - INSTRUMENT PANEL	LR091623 REINFORCEMENT - INSTRUMENT PANEL RHD	-	1	Enquire
HB1	DYG000052	BOLT	DYG000052 BOLT Frame To Body, M8 X 45MM, Torx / To: LA276038	-	4	Enquire
HB1	LR118182	SCREW AND WASHER	LR118182 SCREW AND WASHER Frame To Body, M8 x 41.5MM / From: LA276039	-	4	Enquire
HB2	LR030752	BOLT AND WASHER - HEX.HEAD	LR030752 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 x 22MM	-	4	Enquire
HN1	LR096462	CLIP	LR096462 CLIP 4.2	-	1	Enquire
HS1	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM	-	2	Enquire
HS2	LR036723	SCREW - OVAL HEAD	LR036723 SCREW - OVAL HEAD 6 X 1.42 X 16	-	4	Enquire
HS3	AYP500031	SCREW	AYP500031 SCREW Frame To Body, M8 X 25MM	-	1	Enquire
