Heater Hoses (3.0L Aj20D6 Diesel High, Fuel Heater W/Pk Heat With Remote) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Heater Hoses (3.0L AJ20D6 Diesel High, Fuel Heater W/Pk Heat With Remote) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BTR2985 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR122683 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR141671 TUBE - HEATER WATER Enquire To Order
LR157863 TUBE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR140977 TUBE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR140981 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR112656 BRACKET - COOLING HOSE Enquire To Order
View All

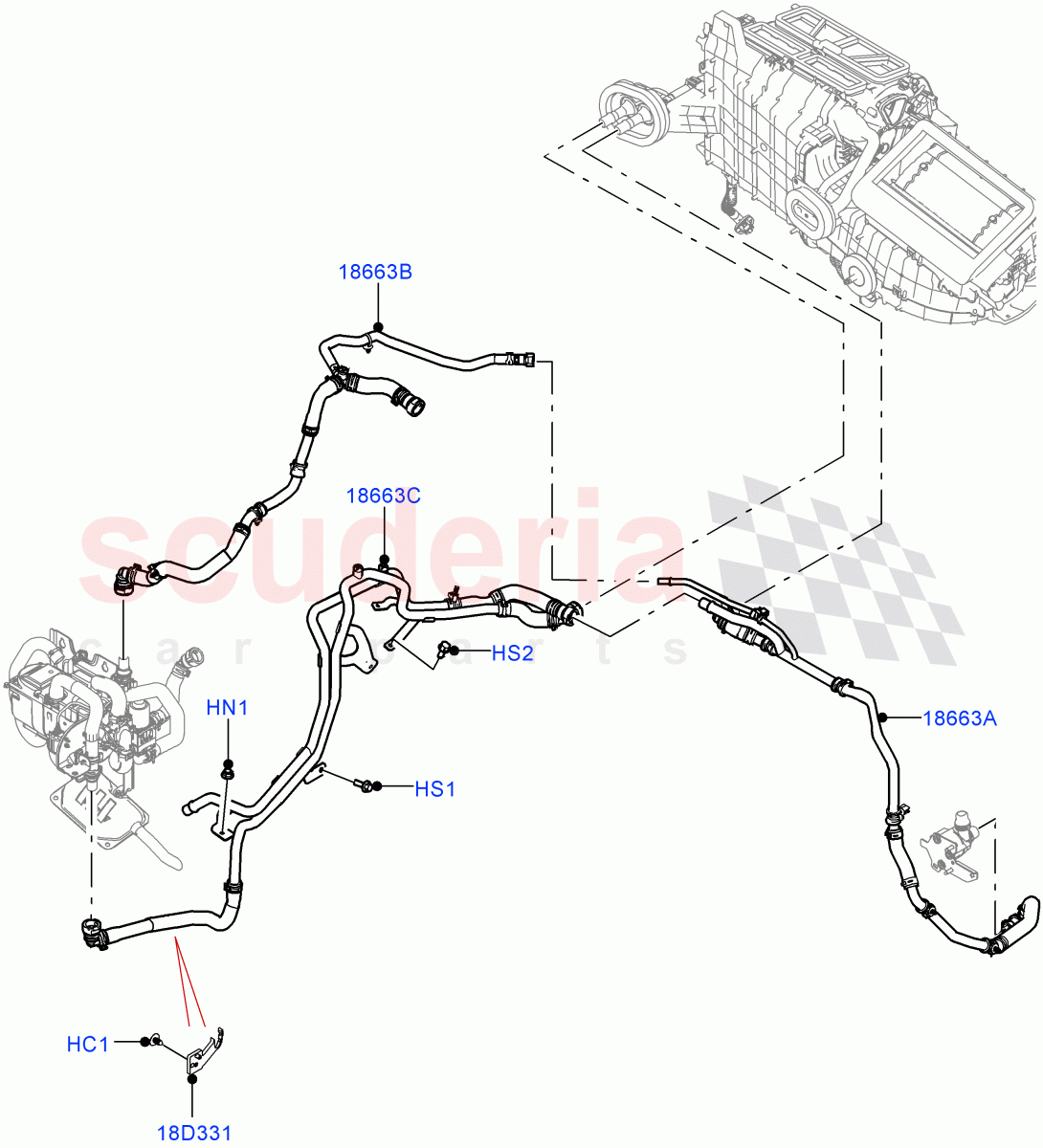

Heater Hoses (3.0L AJ20D6 Diesel High, Fuel Heater W/Pk Heat With Remote) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 BTR2985
CLIP
6.5 x 6, Push Pin / From: MA000001 		- 1 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: MA000001 		- 1 Enquire
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001 		- 2 Enquire
HS2 LR122683
SCREW
M6 X 16MM / From: MA000001 		- 2 Enquire
18D331 LR112656
BRACKET - COOLING HOSE
From: MA000001 		- 1 Enquire
18663A LR141671
TUBE - HEATER WATER
From Water Pump, To HVAC Unit / From: MA000001 / To: MA312737 		- 1 Enquire
18663A LR157863
TUBE - HEATER WATER
From Water Pump, To HVAC Unit / From: MA312738 		- 1 Enquire
18663B LR140977
TUBE - HEATER WATER
To Fuel Fired Heater / From: MA000001 		- 1 Enquire
18663C LR140981
HOSE - HEATER WATER
To Fuel Fired Heater, To HVAC Unit / From: MA000001 		- 1 Enquire
