Anti-Lock Braking System (ABS/Speed Sensor) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Anti-Lock Braking System (ABS/Speed Sensor)

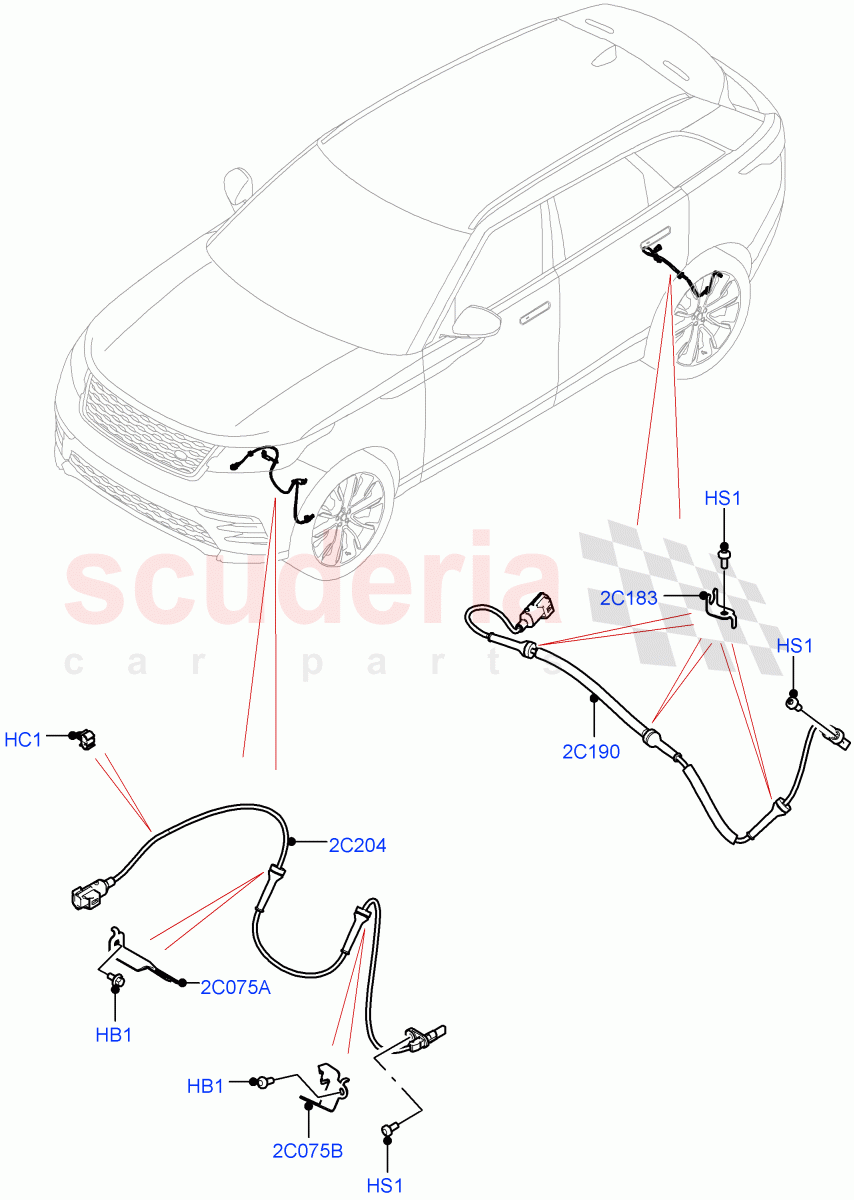

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037085	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062155	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090859	SENSOR - ABS	Enquire	To Order
	LR141685	SENSOR - ABS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140695	SENSOR - ABS	Enquire	To Order
	LR140695	SENSOR - ABS	Enquire	To Order
	LR141682	SENSOR - ABS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090863	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order
	LR090864	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090861	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order
	LR090862	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order
	LR156333	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126	BOLT	FS106126 BOLT Hexagonal Head, M6 x 12MM	-	2	Enquire
HC1	LR037085	CLIP - DOUBLE	LR037085 CLIP - DOUBLE 6MM, Double	-	2	Enquire
HS1	RYP500920	SCREW	RYP500920 SCREW M6 X 14MM, Torx	-	12	Enquire
2C075A	LR090863	BRACKET - ABS SENSOR MOUNTING	LR090863 BRACKET - ABS SENSOR MOUNTING Front, LH - Inner	-	1	Enquire
2C075A	LR090864	BRACKET - ABS SENSOR MOUNTING	LR090864 BRACKET - ABS SENSOR MOUNTING Front, RH - Inner	-	1	Enquire
2C075B	LR090861	BRACKET - ABS SENSOR MOUNTING	LR090861 BRACKET - ABS SENSOR MOUNTING Front, LH - Outer / To: MA308095	-	1	Enquire
2C075B	LR090862	BRACKET - ABS SENSOR MOUNTING	LR090862 BRACKET - ABS SENSOR MOUNTING Front, RH - Outer / To: MA308095	-	1	Enquire
2C075B	LR156333	BRACKET - ABS SENSOR MOUNTING	LR156333 BRACKET - ABS SENSOR MOUNTING Front, LH - Outer / From: MA308096	-	1	Enquire
2C075B	LR156334	BRACKET - ABS SENSOR MOUNTING	LR156334 BRACKET - ABS SENSOR MOUNTING Front, RH - Outer / From: MA308096	-	1	Enquire
2C183	LR062155	BRACKET - ABS SENSOR MOUNTING	LR062155 BRACKET - ABS SENSOR MOUNTING Rear, RH/LH	-	6	Enquire
2C190	LR090859	SENSOR - ABS	LR090859 SENSOR - ABS ABS, Rear / To: LA999999	-	2	Enquire
2C190	LR141685	SENSOR - ABS	LR141685 SENSOR - ABS ABS, Rear / From: MA000001	-	2	Enquire
2C204	LR140695	SENSOR - ABS	LR140695 SENSOR - ABS ABS, Front / To: LA283168	-	2	Enquire
2C204	LR140695	SENSOR - ABS	LR140695 SENSOR - ABS ABS, Front / From: LA283168 / To: LA999999	-	2	Enquire
2C204	LR141682	SENSOR - ABS	LR141682 SENSOR - ABS ABS, Front / From: MA000001	-	2	Enquire
