Speakers (Meridian 3D Surround Sound System) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Speakers (Meridian 3D Surround Sound System) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR042803 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR114151 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500570 NUT - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
LR094020 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR010155 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR091180 RING - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR025875 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR025876 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR091169 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR091170 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR091159 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR140902 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR083936 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR146337 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR141157 BRACKET - SPEAKER Enquire To Order
View All

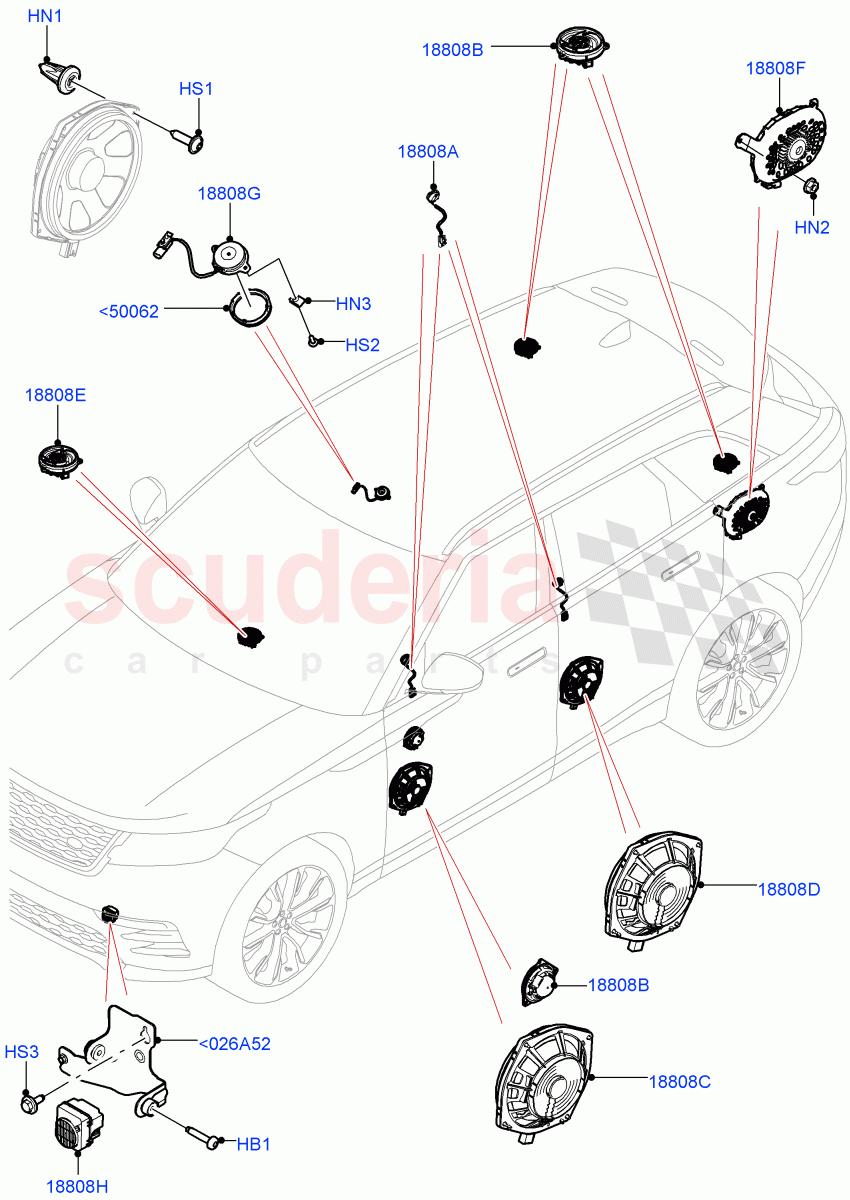

Speakers (Meridian 3D Surround Sound System) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<026A52 LR141157
BRACKET - SPEAKER
External Sound Enhancement / From: MA000001 		- 1 Enquire
<50062 LR091180
RING - RETAINING
Adaptation Ring For Speakers, Located In The Headliner / From: MA000001 		- 2 Enquire
HB1 LR042803
BOLT
External Sound Enhancement / M6 x 28MM, Torx / From: MA000001 		- 2 Enquire
HN1 LR114151
NUT
5X8X8X0.7-1.3, Expanding Rivet / From: MA000001 		- 12 Enquire
HN2 RYH500570
NUT - ADJUSTING
M6, Sub-Woofer / From: MA000001 		- 4 Enquire
HN3 LR094020
NUT - SPECIAL
From: MA000001 		- 4 Enquire
HS1 LR010155
SCREW
M5 X 16MM, Torx, Woofer / From: MA000001 		- 12 Enquire
HS2 PYP500140
SCREW
4.2 x 13MM, Torx / From: MA000001 		- 4 Enquire
HS3 KYP500400
SCREW AND WASHER
External Sound Enhancement / Hexagonal Head, M6 X 16MM / From: MA000001 		- 1 Enquire
18808A LR025875
SPEAKER
Front And Rear Doors, Tweeter / From: MA000001 		- 4 Enquire
18808B LR025876
SPEAKER
100MM, Located In Loadspace, Mid Range / From: MA000001 		- 2 Enquire
18808C LR091169
SPEAKER
Front Door / From: MA000001 		- 2 Enquire
18808D LR091170
SPEAKER
Rear Door / From: MA000001 		- 2 Enquire
18808E LR091159
SPEAKER
100MM, Located In Instrument Panel / From: MA000001 		- 1 Enquire
18808F LR140902
SPEAKER
Rear LH, Sub-Woofer, Wheel Arch / From: MA000001 		- 1 Enquire
18808G LR083936
SPEAKER
Front, Located In The Headliner / From: MA000001 		- 2 Enquire
18808H LR146337
SPEAKER
External Sound Enhancement / From: MA000001 		- 1 Enquire
