Hood And Related Parts of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Hood And Related Parts

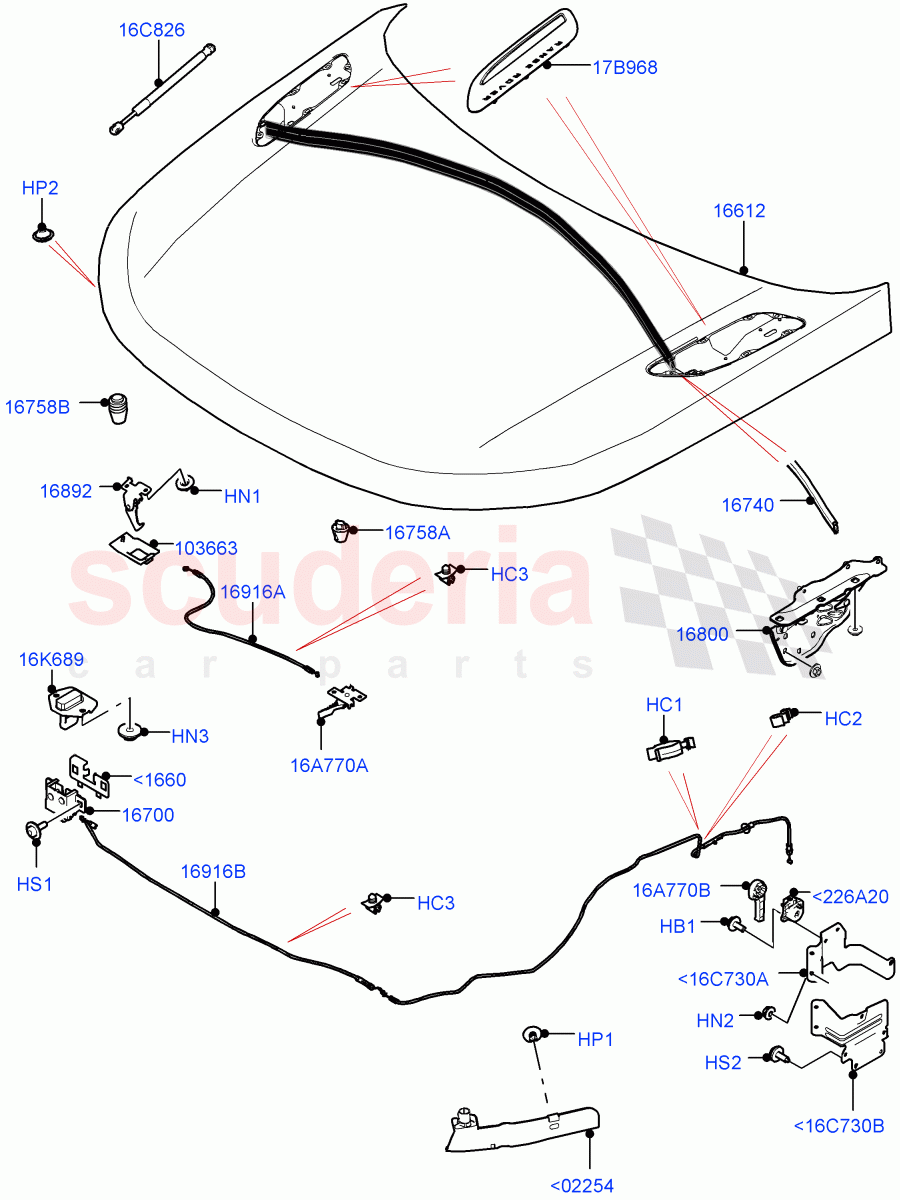

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093340	CLIP - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093341	CLIP - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013332	CLIP - SPECIAL	Enquire	To Order
	LR013332	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094188	NUT AND WASHER - HEX.	Enquire	To Order
	LR094188	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB000180	PLUG - THREADED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB500100	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033401	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500400	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093226	SPACER - HOOD LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091709	HOOD	Enquire	To Order
	LR091710	HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065339	LATCH - HOOD	Enquire	To Order
	LR065340	LATCH - HOOD	Enquire	To Order
	LR123518	LATCH - HOOD	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092608	SEAL - BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091713	HINGE - HOOD	Enquire	To Order
	LR091715	HINGE - HOOD	Enquire	To Order
	LR111644	HINGE - HOOD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR056513	CATCH - SAFETY	Enquire	To Order
	LR056514	CATCH - SAFETY	Enquire	To Order
	LR122950	CATCH - SAFETY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR093342	SHIELD - HOOD LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093912	GUIDE - HOOD LATCH	Enquire	To Order
	LR093911	GUIDE - HOOD LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006639	BUMPER - BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023025	BUMPER - BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093225	CABLE - CONTROL - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093229	CABLE - CONTROL - HOOD	Enquire	To Order
	LR093230	CABLE - CONTROL - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093402	LIFT - GAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084499	STRIKER - HOOD LOCK	Enquire	To Order
	LR138829	STRIKER - HOOD LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092707	GRILLE - HOOD VENT	Enquire	To Order
	LR092708	GRILLE - HOOD VENT	Enquire	To Order
	LR092709	GRILLE - HOOD VENT	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034334	BRACKET - BONNET CONTROL HANDLE MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093224	LEVER - BONNET RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050752	LEVER - BONNET RELEASE	Enquire	To Order
	LR093233	LEVER - BONNET RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093231	BRACKET - BONNET CONTROL HANDLE MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093232	BRACKET - BONNET CONTROL HANDLE MTG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<16C730A	LR093231	BRACKET - BONNET CONTROL HANDLE MTG	LR093231 BRACKET - BONNET CONTROL HANDLE MTG RHD	-	1	Enquire
<16C730B	LR093232	BRACKET - BONNET CONTROL HANDLE MTG	LR093232 BRACKET - BONNET CONTROL HANDLE MTG RHD	-	1	Enquire
<226A20	LR034334	BRACKET - BONNET CONTROL HANDLE MTG	LR034334 BRACKET - BONNET CONTROL HANDLE MTG Support	-	1	Enquire
<1660	LR093226	SPACER - HOOD LATCH	LR093226 SPACER - HOOD LATCH	-	2	Enquire
<02254	LR093342	SHIELD - HOOD LATCH	LR093342 SHIELD - HOOD LATCH Shield	-	1	Enquire
HB1	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM	-	1	Enquire
HC1	LR093340	CLIP - PIPE	LR093340 CLIP - PIPE Cable Anchor Clip (Double)	-	2	Enquire
HC2	LR093341	CLIP - PIPE	LR093341 CLIP - PIPE Cable Anchor Clip (Double)	-	2	Enquire
HC3	LR013332	CLIP - SPECIAL	LR013332 CLIP - SPECIAL 5.0MM, Cable Anchor Clip (Single), RH/LH, Upper	-	4	Enquire
HC3	LR013332	CLIP - SPECIAL	LR013332 CLIP - SPECIAL 5.0MM, Cable Anchor Clip (Single), Lever, Lower, Side	-	3	Enquire
HN1	LR094188	NUT AND WASHER - HEX.	LR094188 NUT AND WASHER - HEX. Hexagonal Head, Hood Catch, M6, Nut And Washer	-	4	Enquire
HN1	LR094188	NUT AND WASHER - HEX.	LR094188 NUT AND WASHER - HEX. Hexagonal Head, Hood Latch, M6, Nut And Washer, Upper	-	2	Enquire
HN2	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. RHD / Hexagonal Head, M6, Nut And Washer	-	2	Enquire
HN3	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	-	10	Enquire
HP1	AYB000180	PLUG - THREADED	AYB000180 PLUG - THREADED 6.35 X 11.0MM	-	1	Enquire
HP2	AYB500100	PLUG	AYB500100 PLUG Blanking	-	4	Enquire
HS1	LR033401	SCREW AND WASHER	LR033401 SCREW AND WASHER M6 x 19MM	-	4	Enquire
HS2	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER Hexagonal Head, M6 X 16MM	-	3	Enquire
16A770A	LR093224	LEVER - BONNET RELEASE	LR093224 LEVER - BONNET RELEASE Centre, Latch	-	1	Enquire
16A770B	LR050752	LEVER - BONNET RELEASE	LR050752 LEVER - BONNET RELEASE LHD / Latch, Side	-	1	Enquire
16A770B	LR093233	LEVER - BONNET RELEASE	LR093233 LEVER - BONNET RELEASE RHD / Latch, Side	-	1	Enquire
16C826	LR093402	LIFT - GAS	LR093402 LIFT - GAS	-	2	Enquire
16K689	LR084499	STRIKER - HOOD LOCK	LR084499 STRIKER - HOOD LOCK To: LA262850	-	2	Enquire
16K689	LR138829	STRIKER - HOOD LOCK	LR138829 STRIKER - HOOD LOCK From: LA262851	-	2	Enquire
17B968	LR092707	GRILLE - HOOD VENT	LR092707 GRILLE - HOOD VENT Hood Scoop - Black / RH / To: MA664260	-	1	Enquire
17B968	LR092708	GRILLE - HOOD VENT	LR092708 GRILLE - HOOD VENT Hood Scoop - Black / LH / To: MA664260	-	1	Enquire
17B968	LR092709	GRILLE - HOOD VENT	LR092709 GRILLE - HOOD VENT Hood Scoop - Burnished Copper / RH / To: JA753978	-	1	Enquire
17B968	LR092710	GRILLE - HOOD VENT	LR092710 GRILLE - HOOD VENT Hood Scoop - Burnished Copper / LH / To: JA753978	-	1	Enquire
17B968	LR110610	GRILLE - HOOD VENT	LR110610 GRILLE - HOOD VENT Hood Scoop - Burnished Copper / RH / From: JA753979 / To: MA664260	-	1	Enquire
17B968	LR110611	GRILLE - HOOD VENT	LR110611 GRILLE - HOOD VENT Hood Scoop - Burnished Copper / LH / From: JA753979 / To: MA664260	-	1	Enquire
17B968	LR116890	GRILLE - HOOD VENT	LR116890 GRILLE - HOOD VENT Hood Scoop - Graphite / RH / From: KA000001 / To: LA999999	-	1	Enquire
17B968	LR116891	GRILLE - HOOD VENT	LR116891 GRILLE - HOOD VENT Hood Scoop - Graphite / LH / From: KA000001 / To: LA999999	-	1	Enquire
17B968	LR153988	GRILLE - HOOD VENT	LR153988 GRILLE - HOOD VENT Hood Scoop - Graphite / RH / From: MA000001 / To: MA999999	-	1	Enquire
17B968	LR153989	GRILLE - HOOD VENT	LR153989 GRILLE - HOOD VENT Hood Scoop - Graphite / LH / From: MA000001 / To: MA999999	-	1	Enquire
17B968	LR153964	MOULDING - DOOR OUTSIDE	LR153964 MOULDING - DOOR OUTSIDE Hood Scoop - Black / RH / From: MA664261	-	1	Enquire
17B968	LR153965	MOULDING - DOOR OUTSIDE	LR153965 MOULDING - DOOR OUTSIDE Hood Scoop - Burnished Copper / RH / From: MA664261	-	1	Enquire
17B968	LR153967	MOULDING - DOOR OUTSIDE	LR153967 MOULDING - DOOR OUTSIDE Hood Scoop - Black / LH / From: MA664261	-	1	Enquire
17B968	LR153968	MOULDING - DOOR OUTSIDE	LR153968 MOULDING - DOOR OUTSIDE Hood Scoop - Burnished Copper / LH / From: MA664261	-	1	Enquire
17B968	LR161853	GRILLE - HOOD VENT	LR161853 GRILLE - HOOD VENT Hood Scoop - Platinum Atlas / RH / From: NA000001	-	1	Enquire
17B968	LR161854	GRILLE - HOOD VENT	LR161854 GRILLE - HOOD VENT Hood Scoop - Platinum Atlas / LH / From: NA000001	-	1	Enquire
16612	LR091709	HOOD	LR091709 HOOD Less Bonnet Scoop	-	1	Enquire
16612	LR091710	HOOD	LR091710 HOOD Hood Scoop - Burnished Copper	-	1	Enquire
16700	LR065339	LATCH - HOOD	LR065339 LATCH - HOOD LH / To: LA260667	-	1	Enquire
16700	LR065340	LATCH - HOOD	LR065340 LATCH - HOOD RH / To: KA797058	-	1	Enquire
16700	LR123518	LATCH - HOOD	LR123518 LATCH - HOOD RH / From: KA797059 / To: KA799664	-	1	Enquire
16700	LR125366	LATCH - HOOD	LR125366 LATCH - HOOD RH / From: KA799665 / To: LA260667	-	1	Enquire
16700	LR138825	LATCH - HOOD	LR138825 LATCH - HOOD LH / From: LA260668 / To: MA327610	-	1	Enquire
16700	LR138826	LATCH - HOOD	LR138826 LATCH - HOOD RH / From: LA260668 / To: MA327610	-	1	Enquire
16700	LR173840	LATCH - HOOD	LR173840 LATCH - HOOD LH / From: MA327611	-	1	Enquire
16700	LR173841	LATCH - HOOD	LR173841 LATCH - HOOD RH / From: MA327611	-	1	Enquire
16740	LR092608	SEAL - BONNET	LR092608 SEAL - BONNET For Bonnet	-	1	Enquire
16758A	LR006639	BUMPER - BONNET	LR006639 BUMPER - BONNET	-	2	Enquire
16758B	LR023025	BUMPER - BONNET	LR023025 BUMPER - BONNET	-	2	Enquire
16800	LR091713	HINGE - HOOD	LR091713 HINGE - HOOD RH / To: JA739614	-	1	Enquire
16800	LR091715	HINGE - HOOD	LR091715 HINGE - HOOD LH / To: JA739614	-	1	Enquire
16800	LR111644	HINGE - HOOD	LR111644 HINGE - HOOD RH / From: JA739615	-	1	Enquire
16800	LR111645	HINGE - HOOD	LR111645 HINGE - HOOD LH / From: JA739615	-	1	Enquire
16892	LR056513	CATCH - SAFETY	LR056513 CATCH - SAFETY RH / To: KA799282	-	1	Enquire
16892	LR056514	CATCH - SAFETY	LR056514 CATCH - SAFETY LH / To: KA799282	-	1	Enquire
16892	LR122950	CATCH - SAFETY	LR122950 CATCH - SAFETY LH / From: KA799283	-	1	Enquire
16892	LR122949	CATCH - SAFETY	LR122949 CATCH - SAFETY RH / From: KA799283	-	1	Enquire
16916A	LR093225	CABLE - CONTROL - HOOD	LR093225 CABLE - CONTROL - HOOD RH/LH, Upper	-	2	Enquire
16916B	LR093229	CABLE - CONTROL - HOOD	LR093229 CABLE - CONTROL - HOOD LHD / Lower, Side	-	1	Enquire
16916B	LR093230	CABLE - CONTROL - HOOD	LR093230 CABLE - CONTROL - HOOD RHD / Lower, Side	-	1	Enquire
103663	LR093912	GUIDE - HOOD LATCH	LR093912 GUIDE - HOOD LATCH RH	-	1	Enquire
103663	LR093911	GUIDE - HOOD LATCH	LR093911 GUIDE - HOOD LATCH LH	-	1	Enquire
