Starter Motor (2.0L I4 Dsl Mid Dohc Aj200, 2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Starter Motor (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110156 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR054367 CAP - BREATHER TUBE Enquire To Order
LR054367 CAP - BREATHER TUBE Enquire To Order
LR054367 CAP - BREATHER TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR126163 STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR090952 TUBE - BREATHER Enquire To Order
LR090952 TUBE - BREATHER Enquire To Order
LR090952 TUBE - BREATHER Enquire To Order
View All

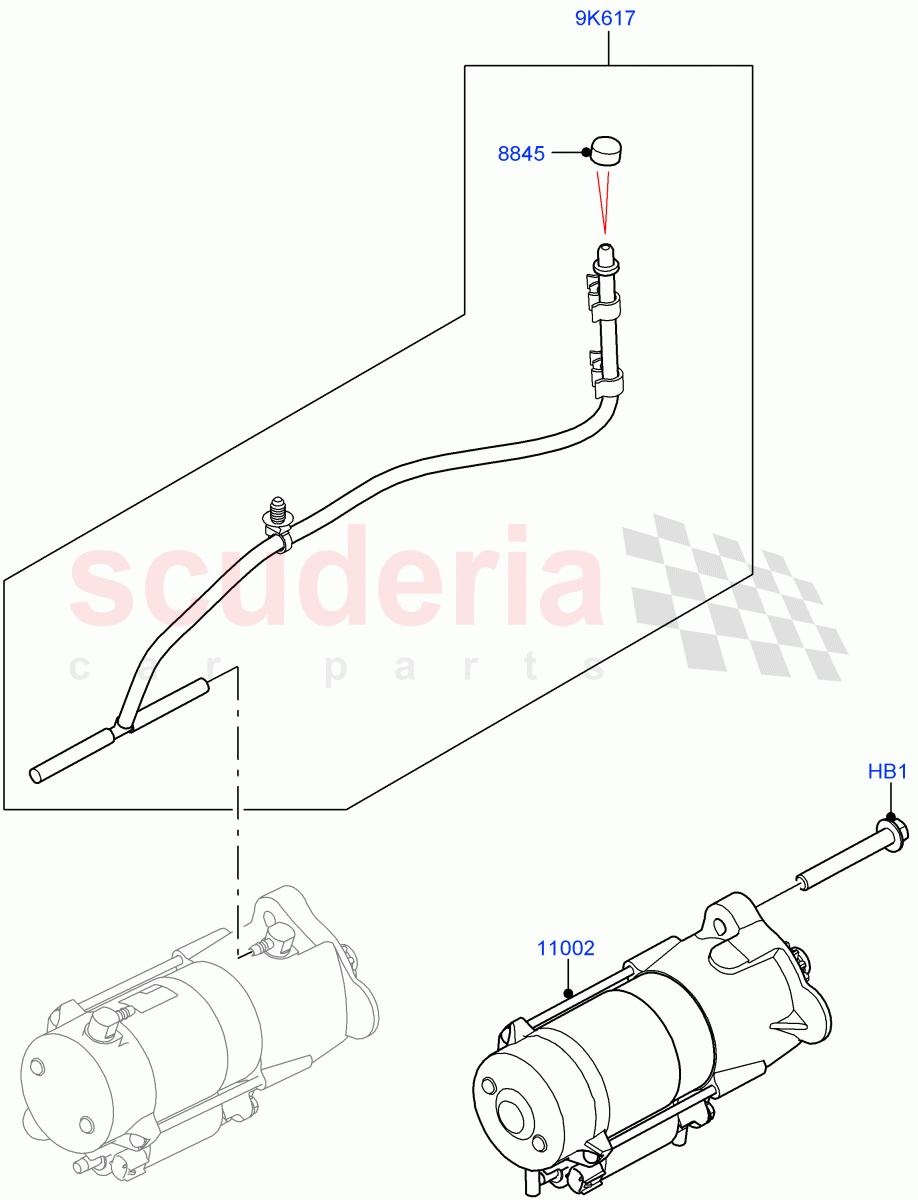

Starter Motor (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110156
BOLT - HEX.HEAD
Hexagonal Head, M10 x 75MM 		- 2 Enquire
9K617 LR090952
TUBE - BREATHER
Complete, Only Required When Servicing Cars Built With Sealed Starters. Not Required For Non Sealed Starter Motors. / From: KA200000 / To: KA205096 		- 1 Enquire
9K617 LR090952
TUBE - BREATHER
Complete, Only Required When Servicing Cars Built With Sealed Starters. Not Required For Non Sealed Starter Motors. / To: JA999999 		- 1 Enquire
9K617 LR090952
TUBE - BREATHER
Complete, Only Required When Servicing Cars Built With Sealed Starters. Not Required For Non Sealed Starter Motors. / From: KA700000 / To: KA799999 		- 1 Enquire
8845 LR054367
CAP - BREATHER TUBE
Breather Pipe / From: KA200000 / To: KA205096 		- 1 Enquire
8845 LR054367
CAP - BREATHER TUBE
Breather Pipe / To: JA999999 		- 1 Enquire
8845 LR054367
CAP - BREATHER TUBE
Breather Pipe / From: KA700000 / To: KA799999 		- 1 Enquire
11002 LR126163
STARTER MOTOR
Non Sealed. When Replacing A Sealed Starter Motor, Breather Tubes Are Not Required And Can Be Discarded 		- 1 Enquire
