Engine Modules And Sensors (2.0L I4 Dsl Mid Dohc Aj200, Rhd, 2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Engine Modules And Sensors (2.0L I4 DSL MID DOHC AJ200, RHD, 2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.88 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
LR098534 MODULE-ENGINE CONTROL $1,375.69 To Order
LR098533 MODULE - ENGINE CONTROL $1,375.69 To Order
LR095710 MODULE-ENGINE CONTROL $1,310.18 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091847 BRACKET - ENGINE CONTROL MODULE $37.91 To Order
Photo Part No Description Price (each) Stock
LR071821 CONTROL UNIT - GLOW PLUG $133.10 To Order
LR125948 CONTROL UNIT - GLOW PLUG $133.10 To Order
LR147217 CONTROL UNIT - GLOW PLUG $110.71 To Order
Photo Part No Description Price (each) Stock
LR091852 BRACKET - ENGINE CONTROL MODULE $14.84 To Order
Photo Part No Description Price (each) Stock
LR091849 BRACKET - MODULE $22.43 To Order
View All

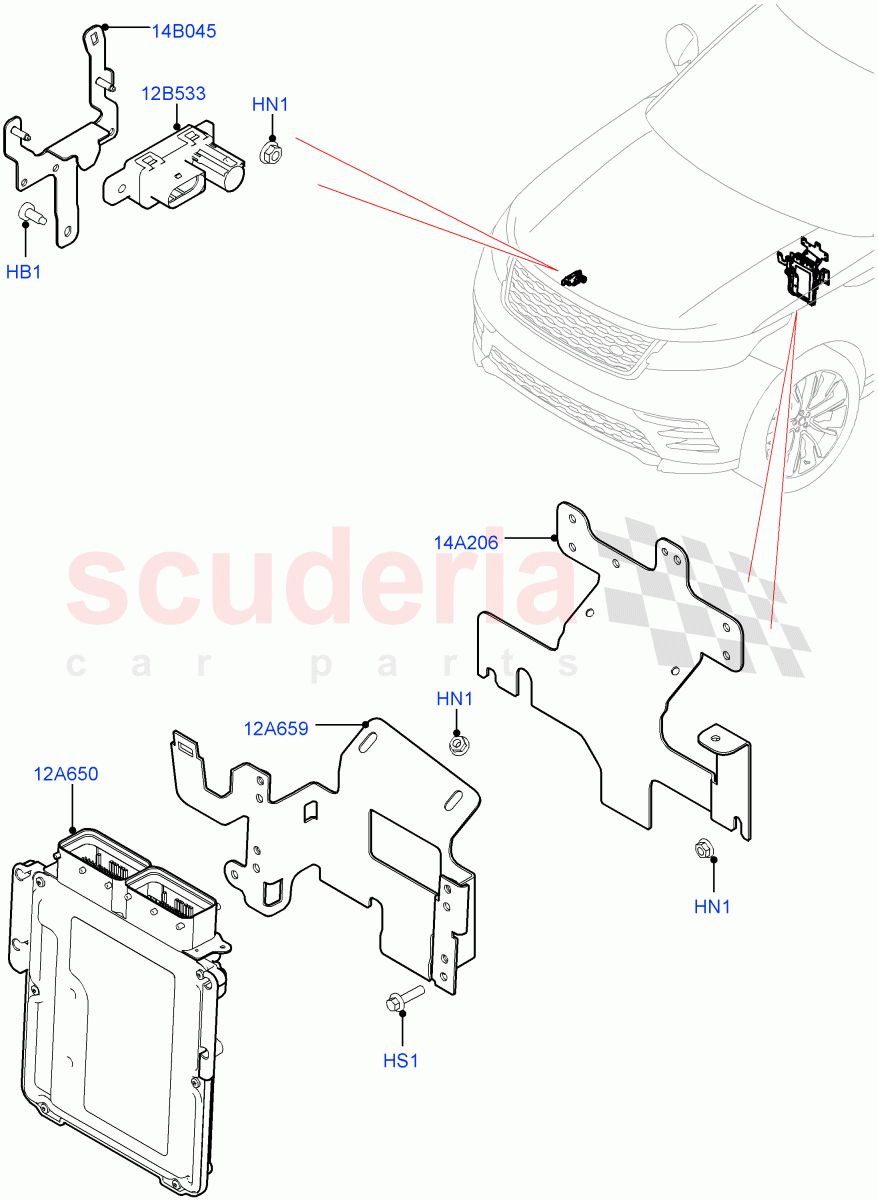

Engine Modules And Sensors (2.0L I4 DSL MID DOHC AJ200, RHD, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 XYG500160
BOLT
M6 x 12MM, Torx
IN STOCK 		$0.88 1
HN1 FN106042
NUT
Frame To Body, Hexagonal Head, M6
IN STOCK 		$1.04 2
HS1 FS106256
SCREW
M6 x 25MM, Mounting Module 		$0.42 4
12A650 LR098534
MODULE-ENGINE CONTROL
2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions / Engine / To: JA700299 		$1,375.69 1
12A650 LR098533
MODULE - ENGINE CONTROL
2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions / Engine / To: JA700299 		$1,375.69 1
12A650 LR095710
MODULE-ENGINE CONTROL
2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions / Engine / To: JA700299 		$1,310.18 1
12A650 LR106372
MODULE-ENGINE CONTROL
2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions / Engine / From: JA700300 / To: JA999999 		$1,292.93 1
12A650 LR106373
MODULE-ENGINE CONTROL
2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF / Engine / From: JA700300 / To: JA999999 		$1,112.35 1
12A650 LR106374
MODULE-ENGINE CONTROL
2.0L I4 DSL MID DOHC AJ200, Stage V Plus DPF / Engine / From: JA700300 / To: JA999999 		$1,331.72 1
12A650 LR117788
MODULE-ENGINE CONTROL
2.0L I4 DSL HIGH DOHC AJ200, EU6D Diesel + DPF Emissions / Engine / From: KA000001 		$1,389.92 1
12A650 LR121299
MODULE-ENGINE CONTROL
2.0L I4 DSL HIGH DOHC AJ200, Stage V Plus DPF / Engine / From: KA000001 		$1,581.43 1
12A650 LR121300
MODULE-ENGINE CONTROL
2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF / Engine / From: KA000001 		$1,519.14 1
12A650 LR121301
MODULE-ENGINE CONTROL
2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions / Engine / From: KA000001 		$1,664.05 1
12A650 LR122382
MODULE-ENGINE CONTROL
2.0L I4 DSL MID DOHC AJ200, EU6D Diesel + DPF Emissions / Engine / From: KA000001 		$1,184.57 1
12A659 LR091847
BRACKET - ENGINE CONTROL MODULE
RHD 		$37.91 1
12B533 LR071821
CONTROL UNIT - GLOW PLUG
Glow Plug, Module / To: LA244897 		$133.10 1
12B533 LR125948
CONTROL UNIT - GLOW PLUG
Glow Plug, Module / From: LA244898 / To: LA291292 		$133.10 1
12B533 LR147217
CONTROL UNIT - GLOW PLUG
Glow Plug, Module / From: LA291293 		$110.71 1
14A206 LR091852
BRACKET - ENGINE CONTROL MODULE
Module 		$14.84 1
14B045 LR091849
BRACKET - MODULE
Glow Plug, Module 		$22.43 1
