Name: Oil Pan/Oil Level Indicator (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)
Rating: 4.3 (1 reviews)

Oil Pan/Oil Level Indicator (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Oil Pan/Oil Level Indicator (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)

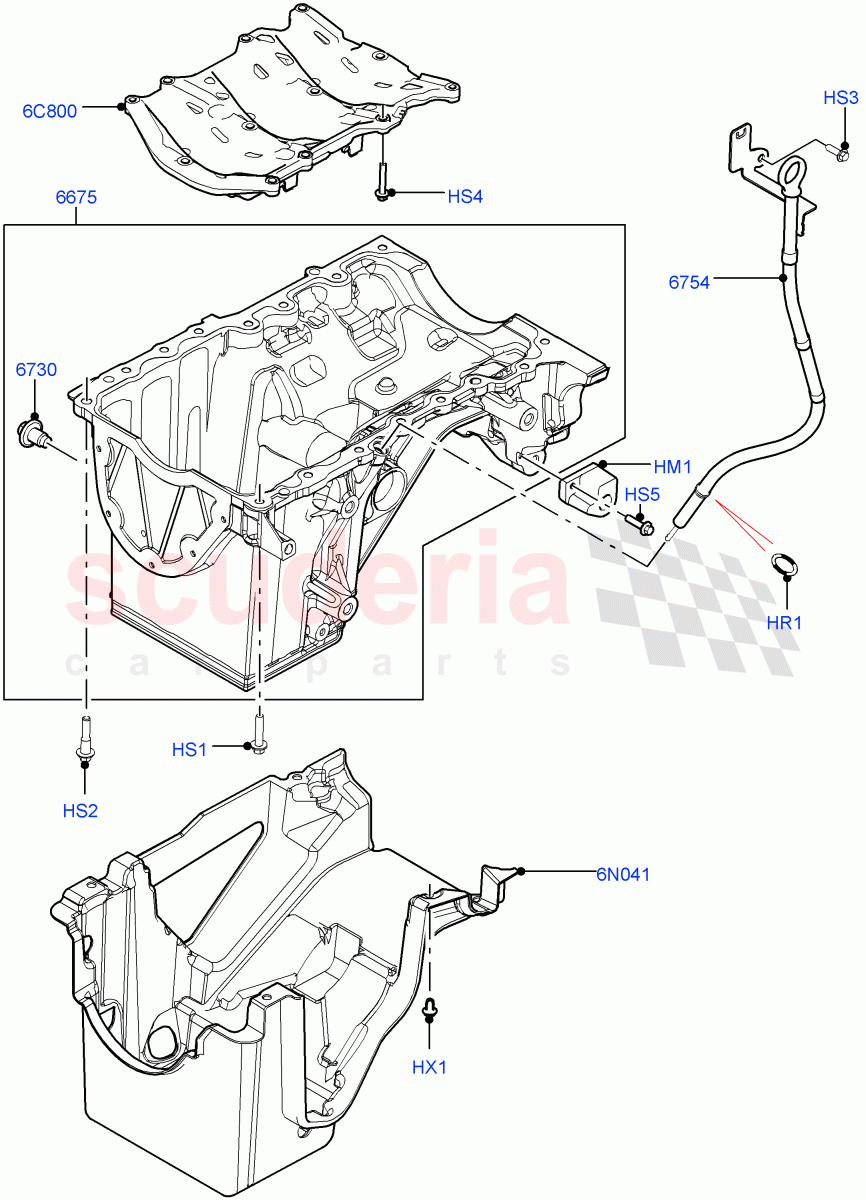

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR101174	SHIM - DIFFERENTIAL DRIVING GR BRG	$21.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$4.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091570	PAN - ENGINE OIL	$537.31	To Order
	LR140951	PAN - ENGINE OIL	$537.31	To Order
	LR154101	PAN - ENGINE OIL	$537.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154091	PLUG - OIL DRAIN	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091566	TUBE - OIL LEVEL INDICATOR	$42.34	To Order
	LR112097	TUBE - OIL LEVEL INDICATOR	$46.26	To Order
	LR122403	TUBE - OIL LEVEL INDICATOR	$40.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085474	TRAY - WINDAGE	$423.31	To Order
	LR130052	TRAY - WINDAGE	$356.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091897	SHIELD - ENGINE PROTECTING	$60.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HM1	LR101174	SHIM - DIFFERENTIAL DRIVING GR BRG	LR101174 SHIM - DIFFERENTIAL DRIVING GR BRG Differential Mounting, Spacer	$21.14	1
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator	$4.96	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm	$2.26	14
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm	$3.30	2
HS3	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.23	1
HS4	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray	$2.20	12
HS5	FS106256	SCREW	FS106256 SCREW M6 x 25MM	$0.42	1
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5	$2.92	4
6C800	LR085474	TRAY - WINDAGE	LR085474 TRAY - WINDAGE To: LA250813	$423.31	1
6C800	LR130052	TRAY - WINDAGE	LR130052 TRAY - WINDAGE From: LA250814	$356.36	1
6N041	LR091897	SHIELD - ENGINE PROTECTING	LR091897 SHIELD - ENGINE PROTECTING Oil Pan	$60.73	1
6675	LR091570	PAN - ENGINE OIL	LR091570 PAN - ENGINE OIL To: LA283320	$537.31	1
6675	LR140951	PAN - ENGINE OIL	LR140951 PAN - ENGINE OIL From: LA283321 / To: MA296471	$537.31	1
6675	LR154101	PAN - ENGINE OIL	LR154101 PAN - ENGINE OIL From: MA296472	$537.31	1
6730	LR154091	PLUG - OIL DRAIN	LR154091 PLUG - OIL DRAIN	$13.95	1
6754	LR091566	TUBE - OIL LEVEL INDICATOR	LR091566 TUBE - OIL LEVEL INDICATOR To: JA728419	$42.34	1
6754	LR112097	TUBE - OIL LEVEL INDICATOR	LR112097 TUBE - OIL LEVEL INDICATOR From: JA728420 / To: KA787145	$46.26	1
6754	LR122403	TUBE - OIL LEVEL INDICATOR	LR122403 TUBE - OIL LEVEL INDICATOR From: KA787146	$40.39	1
