Cylinder Head Cover (2.0L I4 Dsl Mid Dohc Aj200, 2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Cylinder Head Cover (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR074133 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR075631 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073781 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR095781 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073649 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073650 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000335 DOWEL - PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR073646 COVER - CYLINDER HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR073784 GASKET - CAMSHAFT COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR082332 PIPE - OIL INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR073782 CAP - OIL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR091898 COVER - ENGINE TOP Enquire To Order
Photo Part No Description Price (each) Stock
LR082280 COVER - INSULATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR074065 SENSOR - CAMSHAFT POSITION Enquire To Order
View All

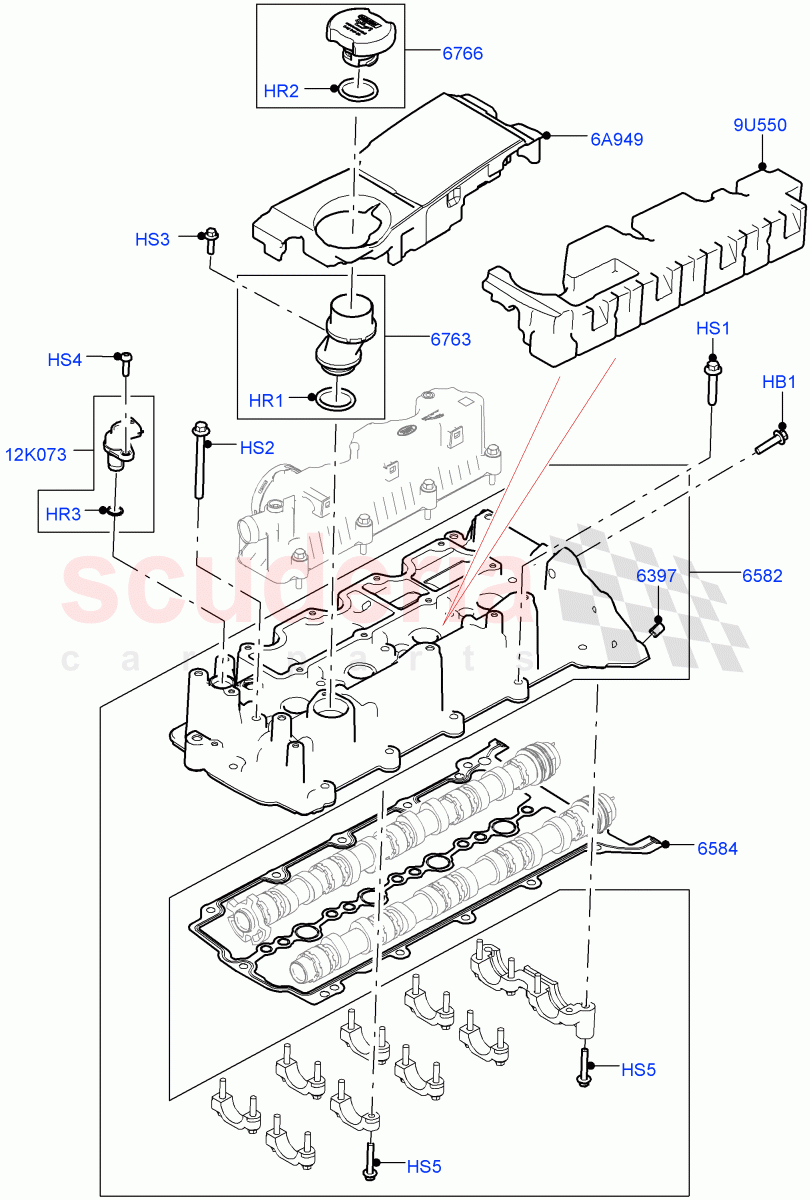

Cylinder Head Cover (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR074133
BOLT
M10 X 30MM 		- 3 Enquire
HR1 LR075631
O-RING
FILLER, 		- 1 Enquire
HR2 LR073781
O-RING
Filler Cap, 		- 1 Enquire
HR3 LR095781
O-RING
17.0MM, Camshaft Position Sensor 		- 1 Enquire
HS1 LR073649
SCREW
M8 x 40MM 		- 11 Enquire
HS2 LR073650
SCREW
M8 x 80MM 		- 5 Enquire
HS3 LR073655
SCREW
Hexagonal Head, M6 X 20MM 		- 1 Enquire
HS4 LR073720
SCREW
M6 X 20MM 		- 1 Enquire
HS5 LR073635
SCREW
M6 x 35MM 		- 20 Enquire
6A949 LR091898
COVER - ENGINE TOP
Engine Cover 		- 1 Enquire
9U550 LR082280
COVER - INSULATOR
Camshaft Cover 		- 1 Enquire
12K073 LR074065
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor 		- 1 Enquire
6397 LR000335
DOWEL - PIN 		- 2 Enquire
6582 LR073646
COVER - CYLINDER HEAD 		- 1 Enquire
6584 LR073784
GASKET - CAMSHAFT COVER 		- 1 Enquire
6763 LR082332
PIPE - OIL INLET 		- 1 Enquire
6766 LR073782
CAP - OIL FILLER 		- 1 Enquire
