Name: Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)
Rating: 4.6 (1 reviews)

Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL...

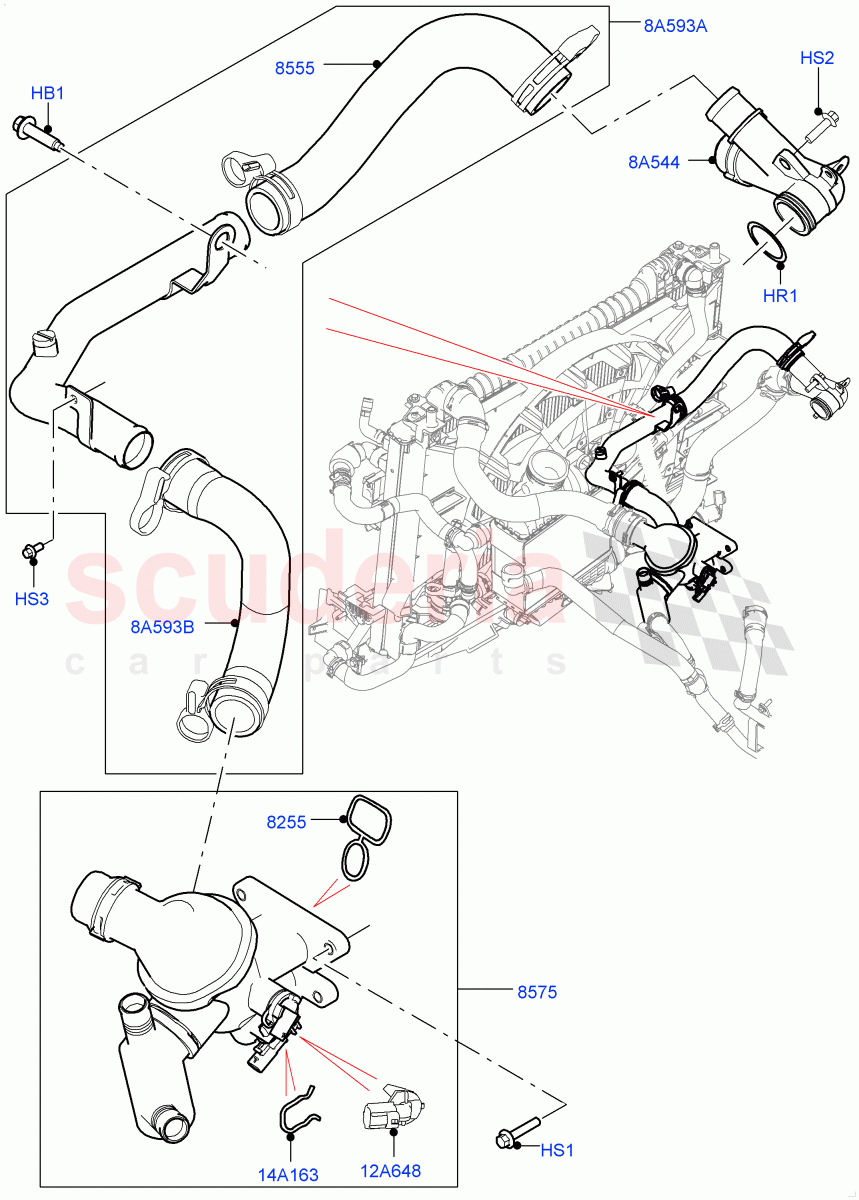

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR082795	BOLT - HEX.HEAD	$3.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097266	O-RING	$13.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073736	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018267	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105592	SEAL - THERMOSTAT	$8.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR081665	TUBE - BY-PASS	$35.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081683	THERMOSTAT AND HOUSING	$123.55	To Order
	LR105974	THERMOSTAT	$136.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR085514	CONNECTION - WATER OUTLET	$28.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081684	TUBE - BY-PASS	$129.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081670	HOSE - WATER BY-PASS	$55.88	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR082795	BOLT - HEX.HEAD	LR082795 BOLT - HEX.HEAD Hexagonal Head, M12 X 35MM	$3.19	1
HR1	LR097266	O-RING	LR097266 O-RING	$13.36	1
HS1	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM, Thermostat Housing IN STOCK	$2.55	4
HS2	LR073736	SCREW	LR073736 SCREW M8 X 30MM	$1.63	2
HS3	LR018267	SCREW	LR018267 SCREW M6 X 20MM, Torx	$1.19	1
8A544	LR085514	CONNECTION - WATER OUTLET	LR085514 CONNECTION - WATER OUTLET EGR Cooler	$28.13	1
8A593A	LR081684	TUBE - BY-PASS	LR081684 TUBE - BY-PASS	$129.19	1
8A593B	LR081670	HOSE - WATER BY-PASS	LR081670 HOSE - WATER BY-PASS	$55.88	1
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	1
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP	$4.50	1
8255	LR105592	SEAL - THERMOSTAT IN STOCK	LR105592 SEAL - THERMOSTAT Thermostat And Housing Assy IN STOCK	$8.28	1
8555	LR081665	TUBE - BY-PASS	LR081665 TUBE - BY-PASS Tube Water By-Pass	$35.31	1
8575	LR081683	THERMOSTAT AND HOUSING	LR081683 THERMOSTAT AND HOUSING Thermostat And Housing With Sensor / To: JA709890	$123.55	1
8575	LR105974	THERMOSTAT IN STOCK	LR105974 THERMOSTAT Thermostat And Housing With Sensor / From: JA709891 IN STOCK	$136.01	1
