Air Conditioning Condensr/Compressr (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Air Conditioning Condensr/Compressr (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110151L BOLT $3.85 IN STOCK
Photo Part No Description Price (each) Stock
FB110106 BOLT $1.62 IN STOCK
Photo Part No Description Price (each) Stock
FB108186M BOLT $4.47 IN STOCK
Photo Part No Description Price (each) Stock
LR018706 SCREW $1.00 To Order
LR000033 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
LR018707 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
JUU500110 SEAL $9.66 IN STOCK
Photo Part No Description Price (each) Stock
LR018405 CONDENSER $637.57 IN STOCK
Photo Part No Description Price (each) Stock
LR014536 COMPRESSOR $1,673.73 To Order
Photo Part No Description Price (each) Stock
JRJ500020 DRYER - COMPRESSOR AIR $231.82 To Order
Photo Part No Description Price (each) Stock
JPD500140 BRACKET - COMPRESSOR $29.86 IN STOCK
View All

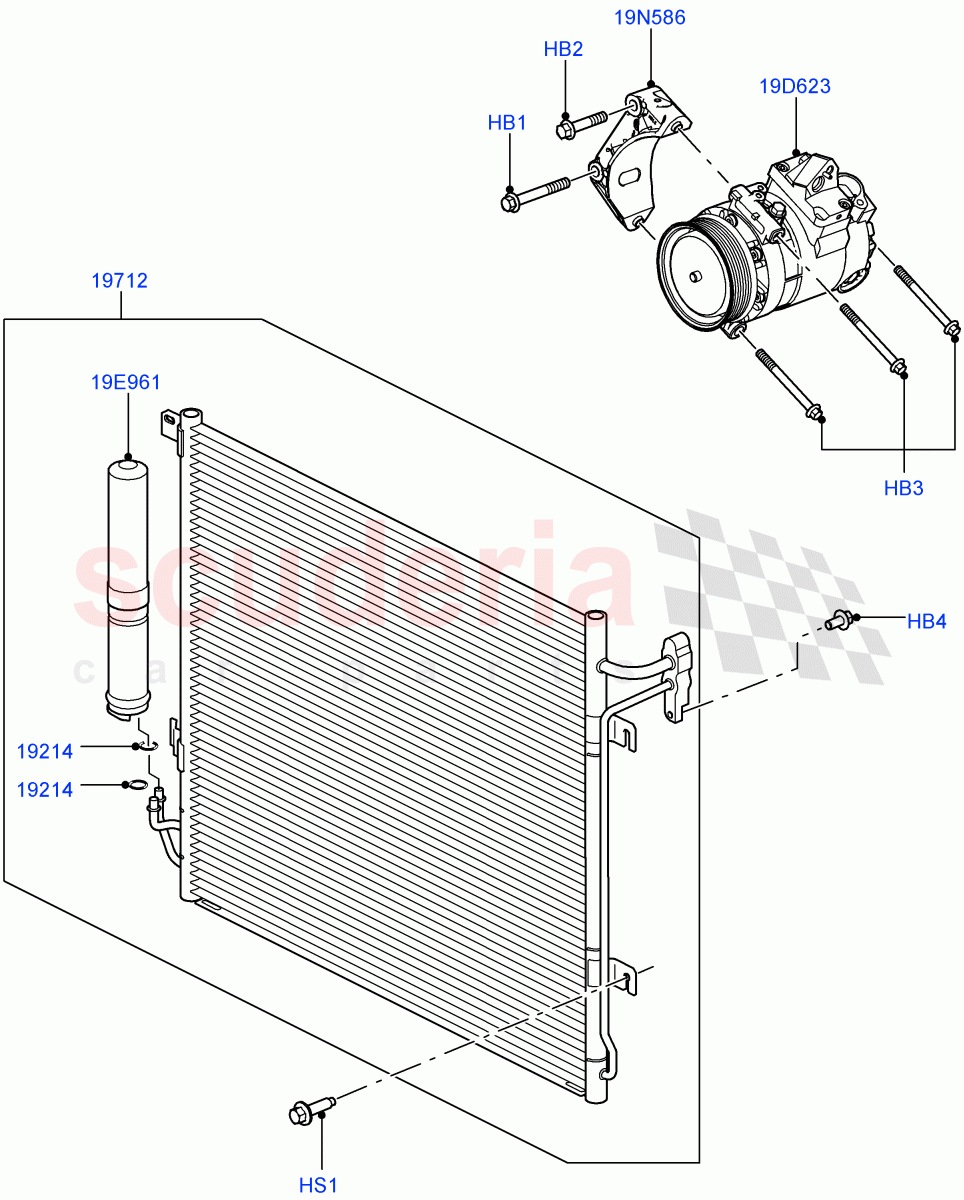

Air Conditioning Condensr/Compressr (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110151L
BOLT
Bracket, Lower, M10 x 75MM / From: AA000001
IN STOCK 		$3.85 1
HB2 FB110106
BOLT
Bracket, Hexagonal Head, M10 X 50MM, Upper / From: AA000001
IN STOCK 		$1.62 1
HB3 FB108186M
BOLT
M8 X 90MM / From: AA000001
IN STOCK 		$4.47 3
HB4 LR018706
SCREW
Attaches To Condenser, M6 x 12MM / From: AA000001 / To: BA281715 		$1.00 1
HB4 LR000033
SCREW
Attaches To Condenser, Hexagonal Head, M6 x 12MM / From: BA281716 		$0.50 1
HS1 LR018707
SCREW
6X20, Hexagonal Head / From: AA000001 		$1.00 4
19D623 LR014536
COMPRESSOR
From: AA000001 		$1,673.73 1
19E961 JRJ500020
DRYER - COMPRESSOR AIR
From: AA000001 		$231.82 1
19N586 JPD500140
BRACKET - COMPRESSOR
From: AA000001
IN STOCK 		$29.86 1
19214 JUU500110
SEAL
From: AA000001
IN STOCK 		$9.66 2
19712 LR018405
CONDENSER
With Dryer / From: AA000001
IN STOCK 		$637.57 1
